Fanless Industriall Mini PC -Edge PC | Intel Pentium N4200 Quad Core | 4GB LPDDR4 128GB Industrial mSATA SSD + 64GB eMMC | Dual LAN | Dual Mini-DP

FANLESS USFF INDUSTRIAL EDGE COMPUTER

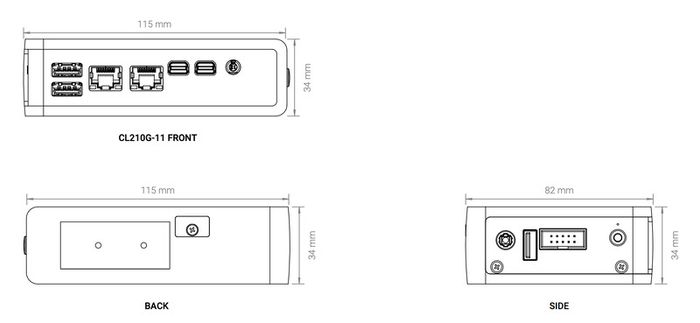

You are looking at an one of the smallest fanless industrial computers on the market. Measuring just 115 x 82 x 34 mm, this ultra-compact edge gateway packs a quad-core Intel Pentium N4200 processor, 4GB of soldered LPDDR4 memory, a 128GB Transcend industrial-grade mSATA SSD (TS128GMSA452T2) and 64GB of onboard eMMC storage into a completely sealed, ventless aluminium enclosure — 192GB of total solid-state storage. Built on Hardshell Fanless Technology, it has no moving parts whatsoever — no fan, no spinning drive — making it ideal for continuous 24/7 operation in space-constrained, dusty, or vibration-prone environments.
This unit has been tested and is fully functional. Power adapter included — plug in and install your OS of choice.

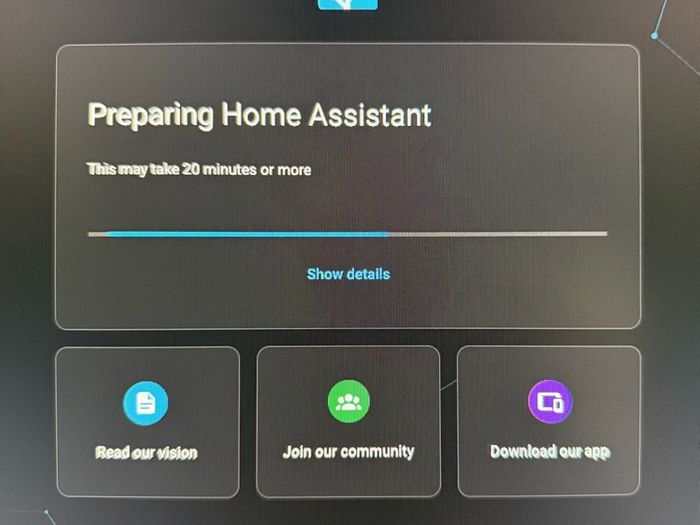

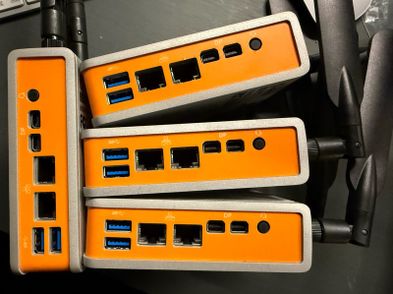

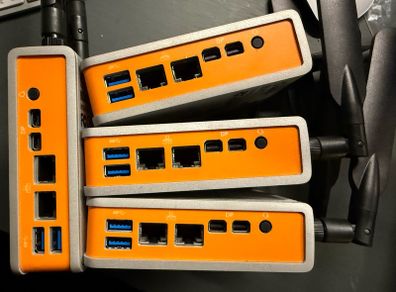

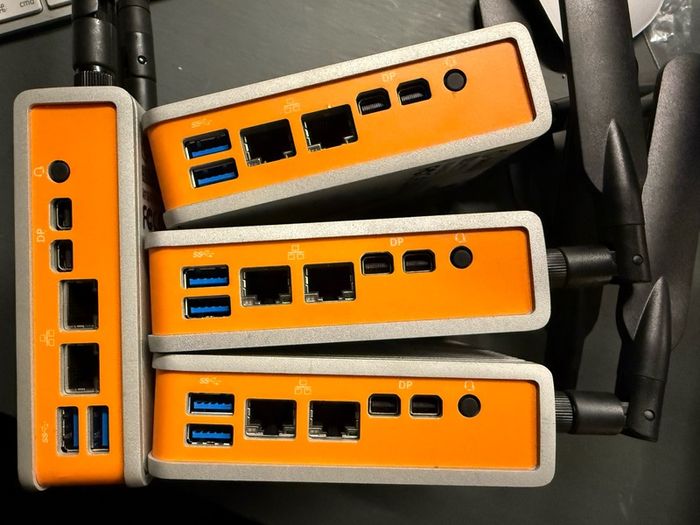

3 units available - Home Assistant could be preinstalled on request or pFsense/OpenSense firewall.

Shipment available for extra €22 at buyer expense.

• Intel Pentium N4200 Quad Core — Apollo Lake, 1.1GHz base / 2.5GHz burst, 6W TDP, extremely low power consumption

• 128GB Transcend MSA452T2 Industrial mSATA SSD — installed in mSATA slot. SATA III 6Gb/s, 3D TLC NAND, DRAM cache, 560MB/s read / 520MB/s write, rated -20 to 75 degrees C, Corner Bond vibration resistance — purpose-built for industrial embedded use

• 64GB eMMC onboard storage — also available as secondary storage or recovery volume — total 192GB solid-state storage

• Expandable storage — MicroSD card slot for additional capacity

• Dual Gigabit Ethernet (Realtek RTL8111G x2) — ideal for IoT gateway, dual-LAN routing, pfSense, OPNsense

• Dual Mini-DisplayPort — supports two independent 4K displays (up to 3840x2160 @ 60Hz)

• 3x USB ports — 2x USB 3.0 (front) + 1x USB 2.0 (rear)

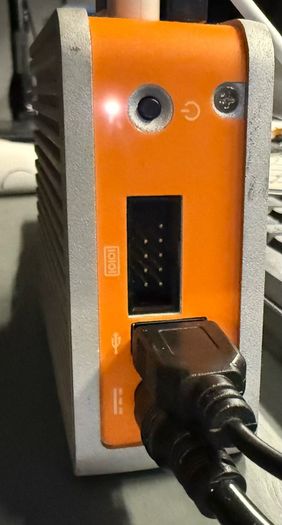

• RS-232 COM port — for serial device communication, industrial sensor integration

• Audio jack — mic-in / line-out (front panel)

• Intel Platform Trust Technology (PTT/fTPM 2.0) — hardware security without a discrete TPM chip

• DIN Rail, VESA and Wall mountable — installs anywhere, including inside control panels and behind displays

• 12V DC input — runs from standard 12V power adapters or automotive/industrial DC supplies

• Intel HD Graphics 505 — capable of smooth 4K video playback for digital signage

• x86 architecture — full Windows and Linux compatibility, no ARM compatibility headaches

• Auto Power On (AT mode) — boots automatically when power is applied, no keyboard needed


WHAT CAN THIS BE USED FOR?
The CL210G-11's tiny footprint, sealed construction and dual-LAN make it a natural fit for:

IoT & Edge Computing

• Industrial IoT gateway — connects sensors, PLCs and fieldbus devices to cloud platforms (AWS IoT, Azure IoT Hub, MQTT brokers)

• Industry 4.0 edge node — local data pre-processing before cloud upload

• OPC-UA server or MQTT broker for factory automation

• Environmental monitoring station — temperature, humidity, CO2 logging hubs
Networking & Security

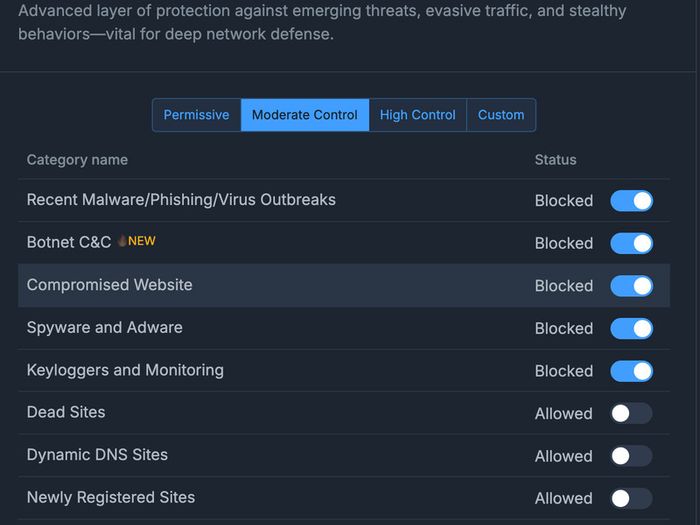

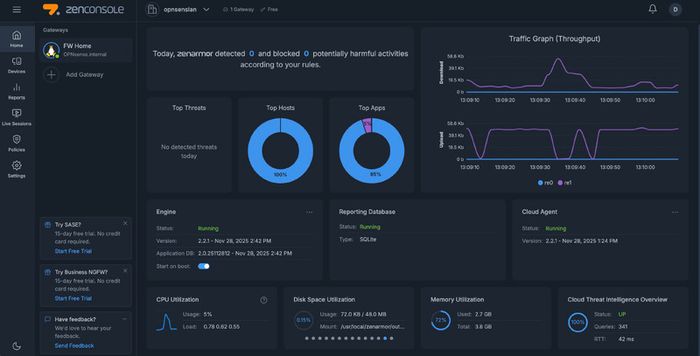

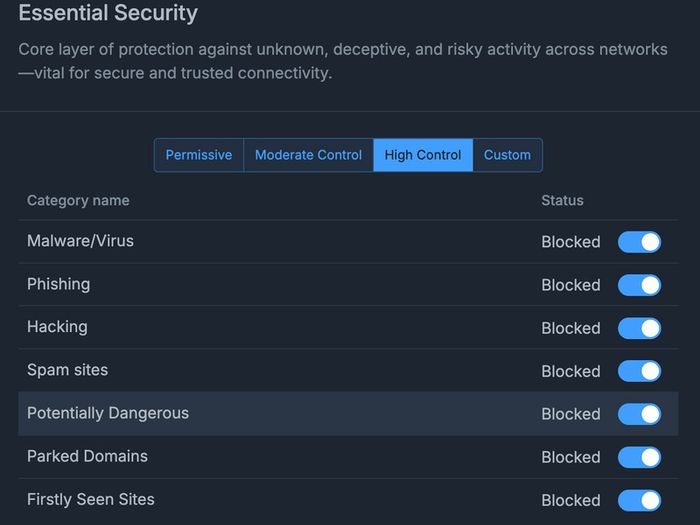

• pfSense or OPNsense firewall/router — dual LAN makes this ideal for a dedicated firewall appliance

• Network access point controller (Unifi, OpenWrt)

• VPN concentrator or proxy server — low power, always-on

• VLAN gateway or network segmentation device
Digital Signage & Display

• 4K-capable digital signage player — lobbies, reception areas, retail, restaurants, menus

• Kiosk or information terminal — DIN-rail or VESA mountable behind any display

• Video wall controller (up to 3 mirrored displays via DisplayPort 1.2 daisy chain)
Home Automation & Home Lab

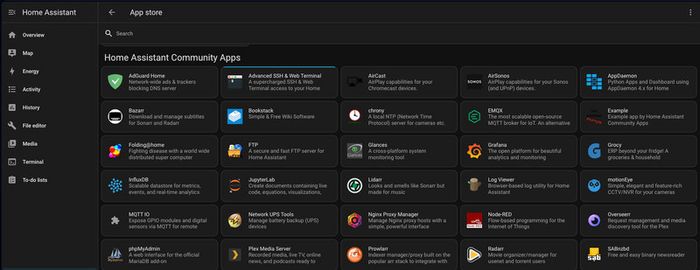

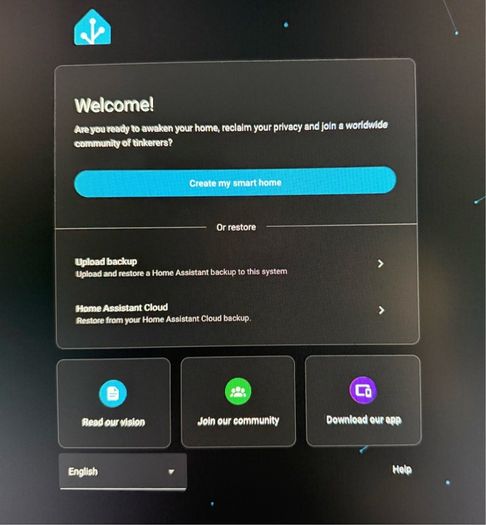

• Home Assistant server — officially supported OS, perfect low-power hub for smart home control

• Node-RED, InfluxDB, Grafana stack for home monitoring and automation

• Lightweight Docker host for self-hosted services (Pi-hole, Unbound, Wireguard)

• Always-on low-power server: ~6-12W, cheaper to run than any full-size PC

• Thin client or terminal server client for remote desktop environments
Industrial & Embedded Applications

• Machine HMI (Human-Machine Interface) display controller

• CNC or robotics data logger via RS-232 COM port

• DIN-rail mounted control panel PC inside electrical enclosures

• In-vehicle or mobile computing (12V DC direct compatible)

• Vending machine or POS controller

CONDITION & WHAT'S INCLUDED

Condition: Used — Tested & Fully Functional

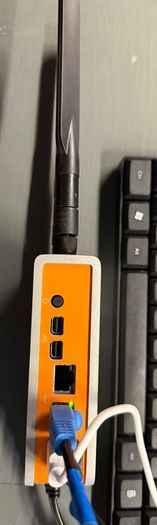

• OnLogic CL210G-11 fanless USFF industrial PC — fully tested and working

• 12V DC power adapter — correct OnLogic OEM supply

Note: No operating system pre-installed. 64GB eMMC is empty / cleared. Buyer installs preferred OS. Compatible with Windows 10/11, Ubuntu, Debian, Home Assistant OS and others.

COMPATIBILITY & SOFTWARE

• Windows 10 / Windows 11 (64-bit) — Intel drivers available from OnLogic support site

• Ubuntu 20.04 / 22.04 LTS — excellent driver support out of the box

• Debian, Rocky Linux, Fedora — all supported

• Home Assistant OS — officially tested and working on CL200 series

• pfSense / OPNsense — dual Intel NICs fully supported

• OpenWrt x86 — for router/firewall deployments
