Description

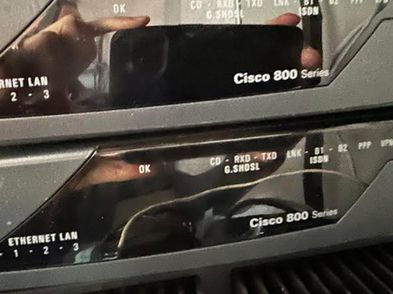

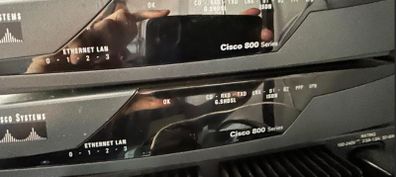

2 X Cisco 878 routers IOS 15.2.

€50 for the pair or €30 each

https://www.router-switch.com/pdf2html/pdf/cisco878-sec-k9-datasheet.pdf

CISCO > ROUTERS
Cisco 800 Series Routers
Features and Benefits of the Cisco 870 Series
Feature Benefits
Increased Performance to Run
Concurrent Services
The performance in a Cisco 870 Series router allows customers to take advantage of broadband
network speeds while running secure, concurrent data, voice, and video services
Enhanced Security Integrated Stateful Inspection Firewall for network perimeter security, high-speed IPSec 3DES and
AES encryption for data privacy over the Internet, IPS, and antivirus support through NAC to enforce
security policy in a larger enterprise or service provider network
4-Port 10/100 Mbps Managed Switch Allows multiple devices to be connected in a small office, with the ability to designate a port as
network DMZ
Optional external PoE adapter for powering IP phones, to avoid individual power supplies or power
injectors
VLANs allow for secure segmentation of network resources
Optional 802.11b/g WLANs with
Support for Multiple Antennas
Broadband router with secure WLAN in a single device
Diversity antennas for optimizing coverage in a small office
Options for replaceable external antennas, to get wireless coverage in areas away from where the
router is located
Cisco SDM and Cisco IOS Software for
Remote Management
Using smart wizards and task-based tutorials, Cisco SDM helps resellers and customers quickly and
easily deploy, configure, and monitor a Cisco access router without requiring knowledge of the Cisco
IOS Software command-line interface (CLI)
Dial backup and out-of-band management allow IT managers to remotely manage the router at small
office and teleworker sites
Cisco Configuration Express Service supports factory-loaded configurations for high-volume
deployments
Support for the Cisco Configuration Engine enables plug-and-play installations with centralized
configuration management
Cisco IOS Software Features on Cisco 870 Series Routers-Advanced Security Feature Set
(Default)
Routing Protocols and General Router
Features
Routing Information Protocol (RIPv1 and RIPv2)
Layer 2 Tunneling Protocol (L2TP)
Cisco Express Forwarding (CEF) Port Address Translation (PAT)
RFC 1483/2684
Point-to-Point Protocol over ATM (PPoA) (DSL models only)
PPP over Ethernet (PPPoE)
802.1d Spanning Tree Protocol (STP)
Dynamic Host Control Protocol (DHCP) server/relay/client
Access control lists (ACLs)
Generic routing encapsulation (GRE)
Dynamic DNS Support for Cisco IOS
Recommended Number of Users 20
DSL and ATM Features (DSL Models
Only)
ATM Variable Bit Rate/real-time (VBR-rt)
ATM Unspecified Bit Rate (UBR), Constant Bit Rate (CBR), and Variable Bit Rate/non-real-time (VBRnrt)
ATM Operation, Administration, and Maintenance (OAM) Support for F5 Continuity Check; segment
and end-to-end loopback; and Interim Local Management Interface (ILMI) support
10 virtual circuits
Security Features Stateful Inspection Firewall
Bridging firewall (Cisco 871 only)
NAT transparency
Firewall support for skinny clients
Hardware-accelerated 3DES for IPSec
Hardware-accelerated AES for IPSec
Cisco Easy VPN Client and Server
Go Communications Systems Ltd | Created: 02/11/2020 Page 1 of 4
IPSec 3DES termination/initiation
IPSec passthrough
Point-to-Point Tunneling Protocol (PPTP) passthrough
L2TP passthrough
802.1x
Secure HTTP (HTTPS), FTP, and Telnet authentication proxies
10 VPN Tunnels
Advanced Application Inspection and Control
E-mail Inspection Engine
No Service Password Recovery
HTTP Inspection Engine
System Logging-EAL4 Certification Enhancements
Easy VPN Remote Web Based Activation
QoS Features Weighted Fair Queuing (WFQ)
Class-Based WFQ (CBWFQ)
Low-Latency Queuing (LLQ)
Class-Based Traffic Shaping (CBTS) (Cisco 871 only)
Class-Based Traffic Policing (CBTP) (Cisco 876, 877, and 878 only)
Class-Based QoS MIB
Prefragment before encryption
TX ring adjustment
VC bundling
Policy-based routing (PBR)
Per-VC queuing
Per-VC traffic shaping
Management Features Cisco SDM
Management of LAN switch ports
Cisco Configuration Express
Cisco Configuration Engine support
DSL firmware update from Flash
Cisco Service Assurance Agent (SAA)
Telnet, Simple Network Management Protocol (SNMPv3), CLI, and HTTP management
RADIUS and TACACS+
High-Availability Features Virtual Router Redundancy Protocol (VRRP) (RFC 2338)
Hot Standby Router Protocol (HSRP)
Out-of-band management with external modem through virtual auxiliary port
Dial backup with external modem through virtual auxiliary port
ISDN S/T port for out-of-band management (Cisco 876 and 878 only)
VLAN Support for 2 VLANs with Base Image. One VLAN dedicated to DMZ.
Cisco IOS Software Features on Cisco 870 Series Routers-WLAN Features (Available with
Wireless Option)
WLAN Hardware 802.11b/g
Automatic rate selection for 802.11b/g
RP-TNC connectors for field-replaceable external antennas (antenna options for extended coverage)
Antenna diversity
Indoor range: 1 Mbps at 320 ft
WECA interoperability
Default antenna gain: 2.2 dBi
PoE (optional external adapter for Inline power) for IP phones or external wireless access points
WLAN Software Features Maximize throughput or maximize range option
Software-configurable transmit power
Universal Client Mode (allows radio to connect router to external WLAN network)
Wireless Multi Media Certification (WMM)
SSID Globalization
WLAN Security Features 802.1
802.11i
Wi-Fi Protected Access (WPA) & AES (WPA2)
EAP Authentication: Cisco LEAP, PEAP, EAP-TLS, EAP-FAST, EAP-SIM, EAP-MD5, EAP-TTLS
Static and dynamic Wired Equivalent Privacy (WEP)
Temporal Key Integrity Protocol (TKIP)/SSN [Temporal Key Integrity Protocol/Simple Security Network
encryption
MAC authentication/filter
User database for survivable local authentication using LEAP & EAP-FAST
Configurable limit to the number of wireless clients
Configurable RADIUS accounting for wireless clients
PSK (Pre Shared Keys) (WPA-SOHO)
SSIDs 10
Wireless VLANs 10
Encrypted Wireless VLANs 4
Go Communications Systems Ltd | Created: 02/11/2020 Page 2 of 4
MBSSIDs 2
Cisco IOS Software Features on Cisco 870 Series Routers-Advanced IP Services Feature
Set (Optional Software Upgrade)
Routing Protocols Open Shortest Path First (OSPF)
Border Gateway Protocol (BGP)
Enhanced Interior Gateway Routing Protocol (EIGRP)
General Router Features 4 802.1q VLANs on Advanced IP Services IOS image
Web Content Caching Protocol (WCCP)
Demilitarized Zone (DMZ)
ARP-Auto Logoff
Security Features Intrusion detection system/intrusion prevention system (IDS/IPS)
Dynamic Multipoint VPN (DMVPN) (multipoint GRE and Next Hop Resolution Protocol [NHRP])
Tunnel-less Group Encrypted Transport (GET VPN)
Lock and Key
URL filtering: Websense and N2H2
Digital certificates (PKI)
Network Admissions Control (NAC)
IPv6 Features IPv6 addressing architecture
IPv6 name resolution
IPv6 statistics
IPv6 translation-transport packets between IPv6-only and IPv4-only endpoints
ICMPv6
IPv6 DHCP
QoS Features Priority and custom queuing
Class-Based Weighted Random Early Detection (CBWRED)
Network-Based Application Recognition (NBAR)
Link Fragmentation and Interleaving (LFI)
Resource Reservation Protocol (RSVP)
RTP Header compression (Real Time Protocol)
Differentiated Services (DiffServ)
QoS Preclassify & Pre-fragmentation
Class-Based Marking (CBM)
Multicast Features Protocol Independent Multicast (PIM) Sparse Mode
PIM Sparse-Dense Mode
Auto Route Processing (Auto-RP)
High-Availability Features Multigroup HSRP (MHSRP)
Cisco IOS Software Features on Cisco 870 Series Routers-Advanced Enterprise Services
Feature Set (Optional Software Upgrade on Cisco 876 Only)
High-Availability Features Integrated dial backup for ADSL using ISDN S/T port
Primary ISDN WAN
ISDN Leased Line at 128Kbps
Hardware Specifications
Receive Sensitivity
Receive Sensitivity 802.11b
-94dBm @ 1 Mbps
-93dBm @ 2 Mbps
-92dBm @ 5.5 Mbps
-90dBm @ 11 Mbps
802.11g
-92dBm @ 6 Mbps
-90dBm @ 9 Mbps
-89dBm @ 12 Mbps
-87dBm @ 18 Mbps
-85dBm @ 24 Mbps
-81dBm @ 36 Mbps
-76dBm @ 48 Mbps
-73dBm @ 54 Mbps
Maximum Transmit Power Note: Maximum power setting subject to changes by channel & by region depending on regulations
802.11b Average: 80mW (19dBm), Peak: (FCC) 245mW (23.9dBm)
802.11g Average: 50mW (17dBm)
Go Communications Systems Ltd | Created: 02/11/2020 Page 3 of 4
Physical Dimensions and Weight
Physical Dimensions and Weight Product dimensions:
H x W x D = 2.00 x 10.25 x 8.50 in. (50.8 mm x 260.4 mm x 215.9.9 mm) (nonwireless models)
H x W x D = 2.00 x 10.25 x 9.13 in. (50.8 mm x 260.4 mm x 231.9 mm) (wireless models with antenna
connectors, excludes antennae)
Weight: 2.10 lb (0.954 kg) maximum
Optional external PoE adapter dimensions:
H x W x D = 1.13 x 4.00 x 10.25 in. (28.9 x 101.6 x 260.4 mm) (cables included)
H x W x D = 1.13 x 4.00 x 4.25 in. (28.9 x 101.6 x 108 mm) (cables not included)
Weight = 0.32 lb (0.143 kg)
Power Product power specifications:
AC input voltage: 100 to 240 VAC
Frequency: 50 to 60 Hz
Maximum output power: 26W
Output voltages: 5 and 12V
Optional external Inline PoE adapter specifications:
802.3af compliant (Mid-span power delivered via pins 4,5,7 & 8)
AC Input Voltage: 100 to 240 VAC
Frequency: 50 to 60 Hz
AC Input Current: 1A maximum
Maximum output power: 80W
Output voltage: 48 VDC
Optional external Inline PoE adapter specifications:
802.3af compliant (Mid-span power delivered via pins 4,5,7 and 8)
Approvals and Compliance UL 1950/ CSA 950-95, Third Edition
IEC 950:Second Edition with Amendments 1, 2, 3, and 4
IEC/EN 60950-1, 1st edition
CS-03, Canadian Telecom Requirements
FCC Part 68 U.S. Telecom Requirements
AS/NZS 3260:1996 with Amendments 1, 2, 3, and 4
ETSI 300-047
TS 001 with Amendment 1
EMI
AS/NRZ 3548:1992 Class B\
CFR 47 Part 15 Class B
EN60555-2 Class B
EN55022 Class B
VCCI Class II
ICES-003, Issue 2, Class B, April 1997S
IEC 1000-3-2
UNI 3.1/4.0 PVC
ITU G.991.2 G.SHDSL
Environmental Operating Range Nonoperating temperature: -4 to 149°F (-20 to 65°C)
Nonoperating humidity: 5 to 95 percent relative humidity (noncondensing)
Nonoperating altitude: 0 to 15,000 ft (0 to 4570m)
Operating temperature: 32 to 104°F (0 to 40°C)
Operating humidity: 10 to 85%, relative humidity (noncondensing)
Operating altitude: 0 to 10,000 ft (0 to 3000m)
