65cm Shark S1 Motorised Slider + NMX controller for Timelapse + Accessories (sale in parts possible)

Description

Up for sale is the a custom built motorised slider for serious time lapse photographers in mind. It was meant to be my primary set up for all time lapse sessions planned, but right after covid break up I switched to a lighter and even more portable system and this one has been collecting dust for too long now, hence the ad

Original backbones slider which was designed to be operated by hand using a flywheel, is the back then well known Shark S1 slider, see here:
https://www.ifootagegear.com/products/shark-slider-s1-bundle

YouTube link can be checked here:
https://www.youtube.com/watch?v=91Ne-u269qU

I bought the slider in its full glory from another adverts member for about €350 back then (lack of use if I remember correctly), in mint condition. Decided to turn it into 1-axis (slide left to right and vice versa) motorised system. By drilling 2 small holes into one of the blocks I was able to fit a custom hard plastic housing with additional flywheel for a stepper motor and mini belt inside. This procedure cost me around €100, sourced from a German eBay seller.

In order to achieve the slide motion a well known motion controller from Dynamic Perception called NMX was purchased by me from the following source, paid well over €400 (US import tax and VAT etc.), check the source here:
https://www.dynamicperception.com/Digital-NMX-timelapse-and-video-motion-controller-p/dp-nmx1.htm

Google Play store app called NMX allows to control the slider via Bluetooth (with location/GPS enabled as well). 1m long rubber protected cable connects the stepper motor (Hanpose 17HS8401 type) to one of the 3 connection ports of the controller to communicate between each other. A 2.5mm jack cable from NMX controller connects to mirrorless/DSLR camera's respective port to operate shoot-move-shoot time-lapse sequence (for video footage this cable is not necessarily required as the camera records on its own).

IMPORTANT NOTE: due to the nature of the motorised setup and stepper motor gear, there always will be an audible noise/whizz sound running in the background. This is a non-issue in case of time-lapse, where the final footage always gets creator's own music choice, however if the live/actual background sound is a must, this custom motorised slider might not be for you!

A proper power supply is needed to provide plenty of juice for both the NMX controller and stepper motor combined. Hereby I offer 2 options that are both included in the bundle:
1) MaxOak 50000mAh DC powerbank, see here:
https://www.amazon.co.uk/MAXOAK-50000mAh-Portable-External-Notebook/dp/B00YP823NA

Comes with neoprene pouch case, charging adapter with 3pin mains cable and extra extended over 1.5m long 5.5x2.1mm cable. Current capacity sits at about 50% (still plenty if you ask me), as it has depleted since I bought it 4 years ago.
In case user has access to 220V socket, a power adapter with stand and plenty of connectivity (USB 2.0, USB 3.0, type C PD port) is provided as well

2) Litionite brand 25000mAh powerbank:
https://www.amazon.co.uk/s?k=litionite+25000mah&i=electronics&crid=1RABGPBE1Y2EM&sprefix=litionite+25000mah%2Celectronics%2C46&ref=nb_sb_noss

Includes neoprene pouch case. Also about 50% capacity left after 4 years of usage. Please note the DC port doesn't operate at above 5V, but all other ports (USB 3.0, type C port) work very well. Great news is there will be a 5V to 12V DC 5.5x2.1mm to USB A adapter cable included, which allows having the NMX controller connected to USB 3.0 port. This is very handy if portability/going lightweight is preferred by the user🤝

The slider itself is currently setup at nearly 65cm full travel length, which consists of 2x carbon fibre rods with central bottom platform offering plenty of tripod mount options. A small made of hard plastic flexible arm can be screwed onto the platform and fits the NMX controller unit, this allows for steady and uninterrupted cables operation during the slide movement.

Also there are already 2x arca swiss plates attached to each block's bottom to accommodate tripods for extra stability on each end. Mirrorless/DSLR camera with lens is mounted onto the central platform, an extra square shaped 2-step/ladder like aluminium plate is included to provide even more flexibility/angle options to play with. Or a basic video oriented fluid head comes in the bundle to be used instead.

There are many more extras included in the bundle worth the buyer's while:
1) extra spare parts for the custom plastic housing incl. screws, mini belt, Allen keys, mini flywheels (plastic and aluminium) etc.
2) extra spare stepper motor (have no details, but fully tested and works well)
3) free pouches/bags that fit all of the items mentioned above
4) for Nikon full frame F/Z mount users only: DC2 cable to 2.5mm jack to fit the NMX controller. Extra bonus given is EN-EL15 dummy battery adapter, which works very well off the QC 3.0 (USB 3.0) port on the Litionite powerbank

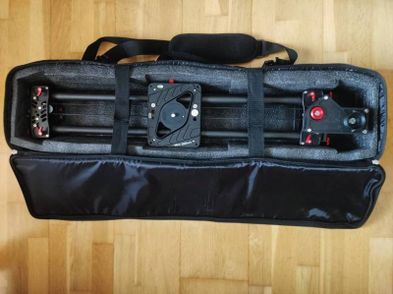

5) MOVO brand pouch bag with belt strip, this bag fits the fully assembled slider in its 65cm length perfectly. Other accessories like the NMX controller with cables, powerbank, spare belt and other bits and pieces will squeeze in just fine.
Also still have the original Shark pouch bag lying around, while it's in well used condition I can hand it over to the buyer, no bother.

All in all, this 1-axis motorised slider is not the newest or lightest by today's timelapse industry standards. But make no mistake, it still is a great device for enthusiasts or semi-professional timelapsers out there. It is extremely important for a genuine buyer to personally inspect and fully test this rig with their own camera setup. I'm more than happy to provide a brief tutorial of its operation and performance, if needed.

Given the overall near mint condition (used very little), plenty of accessories, original spare parts and much more, I'm looking at €300 cash or Revolut.
No price negotiations please

I'm open to swap offers as well. Estimated value worth €300. Serious buyers are welcome🤝

Also I'm selling in parts/separately, if there’s an interest in any particular item(s)! Have a look at rich gallery above

Thank you for reading and watching!

Shipping: CollectionPost/Courier
Payment: CashPaypal
