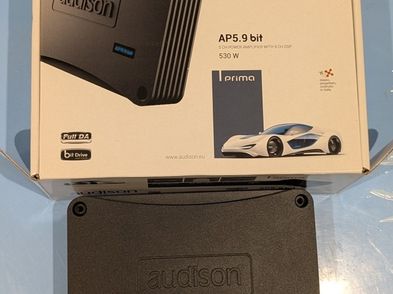

Audison AP5.9 bit 5 channel amp
Description
Used but in very good condition Audison ap 5.9 DSP amplifier.
Technical specifications:
Mains voltage: 7.5 ÷ 15 VDC
No-load current: 1.5 A
switched off: <0.04 mA
Power consumption at max. Music performance @ 14.4 V: 30 A
Remote input: 7 ÷ 15 VDC (1 mA)
Remote output: 11 ÷ 15 VDC (200 mA)
Protection: 30 A
Dimensions: 198 mm x 45.50 mm x 134 mm
Weight: 1.5 kg
Amplifier Features:
Distortion - THD (1k Hz @ 4Ohm): 0.05%
Bandwidth (-3 dB): 10 ÷ 22k Hz
S / N ratio (A weighted @ 1V): 95 dBA
Damping factor (1k Hz @ 4Ohm):> 70
Input sensitivity: 2 ÷ 15 V RMS
Input impedance: 15k ohms
Minimum load impedance: 5CH - 2Ohm / 5CH - 4Ohm
Rated Power (RMS): 5 Ch @ 4 Ohms: 20 W x 2 - 50 W x 2 - 140 W x1 / 5 Ch @ 2 Ohms: 35 W x 2 - 85 W x 2 - 280 W x1
DeliveryPost/CourierTo be arranged PaypalTo be arranged
Asking Price: €320
No swaps
