Condition:
New
Features:

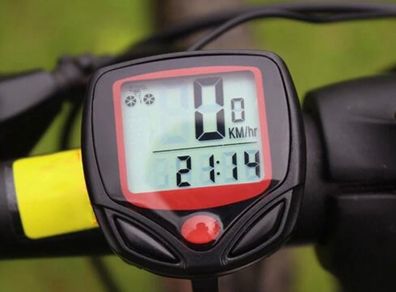

This Bike Computer Odometer Speedometer has many useful functions.
It is functioned as tracking your training progress in real time.
Functions:
SDP : CURRENT SPEED
ODO : ODOMETER
DST : TRIP DISTANCE
MXS : MAXIMUM SPEED
AVS : AVERAGE SPEED
TM : ELAPSED TIME
CLK : CLOCK (12H/24H)
SCAN
\"+\"\"-\" COMPAPATOR
SETTING SPEED SCALE(KM/H.M/H)
SETTING TYRE CIRCUMFERENCE:(0MM-9999MM)
FREEZE FRAME MEMORY
AUTO : ON/OFF
Installation Tips:
1. Mount the meter head to the handlebar;
2, Install AG13 button battery (Not Included)
3, Initialization code table data, generally only need to set the tire circumference a parameter can be used normally;
3. Insert the meter head into the head chute;
4. Install the sensor on the front fork, and the sensor head is facing the spoke;
5, The induction magnet is mounted on the spokes, aligned with the induction head, about 5 mm apart;
6. Secure the cable with a nylon cable tie;
7. Check if the above header holder, sensor and induction magnet are installed firmly.
Note:Sensing distance of the probe and the magnet holder 5-10mm
Specifications:
Net weight:67g
Package weight:77g
Color:Black+Red
Package Included:
1 x Bike computer console
1 x Wheel magnet
1 set x Cable tie
Battery included
