Description

Condition: New

Description

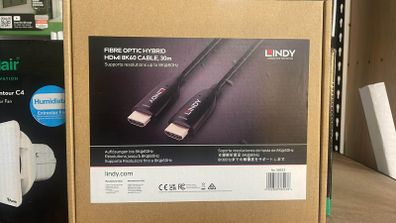

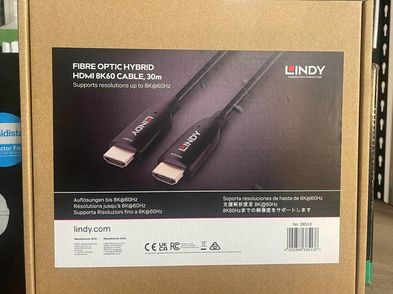

_Combines copper and fibre optic cable for a hybrid, long distance HDMI connectivity solution
Supports resolutions up to 4K@120Hz, 8K@60Hz
HDR formats including Dolby Vision & HDR10+
Flexible and robust cable structure for any kind of installations
2-Year Warranty
Lindy_s range of Fibre Optic Hybrid cables are a professional solution for extending HDMI signals over longer distances. Combining the flexibility and high EMI & RFI resistance of fibre optic cable with standard copper cabling, these hybrid cables are ideal for use in critical AV setups, commercial displays

Technical details

Connectors
Connector A: HDMI Type A (Male)
Connector B: HDMI Type A (Male)
Housing Material: PVC
Connector Plating: Gold Plated
Pin Construction: Gold Plated
Pin Plating: Gold Plated
Dimensions (approx.) WxDxH: HDMI Connector: 20.2x50.5x11mm (0.8x1.99x0.43in)

Length: 30m (98.42ft)
Standard: 2.1
Colour: Black
Type: Round
Jacket Diameter: 4.4mm (0.17in)
Jacket Material: PVC
Conductor Material: Fiber and Copper
Conductor Gauge: 23AWG
Shielding: -

Specifications
Supported Bandwidth: 48Gbps
Maximum Resolution: 7680x4320@60Hz 4:2:0 10bit, 3840x2160@120Hz 4:4:4 10bit
Nominal Attenuation: _10dB/km@850nm, _8dB/km@1300nm
Minimum Bend Radius: 50mm (1.97in)
Operating Temperature: -10°C - 60°C (14°F - 140°F)
Storage Temperature: -20°C - 70°C (-4°F - 158°F)

Certificated: CE, UKCA, FCC, RoHS, REACH & California Proposition 65
