Description

Condition: New

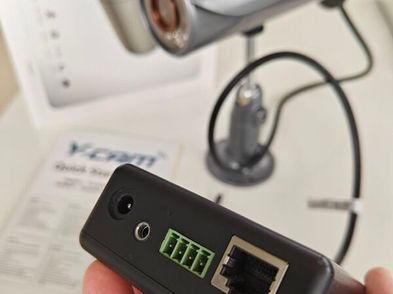

Y-CAM Bullet HD CCTV camera new + spare used camera

Technical Specifications

Product Code - YCBLHD5

Camera

Image device 1/3" CMOS

Resolution 1280x720 (HD 720p)

Pixels 921,600

White Balance, Exposure, Gain - Auto

Viewing angle - Horizontal: 64°, Vertical: 36°

Focal length - f=4.2mm

Aperture - F2.0

Min.llumination - 0.5 Lux (0 Lux in night vision mode)

Infrared LED - 12

Night Vision Distance - 12 to 15m

IR Cut Filter

Image compression - H.264, MPEG-4, MJPEG

Max. frame rate - 30fps @ 1280x720

Audio compression - AAC, AMR (4.75-12.2Kbps), G.726 (40/32/24/16Kbps)

Built-in microphone - Electret Condenser Microphone

Network

Authentication - 2 levels, up to 64 users

Network protocols - TCP, UDP, IP, ARP,ICMP, DHCP, DNS, HTTP, FTP, SMTP, NTP, UPnP,DDNS

Stream type - HTTP, RTSP/RTP/RTCP, 3GPP, ASF

Network connection - Ethernet (10BASE-T/100BASE-TX)

Power over Ethernet (PoE) - 802.3af

Wireless LAN

Wireless technology - IEEE802.11b/g/n

Frequency - 2.412-2.462GHz (40 MHz-wide channel - 400ns Gl)

Transmission speed - Auto Switch up to 108Mbps (1 Spatial Stream)

Security - WEP (64/128 bit), WPA-PSK (AES/TKIP), WPA2-PSK (AES/TKIP)

External Ports

SD Slot - microSD card (16Mb-16Gb Capacity)

Digital I/O-1 input, 1 output

General

Power requirements - DC 12V

Power consumption - 3.5W

Operating temperature - -5 to +45°C
