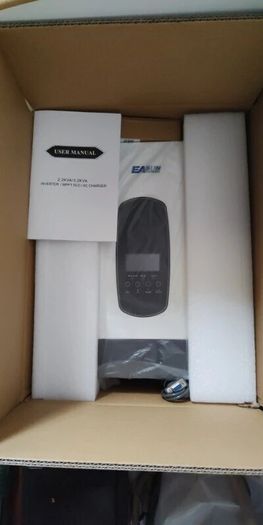

12V Hybrid Solar Inverter 1.8KW MPPT Pure Sine Wave 230VAC

Condition: New

Hybrid Solar Inverter 1.8KW MPPT 12V Pure Sine Wave 230VAC Max PV 450V Built in 80A MPPT Solar Charge Controller


Good for power outages or to reduce your electricity bill by generating electricity using solar panels.

Inverter can charge batteries from ESB or from solar panels so can be used on-grid and off-grid. Good to have as a backup for power outages

For Home, camper van, motor home, mobile home


* Pure sine wave inverter
* Configurable input voltage range for home appliances and personal computers via LCD setting
* Configurable battery charging current based on applications via LCD setting
* Configurable AC/Solar Charger priority via LCD setting
* Compatible to mains voltage or generator power
* Auto restart while AC is recovering
* Overload/ Over temperature/ short circuit protection
* Smart battery charger design for optimized battery performance
* Cold start function



Model: ISolar-SMH-II-2.2KW
Rated Power: 2200VA/1800W

INPUT
Voltage: 230Vac
Selectable Voltage Range: (170Vac~280Vac)±2%；(90Vac-280Vac)±2%
Frequency Range: 50Hz/60Hz (Auto detection)

OUTPUT
AC Voltage Regulation (Batt.Mode): 230VAC±5%
Surge power: 4400VA
Transfer Time: 10ms(for personal computers)/20ms(for home appliances)
Waveform: Pure Sine Wave

BATTERY & AC CHARGER

Battery Voltage: 12VDC
Floating Charge Voltage: 13.5VDC
Over charge Protection: 15.5VDC
Maximum charge current: 60A

SOLAR CHARGER

MAX.PV Array Power: 2000W
MPPT Range Operating Voltage: 55-450VDC
Maximum PV ArrayOpenCircuit Voltage: 450VDC
Maximum Charging Current: 80A
Maximum Efficiency: 98%

PHYSICAL

Dimensions D*W*H(mm): 405x286x98mm
Net Weight(kgs): 4.5kg
Communication Interface: RS232/RS485(Standard)/GPRS/WIFI

OPERATING ENVIRONMENT

Humidity: 5% to 95% Relative Humidity (Non-condensing)
Operating Temperature: -10°Cto55°C
Storage Temperature: -15°Cto60°C



Can be collected in Tullamore
