Description

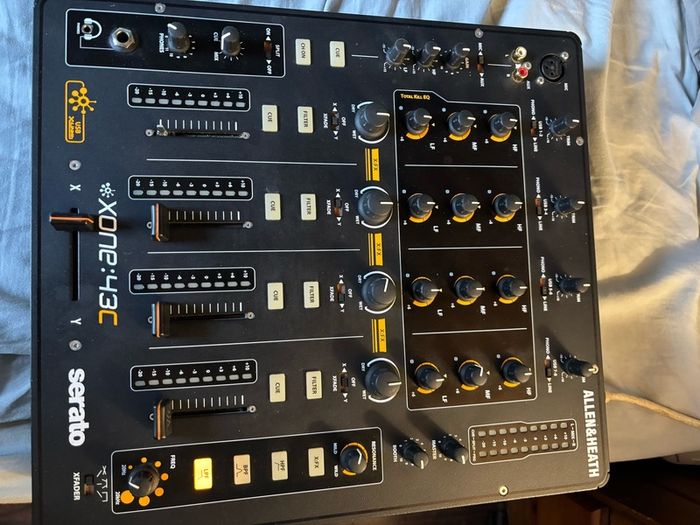

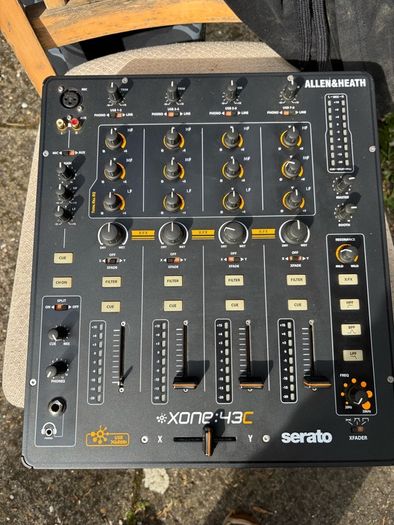

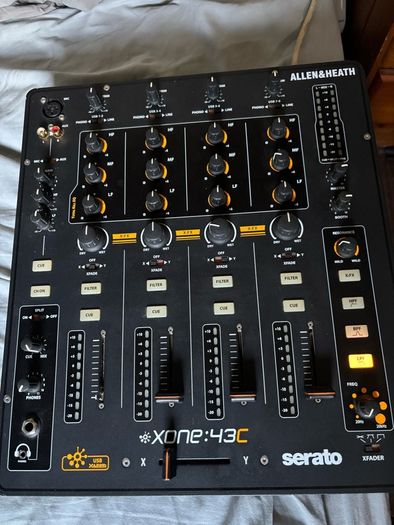

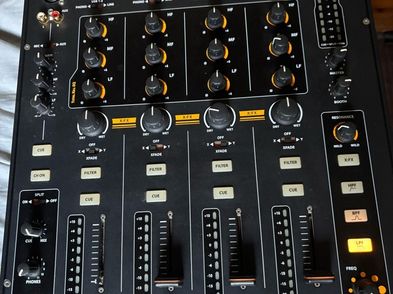

Allen & Heath Xone 43C in pwo, has had very little use. I’ve had it around 2-3 years. The 43c has a usb audio interface for connection to computer.

One fader cap not pictured, it popped off while dusting and fell in behind chest of drawers, I’ll dig it out.

The Allen & Heath Xone:43C is a 4-channel DJ mixer that allows you to take full advantage of the world of digital capabilities and fully supports Serato DJ and is DVS upgrade ready thanks to the addition of the Serato DJ Club Kit which eliminates the need for external interfaces. The mixer comes with an intuitive layout and offers excellent audio reproduction due to the addition of a 24-bit/96kHz soundcard. The Xone:43C digital DJ mixer makes a great addition to any DJ setup and fits right in at home in club and bar installations as well as festivals and is perfect for mobile/travelling DJs.
The Xone 43C comes fitted with a 16-channel, 24-bit/96kHz USB soundcard that gives you an excellent, pristine sound that perfectly reproduces the original sound source and allows the mixer to integrate with digital DJ systems seamlessly. The mixer is a perfect companion for Serato NoiseMap control vinyl and CDs which gives you excellent control over the Serato DJ application when used with the Serato DJ Club Kit (available from the Serato online store). The mixer works as a plug’n’play interface for DVS systems and eliminates the need for an external interface. Each of the channels on the Xone:43C is equipped with a 3-band EQ that can completely kill a frequency band or raise it by +8dB, this lets you smoothly blend tracks together and can replace a tracks bassline with another tracks bassline. All channels can be routed to the legendary Xone filter which offers a high-pass, band-pass, and low-pass filtering options with controls for resonance and frequency sweeps. An X:FX send/return channel lets you hook up your favourite effects processor and gives you a single dry/wet rotary control per channel for smoothly blending in your effects; there is also the option to route the X:FX to the filter which gives you endless creative possibilities.

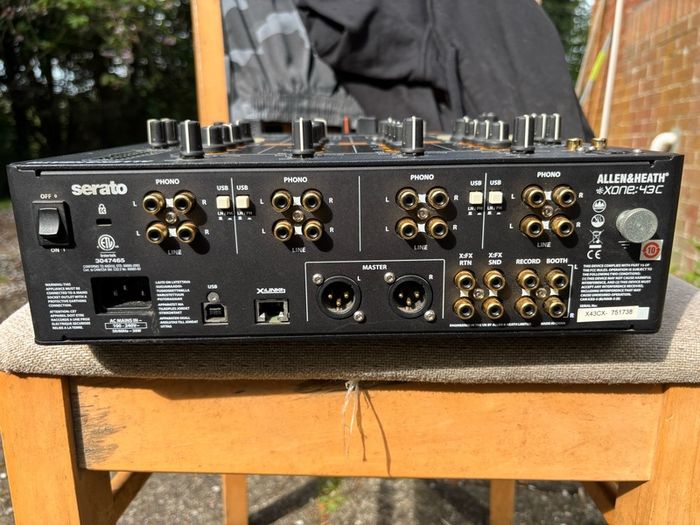

On the rear of the mixer you’ll find an X:Link Ethernet output that enables you to connect a Xone:K series digital DJ controller for complete hands-on control over your software, when used with Serato DJ the Xone:K is pre-mapped to give you controls for cue, loops, and the range of effects Serato has to offer. There are also four-channel inputs providing connections for both line and RCA phono connections for media players and turntables while a versatile microphone/auxiliary input with both XLR and phono connections lets you perform alongside a microphone. If you do not need to perform with a microphone the mic channel can be used as an extra audio source. Dedicated record and booth outputs let you easily record your mixes and monitor your mix while in the booth.
Features
Serato DVS Ready - Plug'n'play capabilities for DVS systems
High-Quality Internal Soundcard - 24-bit/96kHz USB Soundcard
Legendary Xone Filter - HPF, LPF, BPF options with resonance and filter sweep controls
X:FX - For external effects units
X:Link - For connecting Xone:K series digital DJ controllers
4 + 1 Channels - Four phono/line inputs as well as a flexible microphone XLR + phono connections
Innofader Compatible - Upgrade to a custom Innofader for even greater scratch control
Dedicated Record and Booth Outputs - Listen to your booth monitor and record your mixes with ease
Tech spec
16 channel 96kHz 24bit internal soundcard
Serato DJ and DVS Upgrade Ready
X:LINK for plug n’ play connection to Xone:K series controllers
4 channels with phono/USB/line inputs
VCF Filter system – low-pass, high-pass and band-pass filters plus frequency and resonance controls
3-band EQ
External FX loop (Send/Return) system with dry/wet control per channel
Mic input on balanced XLR, with 2-band EQ
Balanced main mix out on XLR
Independent booth out
Record out
3.5mm and 1/4″ headphone outputs
Touring grade build quality
Super smooth VCA channel faders
User changeable crossfader
Innofader compatible
Crossfader curve switch
20dB pro standard headroom
9-segment signal level monitoring

allen-heath.com
·
Manufacturer
Software
Serato DJ
Number of Channels
4
Connection Types
XLR, RCA, USB
Inputs/Outputs Highlights
Headphone Output
Audio Input Count
4+1 Channel
Audio Input Type
USB, XLR (microphone)
Microphone Inputs
1
Line Inputs
4
Audio Output Count
3 (balanced XLR master, unbalanced RCA master, unbalanced RCA booth)
Audio Output Type
RCA Record outputs, Balanced XLR main outputs, Independent booth outputs, Independent record outputs
Headphone Outputs
6.35mm (1/4'') headphone jack
Monitor Outputs
RCA Booth outputs, Independent booth outputs
Skill Level
Serious hobbyist, Ambitious home DJ, Ambitious prosumer DJ
Top Use Cases
Club environment
Typical Users
DJs
Crossfader
Yes
Jog Wheels
No
Faders
Yes
Knobs
Yes
Buttons
Yes
Motorized Faders
VCA Crossfader
Touch Screen
No
Device Type
DJ Mixer
Size
37 cm (Depth)
Weight
5.2 kg
Material
Metal (knobs mounted metal-to-metal on the chassis), Aluminium
Effects
X:FX for send/return to your favourite FX unit, External FX loop with dry/wet control per channel
Equalizer
Yes (Analogue Isolator EQ), Yes (2-band EQ on XLR mic input), Yes (3 band EQ), Yes (3-band EQ with Total Kill on each band)
DSP
No (100% Analogue)
Signal Processing
Analogue
Recording Resolution
24-bit/96kHz
Display Type
LEDs (for VU meters)
Sampling Rate
96 kHz (Max)
Frequency Response
20 Hz - 20 kHz
USB Connectivity
Yes
MIDI Connectivity
MIDI linefaders
Bluetooth Connectivity
No
Wireless Connectivity
No
Networking Capabilities
X:LINK connection via an ethernet port on the rear, X-link ethernet
Highlighted Accessories
Spare knobs, Fader caps, Leads, Quickstart guide
Included Components
With audio interface
Power Source
USB, External
Voltage
120/230 V (AC)
Power Consumption
30 Watt
