Radiomaster RP1-V2 ELRS ExpressLRS

Condition: New

The RadioMaster RP1 V2 is a compact and lightweight ExpressLRS (ELRS) 2.4GHz receiver, designed for FPV drones, whoops and fixed-wing models.

Based on the open-source ExpressLRS system, the RP1 V2 offers low latency, high refresh rates and reliable performance in an ultra-compact package. Weighing only 2.2g including the antenna, it can easily fit into even small FPV builds.

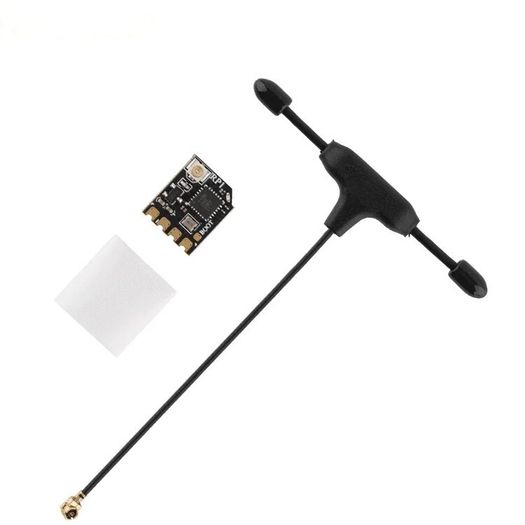

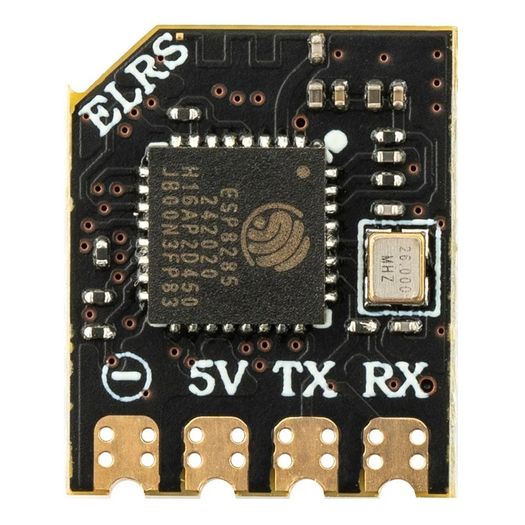

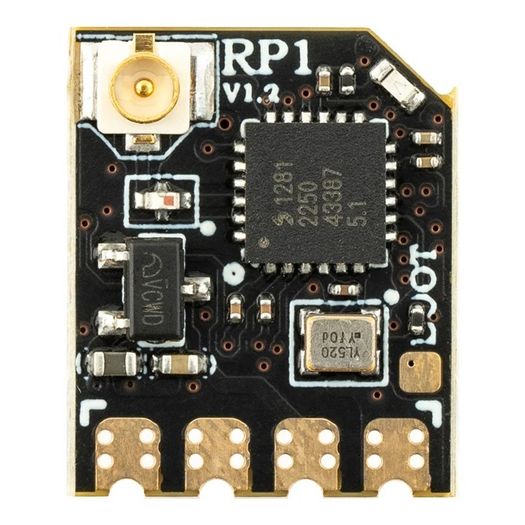

The updated V2 version features an improved PCB design, improved solder pads, a built-in TCXO and a rigid 65mm T antenna. Built-in WiFi allows for convenient firmware updates.

Ideal for freestyle, racing, long-range FPV and other RC applications.

Features:

ExpressLRS (ELRS) 2.4GHz protocol
Compact nano-size receiver
Built-in WiFi for firmware updates
Upgraded rigid 65mm T antenna
Built-in TCXO for improved frequency stability
Improved PCB design and solder pads
Low latency and high refresh rate
CRSF interface
Suitable for FPV drones, whoops and fixed-wing models

Specifications:

Protocol: ELRS 2.4GHz
Type: ISM
Antenna: 65mm 2.4GHz T Antenna
Maximum refresh rate: 500Hz / F1000Hz
Minimum refresh rate: 25Hz
Working voltage: 5V
Weight: 2.2g (including antenna)
Dimensions: 13 × 11 × 3mm
Firmware Target: RadioMaster RP1/2 2400 RX
Bus Interface: CRSF

Shipping from Ireland via An Post, or collection available in Swords.
