Description

Condition: New

Free delivery.
Price match guarantee.
Bike to work scheme.
Visit www.electricpower.ie

FEATURES

Choose between three riding modes: pedal-assist mode, pure electric mode (when using the included throttle), and classic pedal mode. In normal pedal mode, you can experience unparalleled acceleration with the 7-speed Shimano transmission and mechanical gears. In moped mode and pure electric mode, you'll enjoy an unexpectedly fast riding experience.

Efficient, powerful electric motor : The KOOLUX e-bike is equipped with a 250W 48V motor that can easily handle gradients of 25%. With the integrated, removable 15.6AH battery, the range is approximately 70–120 km with a charging time of 6–7 hours. If you love excitement and challenges, you might want to try this mountain bike for a non-stop adventure.

Intimate design : The bike features an aluminum alloy frame that is low density and high strength. The folding design is easy to transport and saves space. Don't underestimate the openwork saddle design; it's not only comfortable and breathable, but also prevents water from accumulating. The bike also features an easy-to-read LCD display (showing battery, mileage, speed, assistance level, error code, etc.), as well as headlights and reflectors to ensure your safety.

Improved Gear Shifting : Choose from three riding modes (pedal-assist mode, pure electric mode, and normal pedal mode). In normal pedal mode, the 7-speed Shimano transmission and mechanical gears allow for unparalleled acceleration. In moped mode and pure electric mode, you'll enjoy an unexpectedly fast riding experience.

Advanced Safety Features : Safety is our top priority. Our electric bike is equipped with hydraulic braking systems, bright LED lights, and a sturdy frame. It's ideal for beginners and experienced riders, ensuring a safe ride in all conditions.

Comfortable Shock Absorption : Equipped with front suspension and large, high-capacity low-pressure tires that also act as shock absorbers, the bike offers more balance and control on rough mountain roads. Front and rear dual disc brakes, as well as electronic brakes, provide all-round protection for safe riding.

Professional 20" Fat Ebike : KOOLUX electric bikes specifically utilize the extra-strong professional Kenda 4.0 fat tires, which are wear-resistant and puncture-proof. You can ride freely in both the mountains and the city and explore nature. Or experience the feeling of flying without obstacles in places like snow, beaches, and more

The bike you will receive is a fully compliant electric bike for use on public roads, with the throttle included. We recommend a user height between 162 cm and 190 cm (seat height 80-96 cm).

Specification
Technical data Details
Frame material Aluminum alloy
Color Black
Unfolded size 1780mm*790mm*1118mm
Folded size 960*470*890mm
Radform Integrated wheel
Tire size 20 inches
Packaging size 1450mm*280mm*790mm
Gross/net weight 36 kg / 30,5 kg (79,37 lbs / 67,24 lbs)
Maximum Load 120 kg (264,55 lbs)
Maximum speed 25 km/h (unlocked 38 km/h)
reach 70 km – 120 km (depending on load, temperature and road conditions)
Maximum pitch angle 25 Degrees
Optimal temperature -10~45°C
Water resistance IP54
Battery type 18650 lithium-ion power battery
Battery capacity 15,6 Ah (748,8 Wh)
Nominal battery voltage 48V
Rated engine power 0,25 kW
Motorform Assistance mode
Engine type 20 inch / High-speed gearbox / Integrated brushless wheel
Engine rated idle speed 400±10 U/min
Charger output 54.6V 3.0A
Charger input 100-240V 50/60Hz 3,0A
Undervoltage protection value 40,5V
Overcurrent protection value 21A±1A
Loading time 7-8 hours
Display instrument Multifunktionales LCD-Display
Front lighting AND
Bremsmethode Front disc brake + rear disc brake
pneumatic tires Tire: 20*4.0 Valve: 20*4.0 The valve of the tube is AV
front fork Stoßgabel
Gearshift 7-speed transmission
Geometry
A Total length: 168 cm
B Handlebar height: 115-128 cm
C Wheelbase: 115 cm
D Standover height: 83-106 cm
E Top tube length: 60 cm
F Raddurchmesser: 20”
G Handlebar width: 58 cm
Folded size: 96*38*75 cm
Driver size: 165-195 cm
Maximum load

120kg

Rated power of the engine

250W

Mileage

70km-120km

Battery

15.6Ah / 48V

Top
speed

25 km/h (unlocked 38 km/h)

Tires

4.0-inch” Fat Tires

More reliable battery

With the latest Li-ion battery management technology, the 15.6 Ah battery can actually deliver a range of 70-120 km (tested with a 75 kg rider).

More linear power output
The newly developed electronic management technology and the latest 250W, 32 N·m motor in the KL6S provide a more comfortable and durable riding experience and comply with road safety regulations.
Headlight and taillight
The LED headlight and taillight design ensure a well-lit route even during nighttime rides. For your safety during nighttime rides.
DUAL Hydraulic DISC BRAKE SYSTEM
The sensitive braking system with front and rear disc rotors enables strong braking power and offers sufficient safety for your ride.
Foldable aluminum alloy frame

The foldable design of the frame allows you to quickly fold the bike and store it in the trunk or at home, saving time and space

More linear power output
The newly developed electronic management technology and the latest 250W, 32 N·m motor in the KL6S provide a more comfortable and durable riding experience and comply with road safety regulations.

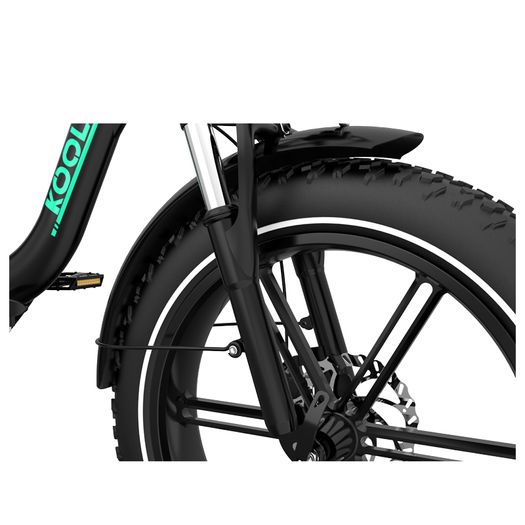

20x4.0” off-road tires Kenda – Perfect control on any terrain

The wide 20x4.0-inch Kenda off-road tires offer an outstanding balance of stability, comfort, and grip. They adapt effortlessly to different surfaces and ensure a safe and enjoyable riding experience. Whether in the city, mountains, snow, or beach – with these tires you'll master any terrain!

Double front shock absorbers – maximum comfort on any surface

The front dual suspension ensures a smooth and stable ride by effectively absorbing shocks. Whether on bumpy roads, gravel paths, or off-road trails, enjoy a comfortable riding experience with optimal control and safety!

Compact & robust – Perfect balance between size and performance
With a net weight of 30.5 kg and ideal dimensions of 1780 x 1180 x 790 mm, the KOOLUX e-bike offers a perfect blend of stability and mobility. Thanks to its sophisticated design, it remains easy to transport yet robust enough to handle any challenge.
48V 15.6Ah battery – Maximum range & comfort
The 48V 15.6Ah lithium battery provides an ultra-long range for extended rides. The removable design allows for easy charging at home or in the office, so you're ready to go at any time!
Powerful & Secure – All important features at a glance

Equipped with a 250W brushless motor , the KOOLUX e-bike offers efficient and powerful assistance. Front and rear disc brakes ensure maximum safety, while the StVZO-compliant front and rear lights guarantee optimal visibility on every ride.

What is included in the package?
Throttle × 1
Bicycle pump × 1
Charger (UK plug) × 1
Lock × 1
Montagetools × 1
Key × 2
