SMD LED CCFL Angel Eyes FADE ON OFF Remote Relay Wiring Harness Fuse Halo Rings

Condition: New

FADE ON/OFF Relay Harness for SMD LED / CCFL Angel Eyes

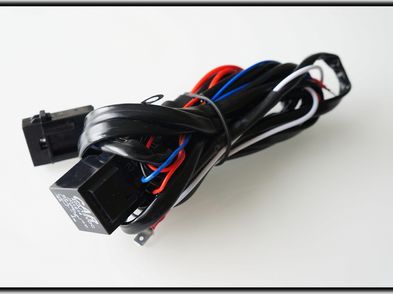

12V wiring harness comes with a 40A relay, 25A fuse, 2 sets of output power for Angel Eye rings and a pair of remote signal wires in the circuit.

Signal Wires
One can be connected to parking lights power circuit.
The second can be connected to footwell/interior light power circuit, allowing you to have a popular Remote Angel Eyes Fade ON/OFF feature. Or accessory wire, allowing you to use your Angel Eyes as DRL (Day Running Lights).

40A Relay
40A relay does all the work of switching ON and OFF the power to the output wires where your lighting devices would be connected.

25A Fuse
25A fuse secures the circuit and it's elements of any electrical faults.

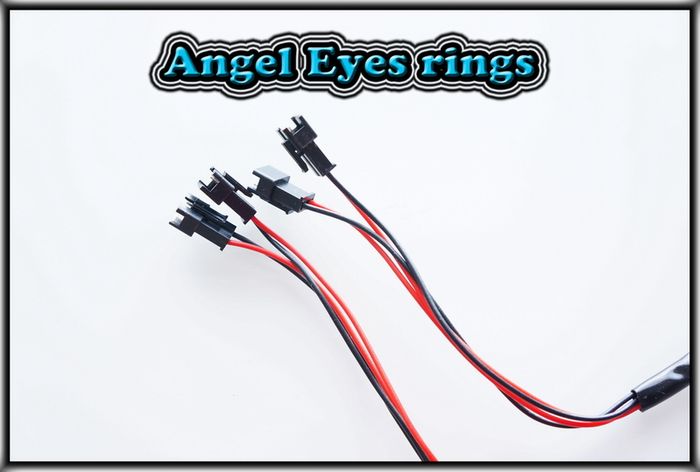

Output power to Angel Eye rings
2 sets of power output wires need to be connected to lighting devices such as CCFL or SMD/COB LED rings, strips and etc. There are only 2 sets of output wires, but up to 8 lighting devices can be connected to the circuit. If there is a need to connect more than 8 devices, we recommend upgrading the relay and fuse to a higher amperage

Power Wires
+12V and ground wires are power wires that need to be connected to power supply (battery or battery remote terminals).



This 12V Remote Relay Harness combination can be used widely in electronic world and it is not restricted to automotive industry only.



Details:

- Remote FADE ON/OFF feature -
- 40A relay (replaceable) -
- 25A fuse (replaceable) -
- Over 50000 hours lifespan -
- Fast light up in cold weather -
- Water proof -
- Shock proof -
- High heat resistant -
- Easy installation -
- 100% computer error free -

For models:

SMD LED / COB LED / CCFL Angel Eyes Halo Rings kits

Please feel free to contact us if you have a custom application and are looking for an advice.

For those who are not familiar with FADE ON/OFF feature, here is a video of showing how it works:
https://youtu.be/xcYWL074sJc


Cheers.
Danius
