W410XW WSD Anemometer | Navis Elektronika

Description

Condition: New

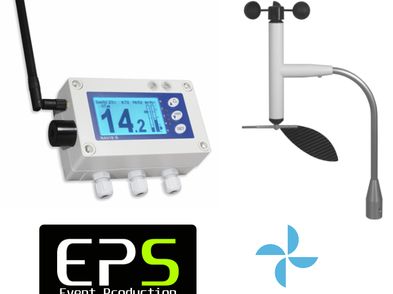

The W410XW is a long range wireless anemometer and data logger with WiFi. The W410XW anemometer measures wind speed and direction. The display unit connects to the anemometer via its own 868 MHZ radio and can transmit up to 500m (line of sight).

The W410XW shows the readings on its display unit, it also connects to Navis LIVEDATA web portal via WiFi. It uploads live data to the web portal for remote monitoring and viewing. This means that you can share the login details to your event control & safety team to allow them to instantly view the current readings.



Functions:
- Current wind speed
- Wind direction
- Bar graph for current wind speed
- Bar graph for peak wind speed

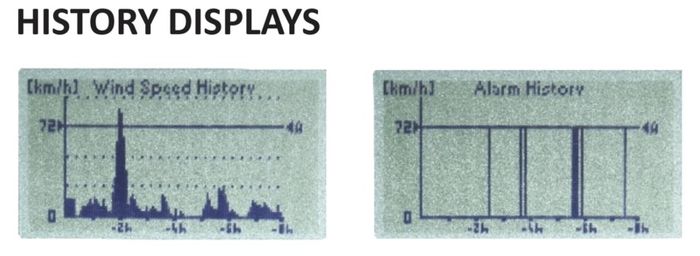

- 8 hour wind speed history graph
- 8 hour alarm history graph
- Temperature

Features:
- Easy-to-use solution for wind site evaluation
- Easy installation without running cables
- Range up to 500 m (1300 m with external antenna and extended range sensor)
- Built-in audible alarm and yellow / red warning lights
- 4 programmable alarm relay outputs with ON and OFF delays
- 2-zone wind direction alarm
- Large graphic LCD with backlight
- Wi-Fi connection for sending data to Navis LIVEDATA web interface

Applications:
- Wind & temperature monitoring for spraying crops
- Wind monitoring on-site at events
- Crane applications:
- Mobile cranes
- Tower cranes
- Bridge cranes
- Construction Sites
- All applications where a wind alarm is needed
- Remote wind monitoring and logging


Navis LIVEDATA web interface:
- Free Basic Access
- 1 min data refreshing
- 24hour graphs
- Advanced Access (Subscription €190 for 5 years)
- 2 seconds data refreshing
- Up to 1 month graphs
- Data logging on all measurements


Wind speed measurement range: 0.6 m/s - 50.0 m/s
Wind speed resolution: 0.1 m/s
Wind speed accuracy: +/- 2.5%, calibration possible in 0.5% steps
Wind speed units: m/s, km/h, knots, mph
Wind speed averaging period: selectable 2 s, 10 s, 30 s
Wind direction measurement range: 0° - 359° (6° Graph resolution)
Wind direction resolution: 6°
Wind direction accuracy: +/- 2.5°, adjustable offset +/- 180°
Wind direction averaging period: 10s
Temperature measurement/operating range: -30°C to +60 °C
Temperature resolution: 1 °C
Temperature accuracy: +/- 1°C
Temperature units: °C, °F
Communication frequency: 868MHZ
Antenna Input: 50 Ohm, SMA connector
Range:
Standard range sensor - up to 500m visible distance (Line of Sight)
[Optional Extra] Extended range sensor - up to 1300m visible distance (Line of Sight)
Wi-Fi data transmission rate: every 2 seconds
Wi-Fi transmission frequency: 2.4 GHz
Wi-Fi range: Up to 20 meters. It varies with type of Wi-Fi router.
Navis LIVEDATA web interface URL: http://www.navis-livedata.com
Power: 12v Power Supply Included
Operating voltage: 12 - 24 V DC
Power consumption: 500 mA
Outputs:
- 4 x relay, contact rating 2 A/24 V, programmable ON and OFF delays
- 2 x 4...20 mA (not isolated, common ground with supply) 4 mA = 0 m/s (0° ) 20 mA = programmable 10 - 50 m/s (359°)

Alarms:
- adjustable max. alarm red light + continuous sound signal
- adjustable pre. alarm yellow light + interrupted sound signal
Sound Signal: 85 dB/10 cm

Dimensions - Display Unit:
150 x 80 x 55 mm

Mounting: Mounts on a pipe with ø 20 mm diameter


Wind tunnel certification available. Please contact us for more information.

Various optional accessories available (see below). Please contact us for more information.

Magnetic and self levelling mounting accessories
Spare cups and wind vane
External SMA antenna
External antenna with 4 m cable
YAGI antenna
Micro SD card
USB / micro SD adapter
External power adapter




PLEASE NOTE:
There may be a lead in time of up to 2 weeks on this product depending on stock levels.
