Description

- very good condition overall

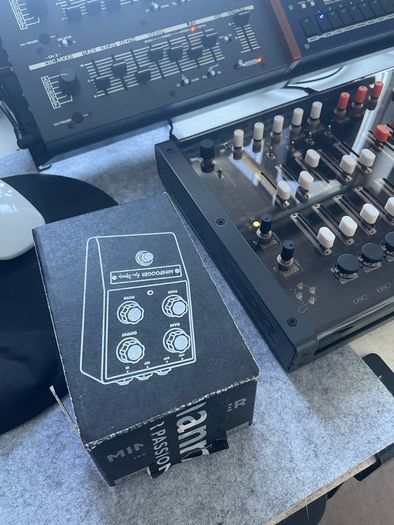

- comes with box etc.

Full Description

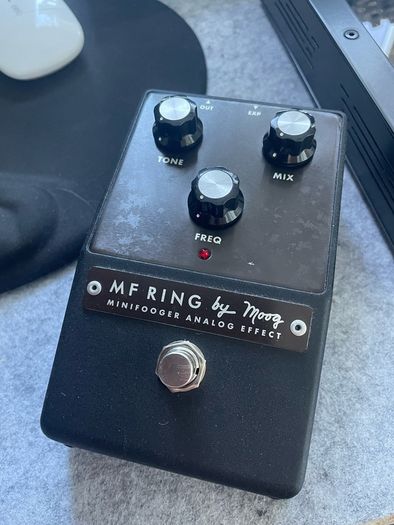

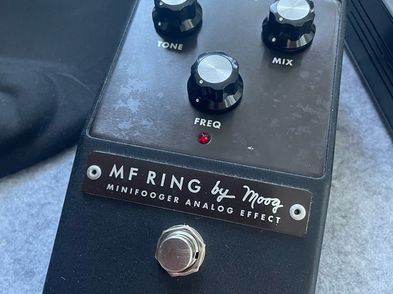

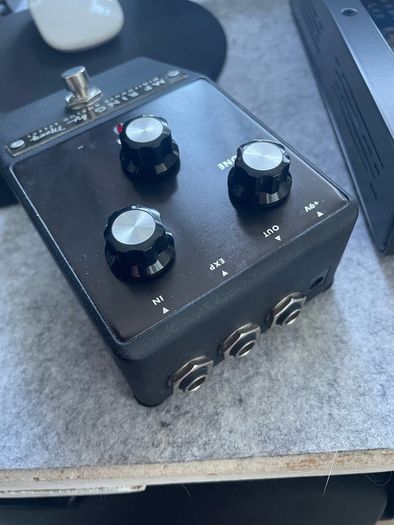

MF Ring is an analog ring modulator, based on the best-selling Ring Mod in the world, the MoogerFooger MF-102.
The unique tone voicing circuit of the MF Ring adds a new musical dimension to ring modification, making it easy to dial in everything from octaves and choral dissonance to harmonic undertones and synthesized lead lines.
The expression pedal input provides hands-free control of the Freq control for sound sweeps, pitch shifting effects and playing between two scales on the fly.
Each Minifooger stomp box is housed in a rugged cast aluminium enclosure, featuring an 100 analog signal path. The true bypass design pedal is hand-assembled in Moog's factory in North Carolina and features optional battery power and a single expression pedal input that can also be controlled via CV.
Features / Specifications

For futher information about the Minifooger Analog Ring Modulator pedal, please download the product manual PDF from the link below.
Signal Path: 100 Analog
Bypass Type: True bypass
Power:+9VDC
Weight: 18oz (0.5kg)
Enclosure:Cast aluminum
Dimensions: D=5.75" (14.4 cm) W=3.25" (8.3 cm) H=2.25" (5.8 cm)
Frequency Control: Oscillator range is 90Hz - 1.5 KHz nominal; Max with expression 12 KHz
Tone Control: 165Hz - 20 kHz Lowpass Filter 6dB/Octave (wet signal only)
Expression: Controls Gain (Max Input level +5VDC)
Input Impedance: >1 MegaOhm
Output Impedance: 200 Ohm
Current: 12 mA
