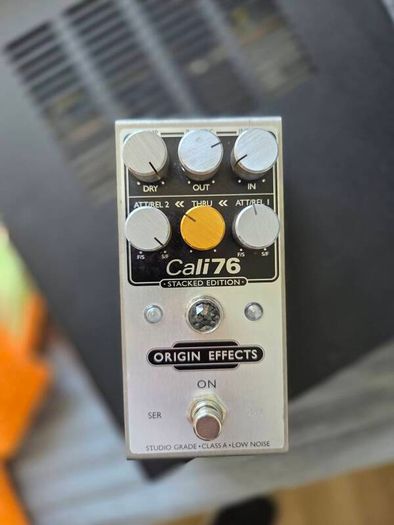

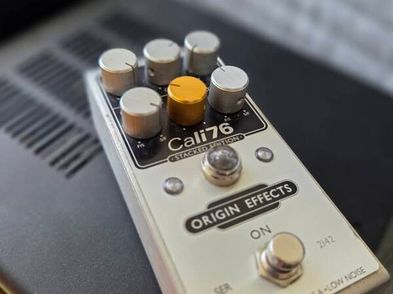

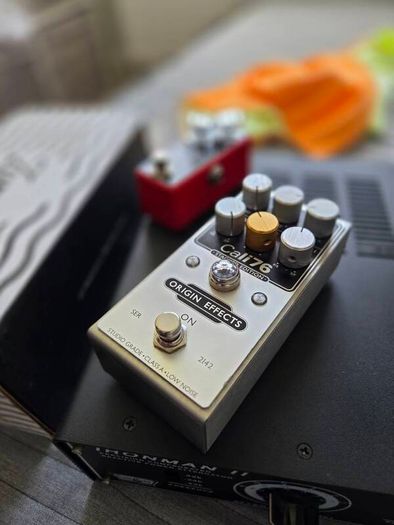

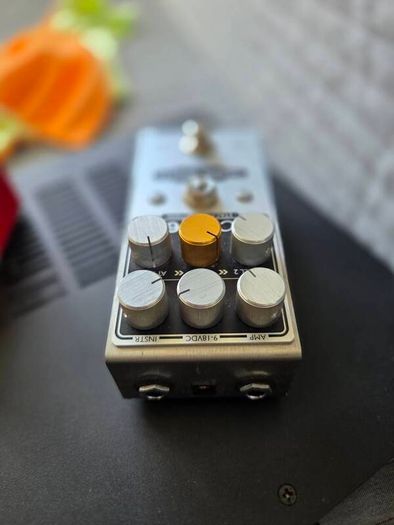

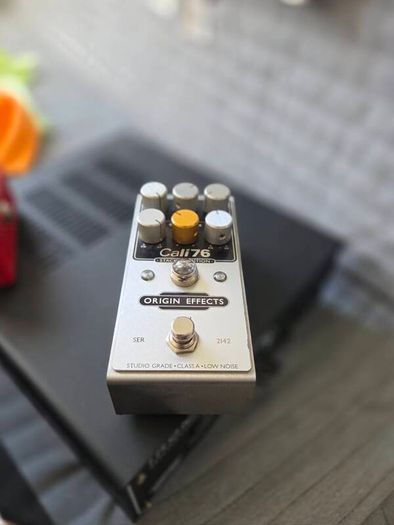

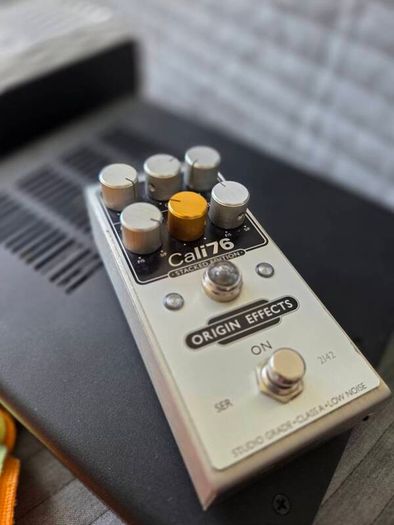

Origin Effects Cali76 Stacked Edition Compressor

Origin Effects Cali76 Stacked Edition - barely used, just sat in storage for a while. It has velcro on the back, FYI.

– Dual-Stage Compressor. Studio-grade 1176-style FET compressor featuring two Cali76 compression stages in series, with independent Attack/Release controls and gain-reduction metering for each stage. Includes IN, OUT and DRY controls plus the unique THRU control for adjusting the interaction between the two compressor stages. 100% Class-A discrete signal path, high-current/low-noise design, 9–18V DC operation. Designed and built in England. Discontinued model.

Origin Effects Cali76 Stacked Edition — Manufacturer Specs:

Type: Dual-stage FET compressor
Circuit: Two 1176-style Cali76 compressor circuits connected in series
Signal path: 100% Class-A discrete
Compression ratio: 4:1 per stage
Controls:
IN – input/compression level
OUT – output level
DRY – parallel dry-signal blend
THRU – level of signal fed from compressor 1 into compressor 2
ATT/REL 1 – attack/release of stage 1
ATT/REL 2 – attack/release of stage 2
Metering: Independent gain-reduction LED VU meters for each compression stage
Input impedance: 1 MΩ
Output impedance: 1 kΩ
Power: 9–18V DC, 2.1 mm centre-negative
Power consumption: 82 mA @ 9V / 108 mA @ 18V
Recommended minimum PSU: 100 mA
Battery: No
Bypass: Signal-conditioning bypass
Switching: Silent switching
Frequency response: Ultra-wide
Construction: Stainless-steel enclosure
Designed/built: England
Intended use: Optimised for guitar, but capable of processing other sources
