Komori printing press gears (2 sizes)

Condition: New

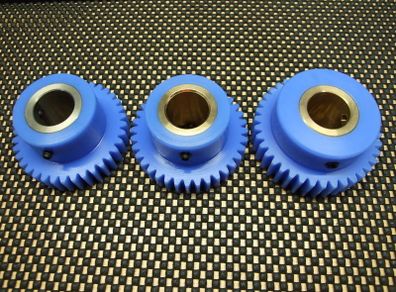

Komori printing press damper roller gears

Manufactured for an LS29 but no longer needed,may fit other presses (check dimensions from parts fitted to your machine).

Fitted with steel bore cores.

Made from MC901 (Gear graded nylon),have been proven to outlast factory gears and at less than half the price from Komori UK.

€50.00 for 38 tooth
€60.00 for 36 tooth

Dimensions of larger gear

Tooth count 38
Gear diameter 81mm
Hub diameter 60mm
Bore diameter 25mm
Gear width 20mm
Hub width 20mm
Lock screws M8 thread (4mm hex key)

Dimensions of smaller gear

Tooth count 36
Gear diameter 72mm
Hub diameter 50mm
Bore diameter 25mm
Gear width 16mm
Hub width 25mm
Lock screws M6 thread (3mm hex key)
