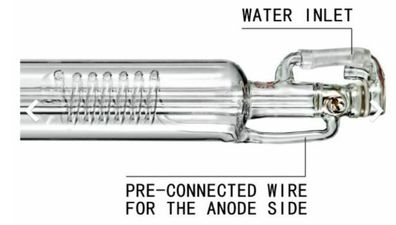

Laser Tube 40w 700mm ForEngraving Cutting Machine

Condition: New

Delivery takes 2 to 5 working days

Description

· 【HIGH TEMPERATURE RESISTANCE】- This laser tube is made of the boron silicate glass that is also applied on the solar tubes. It is resistant to high temperature and high pressure.
· 【TEMOO MODE】- The co2 laser tube adopts the TEMOO mode, which is characterized by high spot concentration, high energy density as well as good and stable spot. At the same time, the use of output mirrors further enhances the mode.
· 【SPECIAL COATING TECHNOLOGY】- The inside of the discharge tube (imported German Schotter tube)uses the special coating technology. The coating is a reduction catalyst mixed with materials such as rare earth and gold.
· 【LONGER SERVICE LIFE】- Our service life of discharge tubes coated with special catalysts is much improved. Compared with other laser cutting tubes, our 40W co2 laser can last longer.
· 【VARIOUS APPLICATION】- Professional 40w laser, one of the spare parts of c02 laser engraving machine, widely used in engraving and cutting acrylic, cloth, leather, bamboo, wood and other materials.


Specifications
Power output: 40W
Length: 700 mm
Beam diameter: 2.5 mm
Wavelength: 10.64 microns
Material: Boron Silicate Glass
Outer diameter: 50 mm
Trigger voltage: 20KV
Working voltage: 16KV
Optimal operating current: 10-13mA
Gross Weight: 5.13kg(11.30lbs)
Package Size: 90 x 20 x 16cm/35.43 x 7.87 x 6.29inch

Package Content
1 x Laser Tube
