Joule Twin Coil Copper Cylinder Hot Press Cylinder Immersion Tank 210L 60x18 1500x450mm Solar Compatible

Selling a Joule twin coil (dual coil / double coil) insulated copper hot water cylinder

— also commonly referred to as a hot press cylinder, hot press tank, immersion cylinder, immersion tank, boiler cylinder, indirect cylinder, vented cylinder, hot water storage cylinder, and storage cylinder.

Removed from a fully operational gas central heating system. Second hand / nearly new / used — in very good condition throughout.

This is a large-capacity, premium Grade 3 copper, pre-lagged / lagged cylinder unit that is solar panel compatible and a potentially suitable twin coil configuration for heat pump integration — a genuinely future-proof purchase at a very significant saving over new.

Comparable new cylinders of this type and specification retail for over €1,200. This represents an exceptional saving.

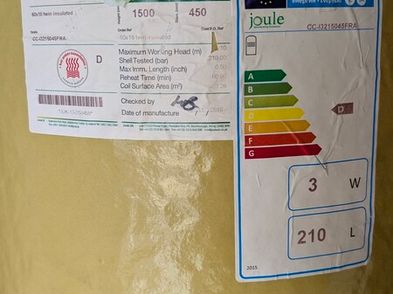

Full Specifications — as per manufacturer data label:

Specification Detail
Brand Joule — manufactured in Ireland
Model Reference CC-I3215045F/RA
Type Twin Coil / Dual Coil / Double Coil — Pre-Lagged Vented Copper Cylinder
Grade Grade 3 Copper
Size (Imperial) 60 x 18 inches
Dimensions (Metric) 1,500mm (H) × 450mm (Ø)
Capacity 210 Litres
Coil Surface Area 3.28 m²
Reheat Time 60 minutes
Maximum Working Head 10 metres
Standing Heat Loss 3 Watts
Energy Rating D (EU ErP 2015 label — physically attached to cylinder)
Insulation Factory-laid lagging / pre-lagged — integral foam insulation, fully intact
Date of Manufacture November 2016
Condition Very Good — removed from a fully working system
Why a Twin Coil / Dual Coil / Double Coil Cylinder?

A twin coil (dual coil / double coil) Grade 3 copper vented cylinder — whether you call it a hot press cylinder, immersion heater cylinder, immersion tank, boiler cylinder, or hot water storage cylinder / storage cylinder — is considerably more versatile than a standard single-coil unit:

Coil 1 — connects directly to your existing gas boiler, oil boiler, solid fuel back boiler, or any conventional central heating system
Coil 2 — allows integration of a solar thermal panel / solar panel cylinder system — no modification required; this unit is fully solar compatible / solar cylinder ready
With a substantial coil surface area of 3.28 m², heat transfer is rapid and highly efficient
Solar thermal cylinder / solar panel cylinder / solar cylinder — connect solar thermal panels directly to the second coil, using the sun as your primary heat source and the boiler as backup
Heat Pump Potential — ASHP / GSHP:

This cylinder has a coil surface area of 3.28 m², which falls within the 2.8–3.4 m² range commonly used in dedicated heat pump cylinders / heat pump compatible cylinders / heatpump cylinders. This means it may be suitable for integration with an ASHP (air source heat pump) or GSHP (ground source heat pump) system as a renewable energy cylinder.

However, prospective buyers should note that heat pump suitability — including whether this unit meets the specific low-temperature operating requirements of their chosen heat pump system — must be confirmed with their heating engineer or heat pump installer prior to purchase. This cylinder is not specifically certified or marketed as a dedicated heat pump cylinder. The seller makes no warranty as to its suitability for any particular heat pump system or configuration.

Suitable For:

Gas boiler systems, oil boiler systems, solid fuel back boiler systems, solar thermal systems, and potentially air source heat pump (ASHP) and ground source heat pump (GSHP) configurations — subject to installer verification. Compatible with all standard open-vented central heating systems. Ideal for a family home of 3–5+ people requiring high-volume hot water storage.

IMPORTANT — PLEASE READ BEFORE ENQUIRING:

The information contained in this advertisement is provided in good faith and for reference purposes only. Whilst every effort has been made to ensure accuracy, all descriptions, specifications, and details are believed to be correct but are provided without warranty of any kind, express or implied, and without any guarantee against errors, omissions, or inaccuracies.

This item is offered and sold strictly on a sold-as-seen basis. Prospective buyers are strongly advised to inspect the item in person prior to purchase and to satisfy themselves fully as to its condition, suitability, specification, and fitness for purpose — including compatibility with any specific heating system — before completing any transaction.

No returns, refunds, or exchanges will be entertained under any circumstances. The seller accepts no liability for any loss, damage, costs, or claims of any nature arising directly or indirectly from the purchase, installation, or use of this item. Purchasing this item constitutes unconditional acceptance of these terms.

Collection only from Dublin 15 (D15). Viewing welcome before purchase. Serious enquiries only
