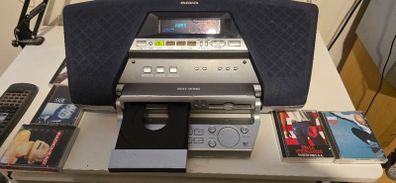

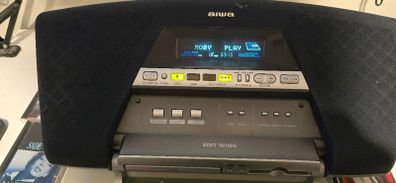

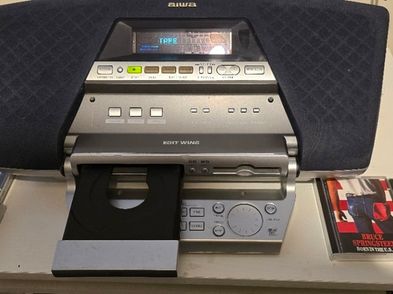

Aiwa CSD-MD5 Very Rare iconic fully functional Minidisc Recorder/CD/FM Boombox with original Remote control.

Aiwa CSD-MD5 Rare Mid 1990s Minidisc Recorder/CD/FM boombox rarely seen in this good condition. Original Remote Control.

All functionality working for MiniDisc/CD/Radio.
Small issue with Panel Open/Close button. Sometimes on occasion it takes a number of presses for the panel to open. Probably the switch contact needs to be cleaned with contact cleaner.
Anyway the Power on off button serves the same purpose for opening the panel.

Specs
CD to MD synchro recording. Shuffle or 30 track MD or CD program play. 30 station presets. Jog dial, sleep function. World tuner.

Tuner: FM: 76-108MHz, AM: 531-1602kHz. MD: 20-20kHz +0.5/-1.5dB.

Amp: 8 W per channel 10% THD/6 ohm. 5.6W + 5.6W (DIN 1% Rated Power)

MD Mechanism: 7ZG-9YA1 Optical Block: KMS-260A CD Optical Block: KSS-213F ATRAC IC: CXD2652AR

FM tuner section
Antenna
Tuning range
Antenna
87.5 - 108.0 MHz
AM tuner section
Loop antenna
530 - 1,710 kHz (10 kHz step)
531 - 1,602 kHz (9 kHz step)

CD player section
Scanning method Non-contact optical scanner
(semiconductor laser)
Frequency
40 Hz - 20,000 Hz +2 dB
D/A converter
1 bit dual
MD recorder section–6
Scanning method Non-contact optical scanner
(semiconductor laser)
Recording system Magnetic polarity modulation overwrite
system
Rotation speed
Approx. 400 - 900 rpm (CLV)
Sampling frequency 44.1 kHz
No. of channels
Stereo: 2 channels
Monaural: 1 channel
A-D, D-A converter 1 bit
Frequency
20 Hz - 20,000 Hz +0.5 dB–1.5
Wow and flutter
General
Speakers
Output
Power output

80 mm cone type (2)
Headphones jack (stereo mini-jack)
8 W+ 8 W (6 ohms, EIAJ)
FTC rule
5 Watts per channel, Min.
RMS at 6 ohms from 200 Hz to 10
kHz, with no more than 1%
distortion
Power requirements AC 120 V, 60 Hz
Power consumption 37 W
Dimensions
538 (W) × 173 (H) × 250 (D) mm
(211/4 × 67/8 × 907/8 in.)
Weight
Accessories
Approx. 5.7 kg (12 lbs. 9 oz.)
AC cord (1)
Remote control (1)
