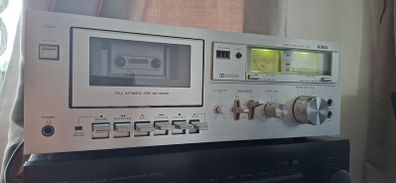

Aiwa M-200 Vintage Cassette Deck - Fully Restored - New Belts - Beautiful Condition -Classic VU Meters

This is a particularly charming example of classic Japanese hi-fi from the golden era of cassette decks. With its beautiful silver front panel, large illuminated analogue VU meters, aluminium controls and distinctive mechanical buttons, the M-200 has exactly the kind of vintage character that is becoming increasingly difficult to find.
Recent restoration work includes:

* New drive belts fitted
* Transport thoroughly cleaned
* Tape path carefully cleaned
* Mechanism cleaned and lubricated
* Internal cleaning and inspection
* Exterior carefully cleaned and refreshed
* Full functional testing

The deck operates smoothly and reliably and provides clear, enjoyable cassette playback with the natural analogue character associated with classic tape equipment.

The M-200 also offers useful recording controls, including manual bias adjustment and separate recording-level controls, making it more than just a basic playback deck. It is an enjoyable machine for anyone who still likes making their own recordings on cassette.

One of the real highlights of this Aiwa is the pair of large illuminated analogue VU meters. They look fantastic when the deck is in operation, with the needles moving along with the music and adding to the unmistakable vintage hi-fi experience.

The combination of the silver fascia, large aluminium controls, illuminated meters and classic mechanical transport gives the M-200 a wonderfully authentic retro appearance. It is the kind of component that looks equally at home in a vintage hi-fi system or simply on display as a beautiful piece of classic audio equipment.

Cosmetically, this is a very nicely preserved unit. The deck has been carefully cleaned and refreshed inside and out while retaining its original character and appearance.

Perfect for:

* Vintage hi-fi enthusiasts
* Cassette collectors
* Lovers of classic Japanese audio equipment
* Anyone who appreciates analogue VU meters and vintage styling
* Those looking for a beautifully restored cassette deck for a retro hi-fi system

There is something particularly special about cassette decks from this era. They were designed not only to reproduce music, but also to make the recording process part of the experience. The mechanical controls, illuminated meters and physical interaction with the machine are a big part of what makes vintage audio so enjoyable.

Specs:
Made in: Japan
Tape system: 4-track, 2-channel stereo
Tape speed: 4.76 cm/s
Heads: 2 — combined record/playback + erase
Motor: DC servo
Tape types: Normal (LH), CrO₂ and FeCr
Noise reduction: Dolby B
Frequency response: 30 Hz – 14 kHz, ±3 dB
— this is the figure given in the period Audio test/specification table.
Wow & flutter: 0.06%
Signal-to-noise ratio: approximately 52 dB / 62 dB depending on measurement/NR condition in the period specification table.
Bias: adjustable bias fine-tuning
Tape EQ: separate 3-position tape selector
Inputs: Line / microphone, switchable
Outputs: Line / headphone
Automatic stop: Full automatic tape-end stop
Timer: Timer/standby function
Dimensions: approximately 419 × 267 × 143 mm (W × H × D), converted from the period specification of 16½ × 10½ × 5⅝ inches.

Technical highlights:
DC-servo motor, adjustable bias, three-position tape bias/EQ selection, Dolby B noise reduction, CrO₂ and FeCr compatibility, dual illuminated VU meters and full automatic tape-end stop.

The deck can be demonstrated before purchase, and you're welcome to test all functions. Alternatively video for the right bidder will be available.
As this is a vintage equipment no warranty is given and no returns accepted, however aftercare is offered to certain extent.
Serious offers only.
Shipping from €13.
