Description

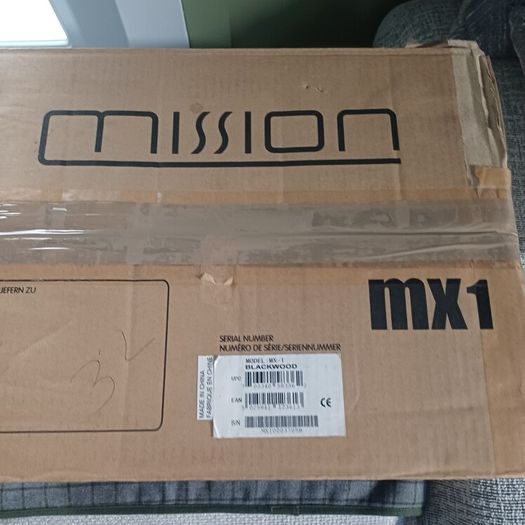

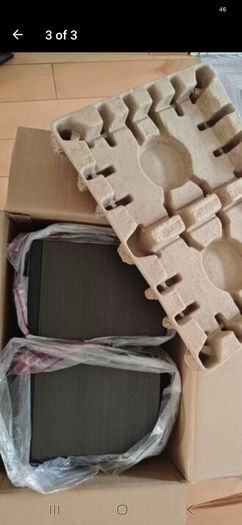

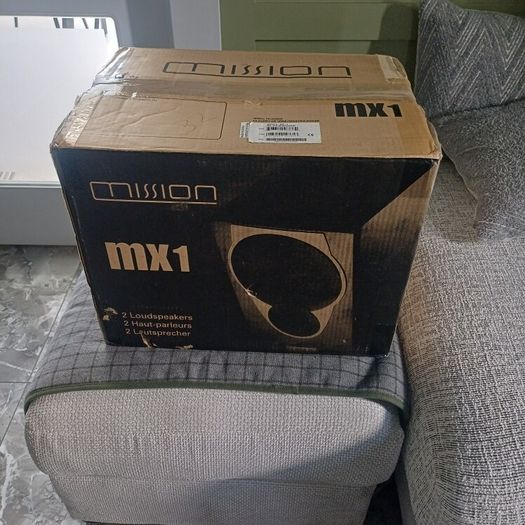

As new Boxed Mission MX1

■■■No Offers or Time Wasters please■■■

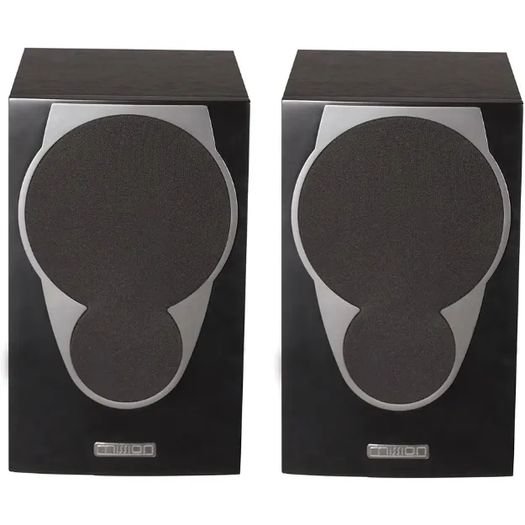

The MX1s are compact speakers, but their discreet, subtle styling hides a remarkable audio performance. The 2-way design features a 130mm bass/mid-range driver and a 25mm tweeter. The sound is detailed, fast and clean - delivering the sort of infectious energy that really makes music a joy to listen to. The sturdy cabinet is rear-ported and designed to be used fairly close to a rear wall, providing a level of bass extension not normally possible from speakers of this size.

Released as part of the MX Series the MX1 has been recognized for its balanced and energetic sound performance, especially given its affordable price point.

Acoustic and technical features

The MX1 speakers feature a distinct driver arrangement and a practical, modern design.

Inverted driver geometry: The tweeter is placed below the bass/mid driver, a tradition for Mission speakers. This design is intended to equalize the distance to the listener, which improves driver integration.

Rear-ported cabinet: The speakers have a bass reflex port on the back. For the best sound, they are designed to be used fairly close to a rear wall.

Grille design: The integrated waveguide in the grille is designed to correctly focus the sound towards the listener, and the speakers were tuned to sound best with the grilles on.

The MX1's crossover is bi-wireable, which allows for using separate cables for the high- and low-frequency drivers.

Specifications

According to several product listings, the Mission MX1 has the following technical specifications:

Enclosure type: 2-way bass reflex

Driver units:

Bass/mid: 5-inch (130mm)

Tweeter: 1-inch (25mm) dome

Frequency response

±3dBplus or minus

58Hz–20kHz

Crossover frequency: 3kHz

Sensitivity
SPL/[email protected] S cap P cap L / cap M @ 2.83 cap V
Nominal impedance: 8 ohms

Recommended amplifier power: 25–100W

Key Specifications

Design: 2-way bass reflex with a rear-facing port [1, 2]

Drive Units: 130mm (5-inch) fiber bass/midrange driver and 25mm (1-inch) dome tweeter [1, 2]

Frequency Response: 58 Hz – 20 kHz [1, 2]

Sensitivity: ~85–86 dB (1W @ 1m) [1, 2]

Nominal Impedance: 8 Ohms [1]

Recommended Amplifier: 25 – 100 Watts [1]

Dimensions (H x W x D): 280 x 172 x 258 mm [1]

Weight: ~5.1 kg each [1, 2]
