Description

JVC TD-V66 Stereo Cassette Deck - 3 Head - Fully Serviced - Very Good Condition
A beautiful example of the JVC TD-V66, a sophisticated 3-head cassette deck from JVC's classic era of Japanese Hi-Fi.
The TD-V66 is a particularly impressive machine, combining excellent build quality with a very attractive design and a comprehensive set of features. This is a Discrete 3-Head System with JVC's SA-HEAD, a 2-motor full-logic transport and a large fluorescent digital peak-level display.
This particular example is in very nice cosmetic condition and has been fully serviced, tested and prepared for many more years of use.
Full service recently carried out:
- New drive belt fitted
- New pinch roller fitted
- Transport mechanism thoroughly cleaned
- Mechanism fully lubricated
- Motors and moving parts serviced and lubricated
- Tape path and heads thoroughly cleaned
- Controls and switches checked
- Full playback and transport testing completed
The transport operates smoothly and reliably, with all functions working correctly.
3-Head JVC Design:
One of the major attractions of the TD-V66 is its Discrete 3-Head System, allowing the recording and playback heads to be physically separate.
This provides the ability to monitor the signal directly from the tape during recording and makes the TD-V66 a particularly interesting deck for serious cassette enthusiasts.
The deck also features JVC's SA-HEAD technology and a sophisticated 2-motor full-logic transport mechanism.
Features:
- Discrete 3-Head system
- JVC SA-HEAD
- 2-motor full-logic transport
- Dolby B / C noise reduction
- Large fluorescent digital peak-level meters
- Digital tape counter
- MPX filter
- Music Scan
- Index Scan
- Memory functions
- Auto Stop
- Electronic soft-touch transport controls
- Headphone output
- Input level control
- Input balance control
- Remote control connection
- Normal / CrO₂ / Metal tape compatibility

Specs:
-Type: 3-head, single compact cassette deck
-Track System: 4-track, 2-channel stereo
-Tape Speed: 4.8 cm/s
-Heads: 1 x record, 1 x playback, 1 x erase
-Motor: 1 x reel/capstan, 1 x wind, 1 x mechanism
-Tape Type: type I, CrO2, Metal
-Noise Reduction: B, C
-Frequency Response: 20Hz to 21kHz (Metal tape)
-Signal to Noise Ratio: 73dB (dolby C)
-Wow and Flutter: 0.038%
-Total Harmonic Distortion: 1.0%
-Input: 80mV (line)
-Output: 0.5V (line)
-Dimensions: 435 x 110 x 282mm
-Weight: 4.8kg
-Year: 1986

Cosmetic condition:
The deck is in very good overall cosmetic condition.

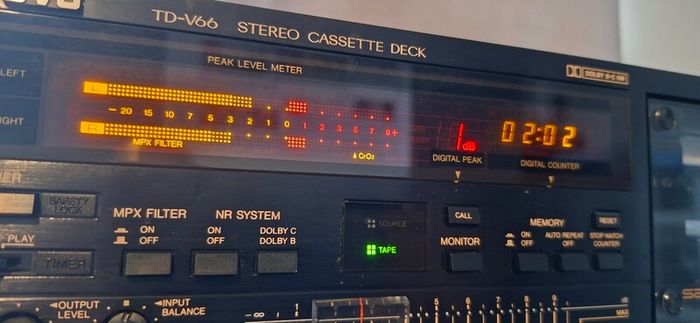

The front panel is clean and very well preserved, with the original lettering, switches and controls all looking excellent. The large fluorescent amber display is bright and gives the deck a fantastic vintage appearance when operating.

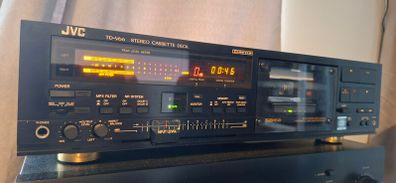

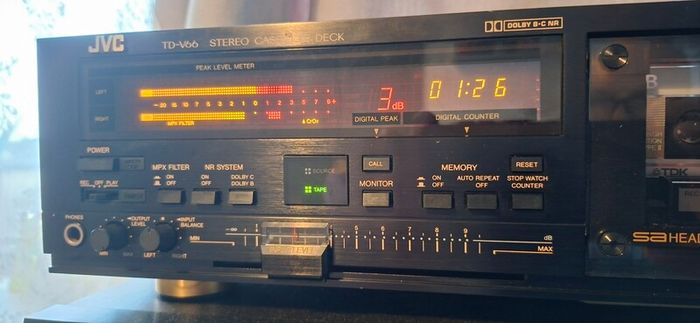

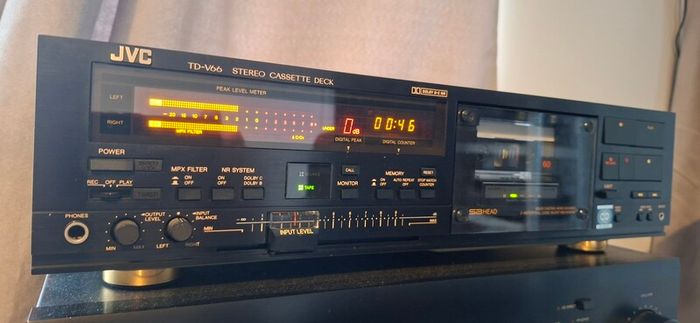

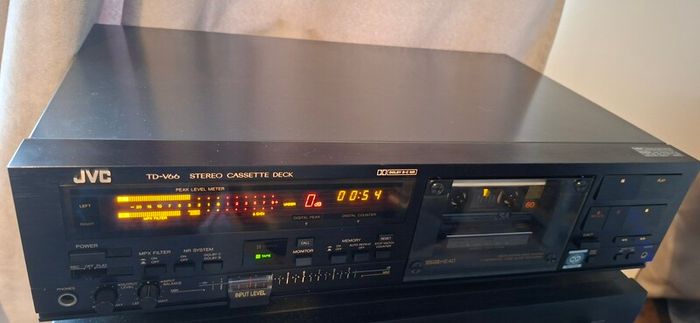

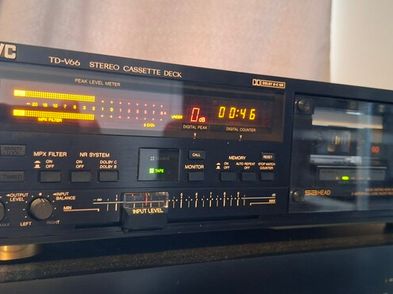

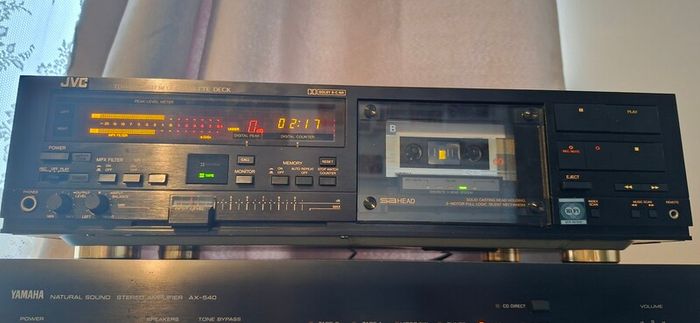

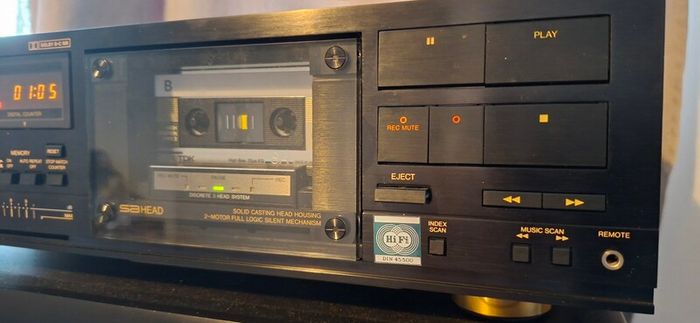

The photographs show the actual deck being offered for sale.
A very capable vintage JVC.
The TD-V66 is a great choice for anyone looking for a proper 3-head Japanese cassette deck with excellent functionality, attractive styling and the mechanical quality of JVC's classic cassette era.
A particularly nice example of the JVC TD-V66 — ideal for both listening to a cassette collection and making high-quality recordings.

Serious offers only.
Shipping possible from €13.
Collection with an opportunity to test all functions on site, alternatively demo video for the serious buyer will be available.

As this is vintage component no warranty is given and no returns accepted, however an aftercare is offered to certain extent.
Good luck!
