Description

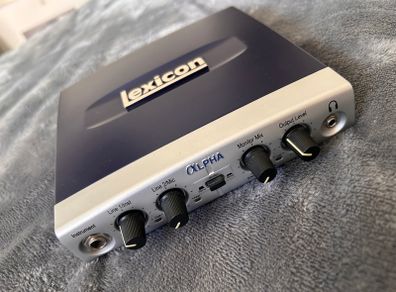

When paired with a laptop, the Lexicon Alpha becomes a powerfully portable, all-in-one recording rig that's ready to go whenever, wherever you make music. Featuring the bus-powered 2x2 Alpha USB I/O audio interface, Steinberg Cubase LE recording software (Mac/Windows), and the Lexicon Pantheon VST reverb plug-in, the Lexicon Alpha Desktop Recording Studio is everything you need to satiate your mix fix in the studio or out.

Specs:

- Microphone Inputs: (1) Female XLR Pin 2 Hot
- Input Impedance: 600 ohms balanced
- Phantom Power: No
- GAIN: +50 dB
- EIN: -115dB A-weighted @50dB gain (150 Ohm source impedance)
- Maxium Input Level: +10dBu
- Frequency Response: +0, 0.5 dB 20 Hz - 20 kHz, ref. 1 kHz
- THD+N: <.005%, 20 Hz - 20 kHz
- Line Inputs: (2) 1/4 in. TRS balanced or unbalanced
- Input Impedance: 20 kOhm balanced, 10 kOhm unbalanced
- Maximum Input Level: +12 dBu
- Frequency Response: +0, 0.2 dB 20 Hz - 20 kHz, ref. 1KHz
- THD+N: <.009% A/D, 20 Hz - 20 kHz
- Instrument Input: (1) 1/4 in. mono jack
- Input Impedance: 1 MOhm unbalanced
- Maximum Input Level: +8.5 dBu
- Frequency Response: +0, 1 dB 20 Hz - 20 kHz, ref. 1 kHz
- THD+N: <.125% A/D
- Crosstalk: <-74dB any input or output to any recording channel, 20Hz - 20kHz <-95dB at 1kHz typical
- Line Outputs: (2) 1/4 in. TRS bal./unbal. +(2) RCA
- Level: +16dBu maximum (1/4 in. TRS)
- Impedance: 1k ohm balanced, 500 ohm unbalanced
- Headphone Output: (1) 1/8 in. stereo jack 20 mW per channel at 50 Ohms
- D/A - A/D Sample Rate: 44.1 kHz or 48 kHz (determined by computer application)
- Dynamic Range: A/D (24 Bit) 100 dB typical, A-weighted, 20 Hz - 20 kHz, D/A (24 Bit) 100 dB typical, A-weighted, 20 Hz - 20 kHz, A/D/A (24 Bit) 97 dB typical, A-weighted, 20 Hz - 20 kHz
- USB Type B Socket: Version 1.1, Version 1.1 hubs ar not supported
- Power Requirements: USB Bus-Powered
- Dimensions: 6.75 in. Wx 1.6 in. Hx 6.5 in. D
- Weight: 1.1 lbs. (0.49kgs)
