Description

(Price drop €200 -> €180)

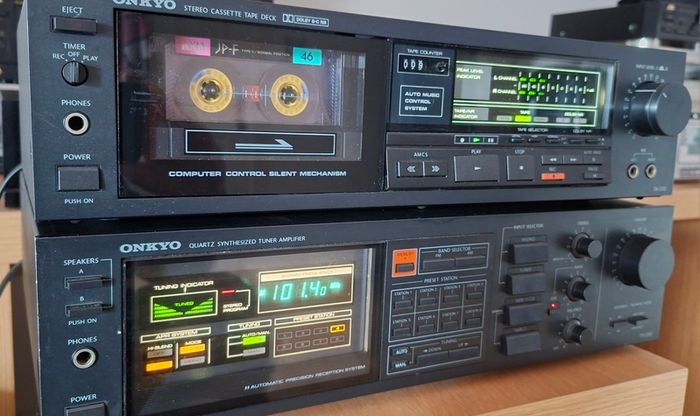

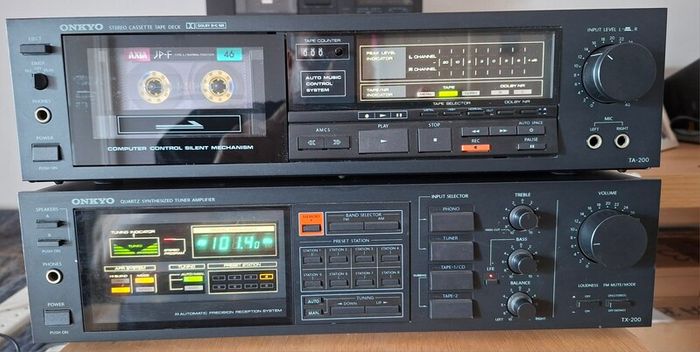

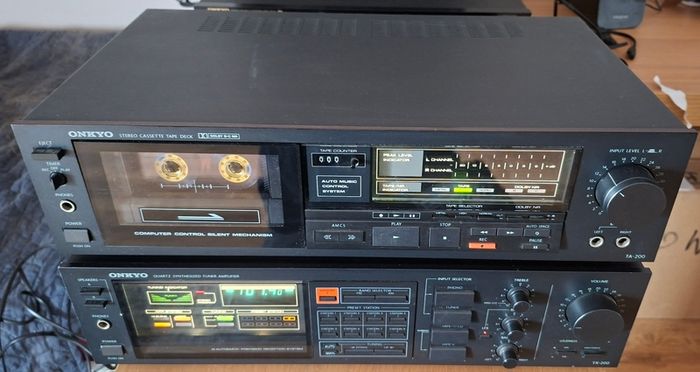

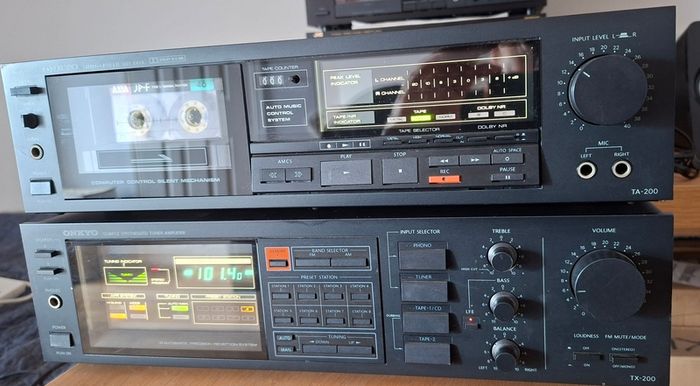

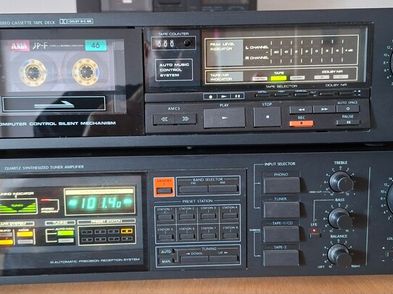

For sale: Onkyo TA-200 Stereo Cassette Deck + Onkyo TX-200 Quartz Synthesized Tuner Amplifier
Both in very good visual and technical condition.

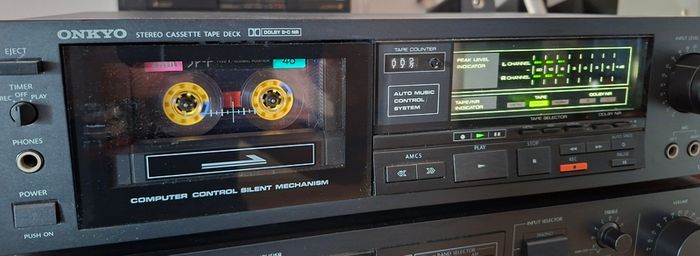

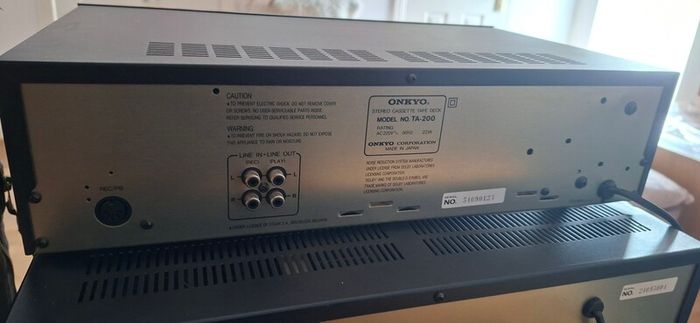

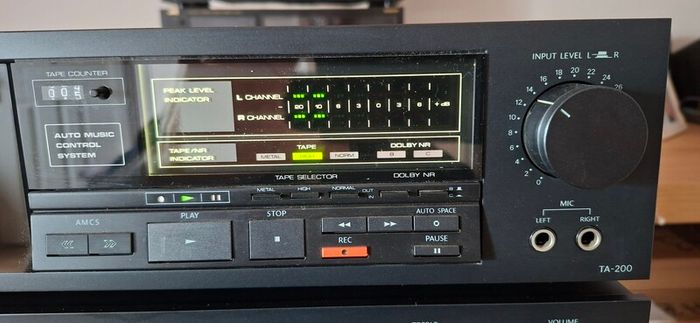

TA-200
Years of manufacture: 1984 - 1985
Made in: Japan
Color: black
Remote control: no
Dimensions: 418 x 112 x 280 mm (WxHxD).
Weight: 4.5 kg
Original price approx.: 550 DM

Specs:
Sound heads: 2
Motors: 1
Synchronous oscillations:
Tape types: Normal (I), High (II), Metal (IV).
Frequency response:
Normal: 20 Hz - 15000 Hz
Chrome: 20 Hz - 16000 Hz
Metal: 20 Hz - 17000 hz
Distortion factor: 0.05
Signal to noise ratio: 60 dB
Auto-Reverse: no
Title search: yes (AMCS)
Dolby: B and C
MPX filter: yes (cannot be switched off)
Fader: no
Pitch control: no
CD synchro recording: no

TX-200 Specs:
Year of manufacture: 1984
Made in: Japan
Color: Black/Silver
Remote control: No
Power consumption: 135W
Dimensions: 41.8 x 11.2 x 34.0 cm (WxHxD)
Weight: 7.1 kg
Original price approx.: 700 DM

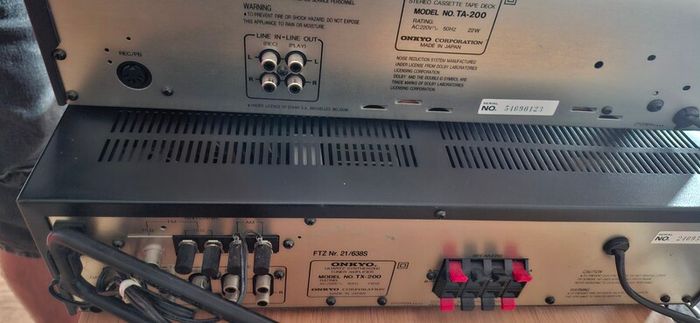

Connections:
Number of inputs:
Phono MM
Phono ground connection
CD
Tape 1/ Video (Audio)
Coaxial FM- antenna connection (75 Ohm)
AM- Antenna connection
Number of outputs:
2 x pair of speaker connectors
Headphone output 6.3 mm jack plug
Specifications:
Amplifier:
Continuous power (at distortion factor)
8 Ohm: 2x 38 Watt, (0,08 % distortion factor 20- 20 khz)
4 Ohm: 2x 50 Watt, (1 khz DIN)
8 Ohm: 2x 40 Watt, (1 khz DIN)
music power:
8 Ohm: 2x 53 Watt (1 khz DIN)
4 Ohm: 2x 80 Watt (1 khz DIN)
Total harmonic distortion: 0.08 %
Attenuation factor: 35 at 8 ohm
Frequency response: 20- 30.000 Hz
Phono: 85 dB

Line: 95 dB (80 dB IHF A-202)
Stereo channel separation:
Tone control:
Bass: ± 8 dB at 100 Hz
Treble: ± 8 dB at 10 khz
Loudness -30 dB:
+ 7 dB at 70 Hz,
+ 5 dB at 10 khz

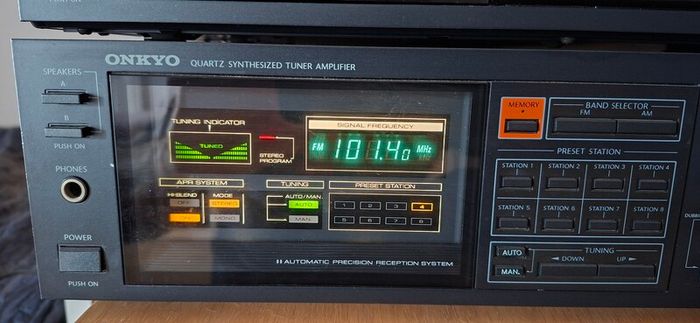

Tuner:
Reception: AM, FM
Frequencies:
FM (FM): 87.5 - 108.0 Mhz ( 50 khz steps).
MW (AM): 522 - 1,611 khz (9 khz steps)
Frequency response: 30 - 15,000 Hz
Mono: 0.15 %
Stereo: 0.3
Signal-to-noise ratio:
Mono: 71 dB
Stereo: 66 dB
IF attenuation: 85dB
IF attenuation: 90dB
RDS: no
Station memory: Yes

Reasonable offers only please.
For the right buyer I can send video of both components working.
Can be sold separately.
Shipping from €13.00
