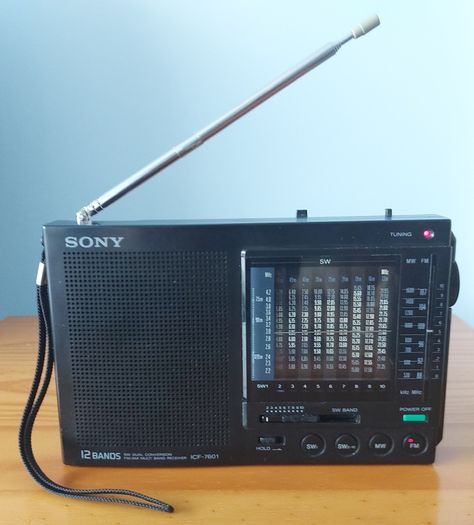

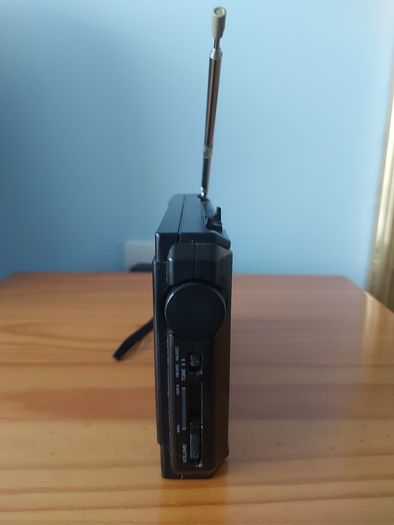

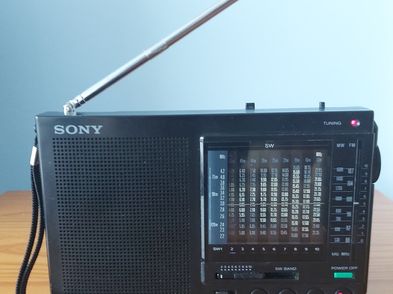

Sony ICF-7601 vintage radio, SW 1 to 9, AM and FM band.

In the last 20 years, many people have begun to buy Vintage Electronic household items. They fit very well into a modern interior and their price increases every year, and therefore this is a very wise investment of your money. One way or another, it’s up to you to decide whether to buy this Retro Radio or not. All the best to you to making your best decision.

Date of release: 1988.


Wave bands:Broadcast, Short Wave plus FM or UHF.
Power type and voltage: Batteries / addl. power jack / AA 4 × 1,5 / 6 Volt
Loudspeaker: Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.7 cm = 3 inch
Power out: 0.45 W (unknown quality)
Material: Plastics (no bakelite or catalin)

Model: FM/AM Multi Band Receiver ICF-7601 - Sony Corporation; Tokyo

Shape: Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD)
185 x 118 x 33 mm / 7.3 x 4.6 x 1.3 inch
Notes: Sony model ICF-7601 is equipped with two ICs (IC1 CX20091 for FM, AM, RF/IF, Detector, Audio Amp and IC2 uPD65005C198 for SW1/SW2-10/MW/FM band switching and Power Off).

Shortwave coverage: 120-75 / 60 / 49 / 41 / 31 / 25 / 22 / 19 / 16 / 13 m band, analog readout, no single sideband.

Net weight (2.2 lb = 1 kg)
0.6 kg / 1 lb 5.1 oz (1.322 lb)
