Description

Working 100%
I have owned this top of range Cassette deck from new since the 90's.
I rarely used it and has been in storage in my house for a long time.
I have powered it up and it is working perfectly.
Its a very nice design in that the cassettes front load just like a CD Player!

There are some marks on the top of the unit that would not be seen when rack mounted other than that is in great condition.
It does have a remote connection but I don't ever remember having a remote for the unit.I have checked that one can be bought on line for €15 but it's not needed to work the unit.

This item is Collection Only from Delvin/Mullingar Westmeath.

Here are the specs on the deck:

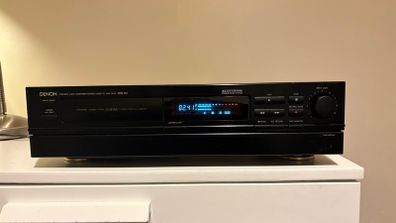

Denon DRS-810 — 3-head cassette deck with drawer loader, closed loop dual capstan, 4 motors, Dolby B/C and HX Pro

Motorized drawer loader (horizontal loading), OPEN/CLOSE also from standby, direct start with open drawer

3-head system with back tape control (TAPE MONITOR SOURCE/TAPE) and automonitor function

Closed loop dual capstan with 4 motors, non-slip winding drive, ceramic cassette stabilizer

Dolby B and Dolby C, Dolby HX Pro for more treble control, MPX filter

Automatic tape type selection (display I/II/IV) plus BIAS FINE control with center detent

Music search for the next track or track repeat, detects pauses from 4 s

REC RETURN, REC MUTE (5 s), INPUT LEVEL and recording BALANCE; Peak level display −40 to +10 dB

Linear counter with remaining time display (C-60 to C-100), memory stop, TIMER switch; Replacement remote control included

Technical data
3-head drive (record/playback combination head, double-slit ferrite erase head), closed loop dual capstan, drawer loader

4 motors (capstan DC servo motor, winding motor, actuator motor, charging motor)

Dolby B/C, HX Pro, MPX filter, automatic band selection (Normal/CrO2/Metal), bias fine control

Belt speed: 4.8 cm/s

Frequency response: 20-20,000 Hz ±3 dB (−20 dB, metal band)

Synchronization fluctuations: 0.038% (WRMS, JIS), ±0.1% (weighted peak value)

Signal-to-noise ratio: over 75 dB (Dolby C, CCIR/ARM, at 3% THD)

Channel separation: over 40 dB (1 kHz); Crosstalk attenuation: over 65 dB (1 kHz)

Premagnetization frequency: approx. 105kHz

Rewinding time: approx. 100s (C-60)

Dimensions (W×H×D): 434 × 122 × 320 mm

Weight: 6.6kg

Connections
Line input (LINE IN) RCA L/R, 50 kOhm

Line output (LINE OUT) Cinch L/R, level adjustable via OUTPUT LEVEL

Headphone output 6.3 mm jack on the front (8–1,200 ohms)

Power cord firmly connected
