Description

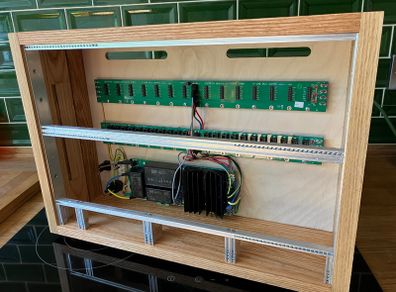

Custom bespoke 7U Eurorack case
Extremely high quality case made to a very high standard of craftsmanship.

6U 86HP - Vector rails - M2.5 sliding nuts (including 100 M2.5 black ph bolts & extra nuts)
1U row - Custom 1U to fit up to 3 x 8HP width of standard modules. Much more useful in my opinion than standard 1U setups. No-one builds like this because it’s too time consuming and costly to construct.
196HP total
Includes passive mult built into the odd space.
125mm deep for modules.

The Case:
Custom made solid irish white oak (22mm thick)
Oak was hand milled & refinished from reclaimed early c.1993 Irish kitchen doors made in the Liberties.
Custom Cork feet
Vents at top and bottom in rear panel (removeable) to aleveate heat buildup in the case. Good for analog and power hungry digital modules to keep them cool and extend the life of the components in the modules.

Power:
Doepfer PSU3
+12V 2A / -12V 1.2A / +5V 2A
2 Rows of busboards, 1 x V2 Doepfer (14 headers) 1 x V6 Doepfer (22 shrouded headers)
Mains IEC input on rear with switch.
4mm Banana Ground connection for connecting your 0V / GND to other cases.
Heavy ground bonding (2.5m2) within case PCBS to pull 0V down as much as possible.
All voltage cabling kept short to reduce any potential loss.

Equivilent on Thomann is
https://www.thomann.ie/2_many_synths_eurorack_case_7u_104hp_oak.htm - €939
https://www.thomann.ie/doepfer_a_100_lc6_case_6he_psu3.htm - €489 (6U 84HP only)

Open to offers, but nothing silly please. This is an extrememly high quality piece of craftsmanship that cost 2x the asking price.
