Description

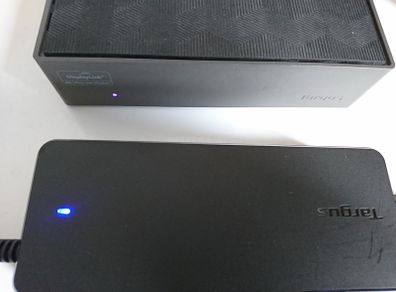

Targus DOCK190EUZ-83 USB-C Universal DV4K Docking Station with 100W Power

Excellent condition
All ports working
Complete with all the original laptop computer power jack bits
Used flawlessly with Windows and Linux systems. Dock supports many more operating systems, see further down.

SKU: DOCK190EUZ-83
Model Number: DOCK190

This dock combines performance plus power, with the ability to plug in two 4K monitors and power your laptop while saving space on your desk.
- Supports dual 4K Ultra HD monitor video via 2 DisplayPort (DP 1.2a) and 2 HDMI (HDMI 2.0) ports
- Power Delivery (PD) up to 100W thanks to its 150W power supply adapter (PSU)
- Connection Technology: USB 3.2 G1
- Works With: Windows, Apple Mac, Android, Chrome, Linux, Ubuntu (Drivers available from Targus' website)
- Fast Charging Port

Ports and features list:
- 1 x USB-C USB 3.1 Gen 1 (5 Gbit/s) ports
- 4 x USB-A USB 3.1 Gen 1 (5 Gbit/s) ports, includes one port marked with ↯ that support BC 1.2 (USB Battery Charging revision 1.2) and iOS device charging at 2.4A max
- 2 x HDMI 2.0 ports
- 2 x DisplayPort (DP++, DP 1.2a) ports
- 1 x Ethernet RJ45 port
- 1 x Audio in and out combo port
- 1 x Kensington Security Slot (also called a K-Slot or Kensington lock)
- 2 x screw pitch on the bottom of the dock to fix the device on or under a desk for example
- 1 x USB-C to USB-C host cable (detachable)
- 7 x Power tips included to power legacy hosts, see list below
- Colour: Black and Grey
- Dimensions: 17.3 cm wide, 8.37 cm deep, 4 cm tall
- Weight: 408g

What is included with the dock for this ad:
- Targus branded USB-C Male to USB-C Male Cable 95cm, 5Gbps
- USB-C to USB-A Adapter (10cm) (part #ACC1104GLX) for target computer lacking USB-C port (older laptop computers for example)
USB Type-C Female Port
USB Type-A Male Connector
USB 3.2 Gen 1 (5 Gb/s)
- DC cable to power tip, 1M (part #511-0459-001C)
- Seven (7) power tips included to power legacy hosts
PT-3I2 (Lenovo, IBM)
PT-3A (Acer, Gateway)
PT-3H (Dell)
PT-3H2 (HP)
PT-3P (Acer, Asus, Compaq, Dell, Fujistu, Gateway, HP, IBM/Lenovo, Toshiba)
PT-3W (Compaq, Dell, HP)
PT-3X9 (Lenovo, IBM)
- Targus original 150W power supply adapter (PSU) model APA151 for DOCK570, DOCK190, DOCK182, DOCK177; AC to DC, 20.5V, 7.32A, Desk type, barrel output, level VI
Built-in 95cm power cable with barrel jack to power the dock
Built-in power supply protection: Ensure safe use with over voltage, over current, and over temperature protection
AC input: 100-240V~, 2.5A, 50-60Hz
DC output: 20.5V, 7.31A, 150W
Does not include AC "cloverleaf" or "Mickey Mouse" power cable

Overview:
Create a dual beyond HD video workstation or connect a single 2K monitor with the Universal USB 3.0 DV Docking Station. It delivers integrated power and charging, and it’s designed to support multiple host platforms and brands for a broad range of compatibility with peripherals and devices. With five USB 3.0 ports (including one that’s high-powered for charging devices and one that’s Type-C), plus an Audio In/Out port for speakers, mics, or headphones, it’s easy to customise your workstation. The integrated Gigabit Ethernet connection is more secure and faster than most Wi-Fi connections. Charging tips are included so that the dock can power most major laptop brands, and they’re all neatly stored within a removable compartment in the dock.

Supports Dual DisplayPort and HDMI Monitors:
Access the latest display technology with two DisplayPort ports that support dual DisplayPort monitors, dual HDMI monitors, or a mix of the two. Create a high-performance dual monitor workstation with crisp, clear images at resolutions up to 4096 x 2160 p60 24bpp color.

Innovative Design:
A compact industrial design makes this dock a sure fit for shrinking desktops and tight spaces. Elements like stacked ports add functionality in a reduced footprint. The dock is low-profile and compact, so it’s an integrated part of your desktop environment.
