Description

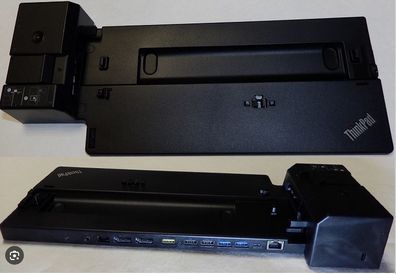

Lenovo 40AH - ThinkPad Pro Docking Station - USB-C - With NO Key - No PSU

Condition: Used in working order (Please refer to the pictures provided for cosmetic condition)

Model Number/s: 40AH - SD20Q11985

Package Contents: 1 x Lenovo 40AH Dock With NO key and NO PSU. (PSU is sold separate ).

ThinkPad Pro Docking Station (40AH) provides a docking experience for Large Enterprise ThinkPad customers. The innovative side-connector, designed exclusively for ThinkPad notebooks, provides a driver-free way to connect conveniently and securely to a range of USB accessories and external displays, while rapid charging support and a mirrored power button make going mobile even easier. Designed for large enterprise environments, Dock without LAN chip, can support Wake on LAN, PXE Boot, vPro or DASH, which rely on System design.

Compatibility:

Lenovo ThinkPad T14 (20S3/20S2),

Lenovo ThinkPad T14 Gen 1 (20UD/20UE),

Lenovo ThinkPad T14s (20UH/20UJ),

Lenovo ThinkPad T15 Gen 1 (20S6/20S7),

Lenovo ThinkPad T15 Gen 2 (20W4/20W5),

Lenovo ThinkPad T480s (20L7/20L8),

Lenovo ThinkPad T495 (20NJ/20NK),

Lenovo ThinkPad T580 (20L9/20LA),

Lenovo ThinkPad T590 (20N4/20N5),

Lenovo ThinkPad X13 Gen 2 (20WK/20WL),

Lenovo ThinkPad X280 (20KF/20KE),

Lenovo ThinkPad X395 (20NL)

Packed Physical Specifications

Approximate Length: 422 mm (16.61 in)
Approximate width: 200 mm (7.87 in)
Approximate height: 86 mm (3.39 in)
Approximate weight: 1.95 kg (4.29 lbs)

Unpacked Physical Specification

Approximate Length: 378 mm (14.88 in)
Approximate width: 159 mm (6.26 in)
Approximate height: 54 mm (2.13 in)
Approximate weight: 0.765 kg (1.69 lbs)

Three USB 3.1 gen1 (5Gbps)
Two USB 2.0 with 1 always-on USB charging
USB-C port (5Gbps, 5V 3A power)
10/1000 Gigabit Ethernet
Two DisplayPort 1.4
Stereo/Mic Combo Audio Port
Security: Kensington Lock Slot

https://support.lenovo.com/us/en/solutions/pd500174-thinkpad-pro-docking-station-overview-and-service-parts
