Description

€100 each
2x available

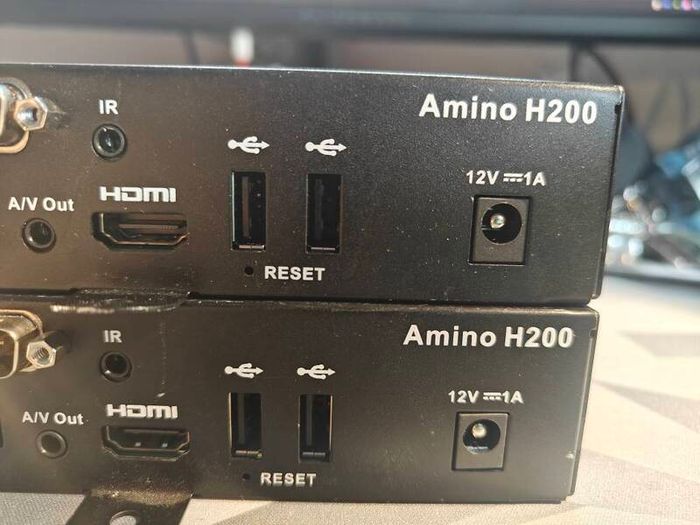

No PSUs. Takes 12V/1A

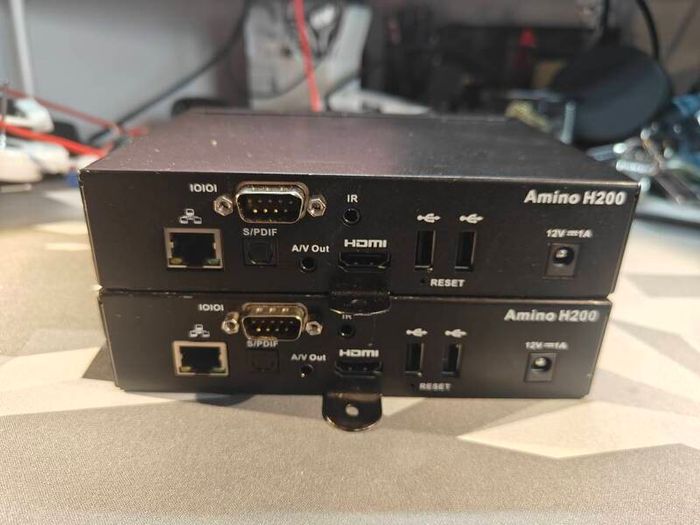

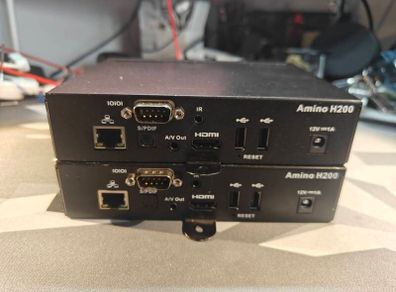

Amino H200 4K Digital Signage Player optimised to deliver high quality content to digital signage and hospitality applications

The H200 is designed for “out of sight” operation to deliver content across a diverse range of environments – from in-room hospitality through public space signage and advertising applications where demand for 4K-based services is growing rapidly.

Sector-specific features include a Power over Ethernet (PoE) capability for single-cable installation that reduces installation time and cost. A serial display port, IR extender port and VESA mounting all support out-of-sight operation, easy installation, and promote a simplified user experience.

In a rugged case, the device combines a high performance AV1 and HEVC capability processor with graphics acceleration for fast rendering of high quality graphics. HEVC capability enables the delivery of high quality images in areas where bandwidth or physical head-end storage needs to be optimised.
Key Features of Amino H200

AV1/HEVC 4Kp60 provides high quality images at reduced bandwidth
Out-of-sight operation using TVI serial interface or IR extender port as standard
Tamper-proof, ruggedized chassis
Integrated mounting brackets (VESA) to fit behind a screen for digital signage apps or underneath a desk for hospitality apps
Power-over-Ethernet for single cable install

Specifications of Amino H200

Processing
CPU: 21.8K DMIPs
DRAM: 2GB RAM (4GB option)
Flash: 8GB eMMC Flash (32GB option)
Video & Audio Formats
Video Resolution and Output Standards: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p60, 2160p60 10-bit (4kp60), HDR10+ and HLG
Audio Codecs: Dolby Digital, Dolby Digital Plus, LC-ACC & HE-AAC
Video Codecs: AV1, HEVC/H.265, AVC/H.264 (MPEG-4, PART 10), MPEG-2, VP9
IP Streaming Formats: RTSP, HLS, LL-HLS, DASH, LL-Dash, SRT, HTML5 Video-tag
Interfaces
Digital Video: HDMI 2.1
Analog Video: CVBS + L/R Audio
Ethernet: 10/100/1000
USB 2x USB 2.0
Digital Audio: Optical S/PDIF
Serial Port: RS232/TVI interface
Remote Control Support: IR 36KHz | 3.5mm IR Extender Port
Status LEDs: Power/Standby
Memory: Internal SD Card Slot
Wi-Fi: Optional External USB 2x2AC Wifi Adapter
Software
Javascript SDK for WebApplication Development
REST API for Device Management
Compatible with Orchestrate Cloud Device Management
Pre-integrated CMS solutions
Native Application Support
