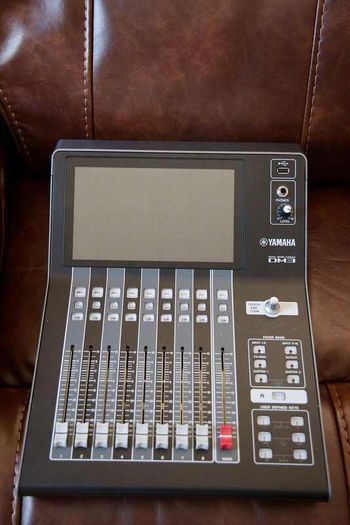

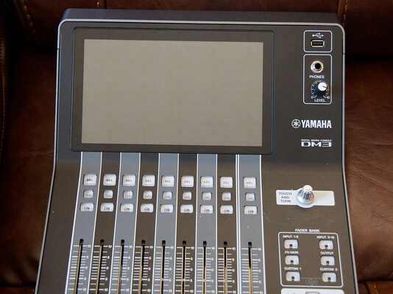

Yamaha DM3S

• Inputs: 16 mono, 1 stereo, 2 FX return
• Buses: 1 Stereo, 6 Mix, 2 FX, 2 Matrix (input-to-matrix supported)
• Sampling Rate: 96 kHz or 48 kHz
• Faders: 9 motorized faders (8 channel + 1 main)

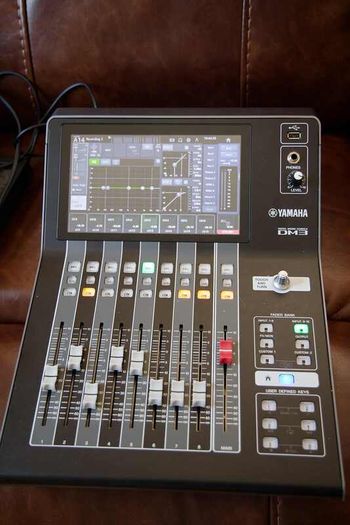

• Display: 9-inch multi-touch screen plus 1 "Touch and Turn" rotary encoder [1, 2]

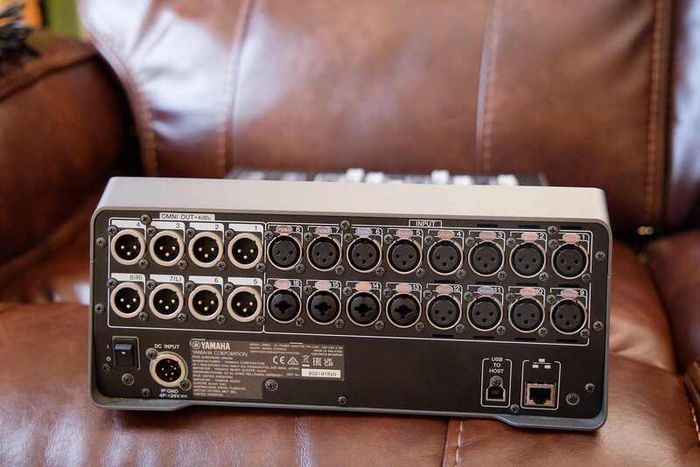

I/O and Connectivity
• Analog Inputs: 16 Mic/Line (12 XLR + 4 XLR/TRS phone combo)
• Analog Outputs: 8 XLR
• Network/Dante: RJ-45 network port; Dante equipped on the DM3 model (2 etherCON primary/secondary ports, 16x16 audio), omitted on the DM3 Standard
• USB Interface: 18-in/18-out audio interface via USB Type-B (PC/Mac); 2-track recording/playback via USB Type-A storage [1, 2, 3]
Physical & Electrical
• Dimensions (W x H x D): 320 mm × 140 mm × 455 mm (12.6" x 5.6" x 18.0")
• Weight: 6.5 kg (14.3 lb)
• Power Requirements: DC 24 V / 2.5 A (using included PA-L500 adapter, 100V-240V
