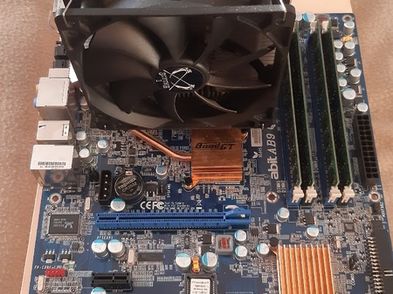

ABIT AB9 QuadGT LGA 775 ATX Intel Pentium 4 Core 2 Duo Motherboard

ABIT AB9 QuadGT LGA 775 ATX Intel Pentium 4 Core 2 Duo Motherboard

PLEASE READ CAREFULLY.
Collection only.
Cash only, no swaps, no Revolut.

Comes with;
3.06GHz Intel Pentium Core 2 Duo E6850 (32/64-bit) ,
8GB Ram (4x 2GB),
Original IO backplate,
Scythe heatsink and fan <- nearly silent operation.

Ideal for a late XP machine but It is currently set up to be a very powerful early Windows 7 machine.
Can also be used with Vista if you want.

LGA 775 compatibility is immense. You are able to run DOS all the way through to Windows 10.

CPU
Support Intel Core 2 Duo / Quad processors with 1066/800MHz FSB
Support Intel Core 2 Quad/Duo(Extreme Edition) & Pentium Dual Core & Pentium Extreme
Edition & Pentium D & Pentium4 Processors
Digital PWM Designation provide high quality and efficient power
Chipset
Intel P965 / ICH8R Chipset
Memory
4 X 240-pin DIMM sockets support max. memory capacity 8GB
Supports Dual channel DDR2 800/667/533 Un-buffered Non-ECC memory
LAN
On board PCI Gigabit LAN controller supports 10/100/1000M Ethernet
Audio
On board 7.1 CH HD Audio CODEC
Supports auto jack sensing and optical S/PDIF In/Out
HDMI ready header (SPDIF header)
Expansion Slots
1 x PCI-E X16, 1 x PCI-E X16 (x4 bandwidth), 1 x PCI-E X1, 2 x PCI
Internal I/O
1 x Floppy Port supports up to 2.88 MB
1 x ATA 133/100/66/3 IDE connector
6 x SATA 3Gb/s connector
1 x IEEE1394, 3 x USB header (support 6 ports)
1 x FP-Audio
Back Panel I/O
1 x PS/2 Keyboard, 1 x PS/2 Mouse
abit Silent OTES
1 x S/P DIF In, 1 x S/P DIF Out
2 x eSATA
7.1 CH Audio connector (Front, Line-in, MIC-in, Center/Subwoofer, Surround, Rear Surround)
4 x USB 2.0, 1 x RJ-45 LAN connector, 1 x 1394
Clear CMOS Switch
Serial ATA
6 x SATA 3Gb/s offer by Intel ICH8R support Intel Matrix Storage Tech(AHCI & RAID0/1/5/10)
2 x eSATA 3Gb/s through JMicron JMB363 support 0,1JBOD RAID function
IEEE 1394
Supports 2 Ports IEEE 1394 at 400Mb/s transfer rate.
Form Factor
ATX form factor 305 x 245mm
PCB Color: Blue
RoHS
100% lead-free process and RoHS compliant
abit Engineered
abit µGuru Technology
abit Silent OTES Technology
100% Low ESR and high ripple conductive polymer aluminum solid state capacitor
100% Japanese Capacitor
EZ for CCMOS
On board LED Lighting

Of the 6 onboard SATA, one fell off (SATA 6) and one does not work any more (SATA4).
Aside from that this is working perfectly.

Drivers (NT/2K/XP/Server 2003/Vista):
https://www.nodevice.com/drivers/motherboard/abit/ab9-quadgt

More information;
http://abit.ws/page/en/motherboard/motherboard_detail.php@pMODEL_NAME=AB9+QuadGT&fMTYPE=LGA775

Please see my other ads, I am selling RAM, Hard Drives, Motherboards, Graphics Cards, PC Cases and PSUs.
Everything you need to build a retro or vintage machine.

I’m doing a big clear-out at the moment and these are surplus to my needs.

Collection only from Tallaght (near The Square).

As per 'Adverts.ie' T&C, If you make an offer on an advert and don't want it, unless you withdraw your offer BEFORE I accept your offer, Negative feedback will be left and you will be reported and blacklisted.
If an offer is accepted & you don't reply to my initial PM within 24 hours, Negative feedback will be left and you will be reported and blacklisted.
As per 'Adverts.ie' T&C, This ad is collection only, if you make an offer and ask for postage, Negative feedback will be left and you will be reported and blacklisted.
