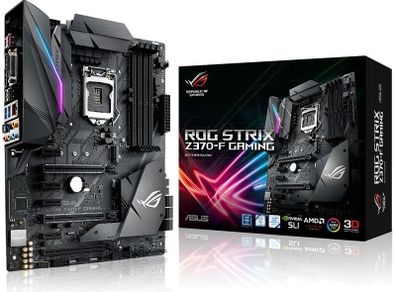

ASUS ROG Strix Z370-F Gaming LGA 1151 (300 Series) Intel Z370 HDMI USB 3.1 ATX Intel Motherboard

• Supports 8th Gen Intel Core i3/i5/i7 processors for Socket LGA1151

Chipset
• Intel Z370 Chipset

Main Memory
• 4 x DDR4 memory slots, support up to 64GB
- Supports DDR4 Up to 4000MHz
• Dual channel memory architecture
• Supports ECC, un-buffered memory
- ECC UDIMM memory (non-ECC mode)
• Supports Intel Extreme Memory Profile (XMP)

Slots
• 3 x PCIe 3.0 x16 slots (Modes: 16, 8, 4)
• 4 x PCIe 3.0 x1 slot

Onboard Graphics
• 1 x HDMI port (1.4b)
• 1 x Displayport port (1.2)
• 1 x DVI-D

Multi-GPU
• Supports 3-Way AMD CrossFire Technology
• Supports 2-Way NVIDIA SLI Technology

Storage
• Intel Z370 Chipset
• 6 x SATA 6Gb/s ports
• 2 x M.2 slots (Supports Intel Optane Memory – 8th Gen Processor required)

RAID
• Intel Z370 Chipset
- Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices

Audio
• SupremeFX (Using Realtek ALC 1220)
- 7.1-Channel High Definition Audio
- Supports S/PDIF output

LAN
• 1 x Intel i219 Gigabit LAN controller

Back Panel I/O Ports
1 x DVI-D
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.1 Gen 2 Type-A + USB Type-CTM
2 x USB 3.1 Gen 1 (blue)
2 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s)

Dimension
• 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
• ATX Form Factor



used, very good condtion, 100% working

NO BOX
