Description

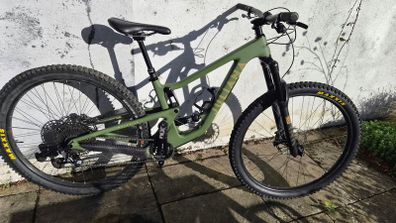

Product Juliana Maverick R Carbon C Bike

Condition: used, in excellent condition with only minor scratches

Specs:
Model Year 2021
Intended Use
Trail
Enduro / All-Mountain
Rider
Women
Sizes and Geometry
SM (Low, High)

MD (Low, High)

LG (Low, High)
View Full Geometry
Wheel Size
29"
Frame Material
Carbon Fiber
Frame Material Details C carbon, molded chainstay and down tube (lower and shuttle guard) protection
Rear Travel
140mm
Rear Shock FOX FLOAT DPS Performance, 210mm x 52.5mm
Fork RockShox Yari RC
Fork Travel 150mm
Head Tube Diameter Tapered, 1.125" top, 1.5" bottom
Headset Cane Creek 10 IS Integrated (IS41/52)
Handlebar Race Face Aeffect R
Stem Race Face Ride
Grips Juliana
Brakes SRAM G2 R, 4-piston, Avid CenterLine 180mm rotors
Brake Levers SRAM G2 R
Drivetrain
1x
Shifters SRAM NX Eagle, 12-speed
Front Derailleur None
Rear Derailleur SRAM NX Eagle, 12-speed
ISCG Tabs ISCG05
Chainguide None
Cranks SRAM NX Eagle DUB
Chainrings SRAM NX Eagle, 30 tooth
Bottom Bracket SRAM DUB, 73mm BSA threaded
Pedals None
Chain SRAM NX Eagle, 12-speed
Cassette SRAM NX Eagle PG-1230, 12-speed, 11-50 tooth
Rims WTB ST i30 TCS 2.0, 32 hole
Hubs Front: SRAM MTH 716, 15x110mm Boost, Torque Caps
Rear: SRAM MTH 746, 12x148mm Boost, HG driver
Spokes Sapim Race
Tires Front: Maxxis Minion DHR II, 3C MaxxGrip, EXO, TR, 29" x 2.4"
Rear: Maxxis Minion DHR II, 3C, EXO, TR, 29" x 2.4"
Saddle Juliana Segundo
Seatpost SDG Tellis dropper
Seatpost Diameter 31.6mm
Seatpost Clamp Single bolt, 36.4mm
Rear Dropout / Hub Dimensions 148x12mm Boost
Max. Tire Size 29" x 2.4"
Bottle Cage Mounts One inside front triangle
Colors Commando Green and Tan
Warranty Lifetime frame and bearings
Weight
33 lb 2.5 oz (15,040 g)
Miscellaneous • Lower-link VPP suspension
• Geometry adjustable via flip chip in lower link shock mount
