Description

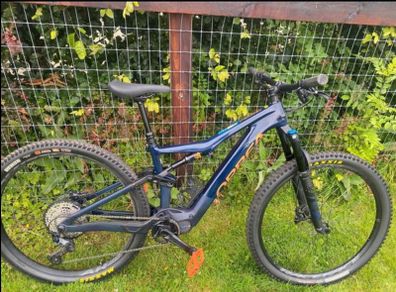

Orbea Rise M20 '22 Season 2022/23
As new
Used once, has 30km done
Registered with Orbea
Receipt available

Brand:Orbea
Rider Synergy
A new riding experience that enhances the joy of traditional trail riding with smooth support that feels as natural and alive as your own body.

RS is a new philosophy – a completely integrated system that becomes a reality when Power, Range, Interface and Weight are considered together. Whether you crave riding greater distances, reaching more epic locations, improving efficiency or increasing the frequency of your adventures, Rise beyond expectations and discover the new standard in MTB.

RS Power
Working jointly with Shimano, Orbea developed the proprietary electronics and batteries while Shimano configured their EP8 motor to work perfectly running our specific RS firmware. The EP8 RS power band feels alive, smooth and responsive, echoing your input and cadence.

RS Range
Rise is intended for big rides, capable of 8 hours and over 4,000m of climbing in Eco mode. Rise features a modular battery solution that provides up to 612wh, combining a very light and compact 360wh main battery integrated in the down tube with a patent-pending 252Wh range extender.

RS Interface
The elegance and simplicity of Rise is undeniable. Many riders spend hours removing excess weight, noise and visual distractions from their bikes.

We have embraced data collection with cycling computers and smartphones but often stop short of attaching large displays on our handlebars or top tubes.

RS Weight
The RS Motor, Battery and Electronics are lighter than other eBike systems by over half. Rise can weigh as little as 16.5 kg. The beauty of the RS system is that assistance torque and power is provided within a range where normal, high-quality trail bike components can be used.

1.5X
The RS concept allows a great day on the trails because the lighter bike, lower power consumption and of course, the pedal-friendly weight and assistance extends battery life by a factor of over 1.5x. This means the 360Wh RS Battery of Rise delivers ride times and ranges similar to a 540Wh battery in a typical eBike.

Main Battery
The 2.2Kg main battery might be one of the lightest and slimmest examples out there. Housed in a strong and reliable alloy case, this energy bank is based on the newest 21700 cell that provides a higher rate of charge/discharge and ultimately much better battery life and heat management.

Switch & EW-EN100
The RS Interface is sleek, but doesn’t lack expandability. The simplest configuration consists of a discreet rocker switch near the left brake lever to control assistance level and a small, inline junction box with two tiny LEDs that provides support mode info and smartly broadcasts wireless data.

One Button & Clean Clip
The power button is tucked away by the bottom bracket, and all wires are routed internally. The same with the charging port on the side of the seat tube. Protected by a tough water and dirt proof cover, it has an integrated Clean Clip feature that holds plugs tightly when using the RS Range Extender or just sealing the connectors when closed.

OMR Frame
Orbea Monocoque Race (OMR) fames add high modulus and high strength fibres to a standard layup to improve stiffness-to-weight ratios. Bladder molding with EPS forms and PU headtube and bottom bracket inserts stop wrinkling and unconformities in critical zones, allowing less carbon to be used while maintaining strength.

Specifications:

FRAME:Orbea Rise OMR 2021 140mm travel 29" C-Boost 12x148
SIZE:S, M, L, XL
SHOCK:Fox Float DPS Performance 3-Position Evol custom tune 210x55mm
WHEELSET:Race Face AR 30c Tubeless Ready
FORK:Fox 34 Float Performance 140 3-Position QR15x110
HEADSET:Acros Alloy 1-1/8 - 1-1/2" Integrated
SHIFTERS:Shimano SLX M7100 I-Spec EV
BRAKE:Shimano M6100 Hydraulic Disc
CRANK:Etherteen Plus Alu 165mm
CRANKSET:e-THIRTEEN e*spec Direct Mount 32T Boost
REAR DERAILLEUR:Shimano SLX M7100 SGS Shadow Plus
CHAIN:Shimano M6100
STEM:OC1 3D Forged 35mm interface 7º
CASSETTE:Shimano CS-M7100 10-51t 12-Speed
TYRES:Maxxis Dissector 2.40" 60 TPI 3CMaxxTerra Exo TLR/ Maxxis Rekon 2.40" 120 TPI 3CMaxxTerra Exo+ TLR
CHARGER:Orbea RS Charger (36V-2A)
E-BIKE REMOTE:Shimano E7000 switch unit for assist
HANDLEBARS:OC1 35mm 12mm Rise 780mm Consult other components
SEATPOST:OC2 Dropper 31.6mm
SADDLE:Fizik Taiga S-alloy rail
