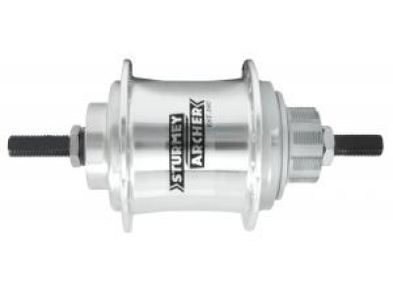

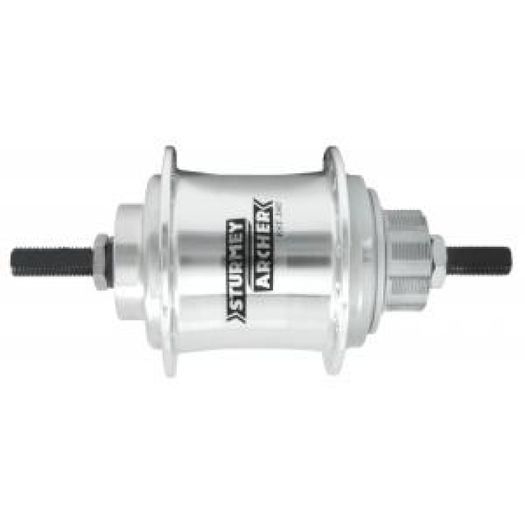

Sturmey Archer 3 Speed Fixed Sprocket Hub With Bar-End Shifter - Less Sprocket

Condition: New

*****OUT OF STOCK*****PLEASE CHECK BACK SOON*****



Sturmey Archer 3 speed fixed sprocket hub with bar-end shifter - less sprocket.

Type: fixed gear

Speed: 3 speed

Hub shell material: 6061 Aluminium

Gear raio overall range: 160%

Gear ratio 1: 62.5% (-) 37.5%

Gear ratio 2: 75% (-) 25% - (gear 1 (+) 20%)

Gear ratio 3: 100% direct drive (gear 2 (+) 33%)

Axle diameter: 13/32" slotted

Axle length: 174mm

Overall locknut dimension: 130mm

R: axle protrusion length: 21mm

L: axle protrusion length: 23mm

Pitch circle diameter: 67.0mm

Flange width: 56.6mm

Centre to flange right: 24.0mm

Centre to flange left: 32.6mm

Spoke compatibility: 14G

Sprocket teeth 1/8": 13-22T

Sprocket teeth 3/32": 12-22T

Chain line: 42, 43, 44, 45mm

Indicator: white

Finish: high polish double anodized

Weight: 990g
