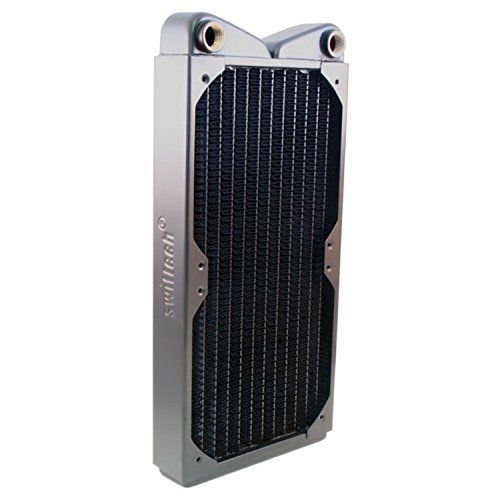

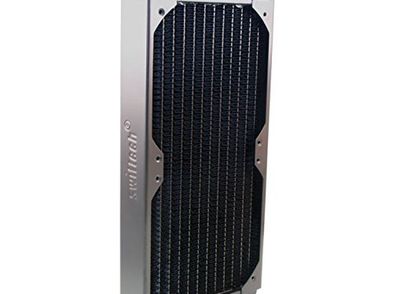

Swiftech MCR220-XP eXtreme Performance Radiator 240, 120mm x 2, Dual Fan


Product Description
The MCRx20-XP (eXtreme Performance) series radiators are high-performance liquid-to-air heat exchangers optimized for use with medium speed 120mm fans and specifically engineered in a slim for factor for high-end liquid cooled Personal Computers.

The XP series derive from the Quiet Power technology (QP series) first introduced in 2005 and both series share the exact same dimensions. They differentiate themselves by a higher fin-per-inch (FPI) count where the QP series feature a 12 FPI specification versus 20 FPI for the new XP series. A higher FPI count means that the XP series are more efficient at dissipating heat in the higher RPM fan ranges (from 1200 and above). When large heat loads are involved for example a CPU and GPU(s) in the loop, this may translate into several degrees improvement in coolant temperature.


Specifications:
Optimized fin-density for maximum heat dissipation with medium speed fans (20 fpi)
2-pass, single row construction
Brass body and brass tubes
Louvered copper fins
Plenum Style: Self-purging brass plenum chambers
Slim form factor (34mm)
High-durability acrylic paint: Satin black finish
M3.5 threaded fan and case-mounting holes
Hub specifications & fittings compatibility:
G1/4" flat face threaded hubs, compatible with industry standard captive o-ring type fittings (such as Swiftech "Eurostyle" series of barb fittings)
ROHS compliant
Weight:

MCR220-XP 1lb 8oz (594g),

Screws require for radiator:
M3,5 x 6mm screws (4 each per 120mm fan) - Alternatively you may use 6-32 x 1/4" (not included)
M3,5 x 30mm screws (4 each per 120mm fan) - Alternatively you may use 6-32 x 1 1/8" (not included)
