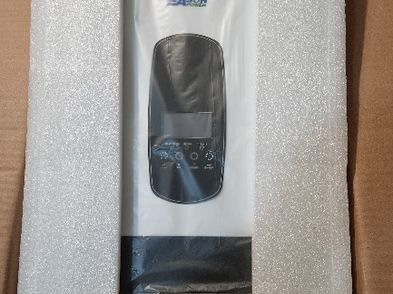

6.2kW 6200W 48V Off-grid or on-grid backup Solar Inverter Pure Sine Wave

Condition: New

6.2kW 6200W Off-grid or on-grid backup Solar Inverter DC 48V to AC 230V MPPT ATS


Can run many appliances simultaneously not exceeding 6200W total power.
If load exceeds 6200W then it switches automatically to electricity from ESB until load drops.

Can be used to run appliances from 48V battery bank when ESB electricity is not available,
and batteries can be recharged by ESB, Solar Panels or generator.



Model: ISolar-SMH-II-7KW

Rated Power: 7000VA/6200W

INPUT

Voltage: 230Vac
Selectable Voltage Range: (170Vac~280Vac)±2%；(90Vac-280Vac)±2%
Frequency Range: 50Hz/60Hz (Auto detection)

OUTPUT

AC Voltage Regulation (Batt.Mode): 230VAC±5%
Surge power: 14000VA
Transfer Time: 10ms(for personal computers)/20ms(for home appliances)
Waveform: Pure Sine Wave

BATTERY&AC CHARGER

Battery Voltage: 48VDC
Floating Charge Voltage: 54VDC
Over-charge Protection: 61VDC
Maximum charge current: 80A

SOLAR CHARGER

MAX.PV Array Power: 6000W
MPPT Range Operating Voltage: 55-450VDC
Maximum PV Array Open Circuit Voltage: 450VDC
Maximum Charging Current: 110A
Maximum Efficiency: 98%

PHYSICAL DIMENSIONS

Dimension D*W*H(mm): 423x310x120mm
Net Weight (kgs): 8.0kg
Communication Interface: RS232/RS485(Standard)/WIFI

OPERATING ENVIRONMENT

Humidity: 5% to 95% Relative Humidity (Non-condensing)
Operating Temperature: -10°Cto55°C
Storage Temperature: -15°Cto60°C

Good for power outages and when reliable power is needed.
