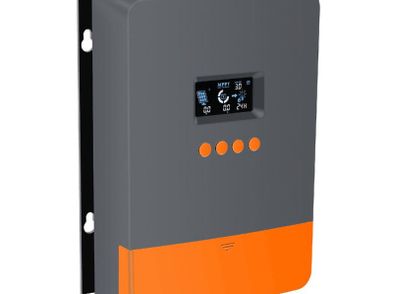

60A 4-Stages MPPT Solar Recharger Controller 12/24/36/48V Automatic Detect LCD Display With Blacklight Regulator For Colloid

Condition: New

Specifications:
Name: Solar Controller
Material: plastics+aluminum
Model: POW-M60-PRO
Nominal system voltage: 12/24/36/48V Auto Recognition
Rated battery current: 60A
Rated load current: 6A
Max. capacitive load capacity: 10000μF
Battery voltage: 9V-70V
Max solar input voltage: 190 VDC (25°C), 185VDC (-25°C)
Max. power point voltage ranges: Battery voltage +2V to 120V
Max. solar input power: 720W/12 V; 1440W/24V; 2100W/36V; 2800W/48V
Self-consumption: 0.7W- 1.2W
Conversion efficiency: ≤ 98%
MPPT tracking efficiency: > 99%
Temp. compensation: -3mV/°C/2V (default)
Mounting holes: 4* φ10mm
Max terminal size: 25m㎡ 4 AWG
Working temperature: -35℃ to 45℃
Humidity ranges: ≤95% (NC)
Enclosure: IP32
Altitude: <3000m
Item size: 216 * 115 * 50mm / 8.50 * 4.53 * 1.97in
Item weight: 1330g / 2.93lb
Package size: 230 * 165 * 72mm / 9.06 * 6.50 * 2.83in
Package weight: 1650g / 3.64lb

Packing List:
1 * Solar Controller
Delivery Takes 4-10 Days
