Cnc 3018 Router Kit With Laser Engraver 500mw Laser Engraver Grbl Injection

Condition: New

Please read the description
Payment via Revolut/ PayPal/ Ireland Bank Transfer
Brand New! available for delivery only
No collection
No Cash on delivery
delivery nationwide ireland:
Delivery Time period 4_6
days

Delivery charges 15€.
Features & Details

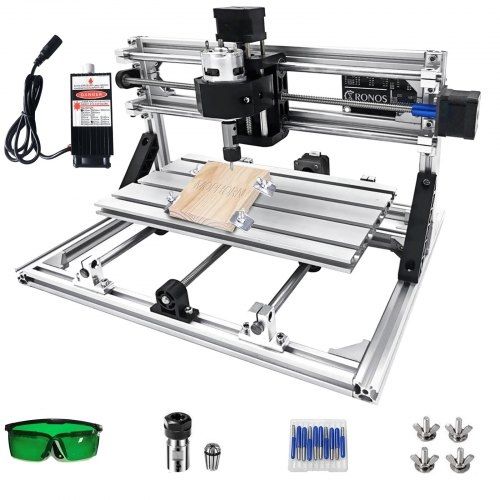

CNC 3018 Router Machine: CNC 3018 PRO is an upgraded version of 3018 CNC. The 3Pin laser driver interfaces support PWM, TTL functions for full function laser engraving. We provide a detailed user manual, assembly instructions, and installation video for your convenience. CNC engraving materials: foam, wood, plastic, acrylic, resin, carbon fiber, etc. Laser engraving materials: wood, paper, plastic, leather, rubber, PVC, horn, crab shell, ivory, resin, painted metal surfaces, etc.

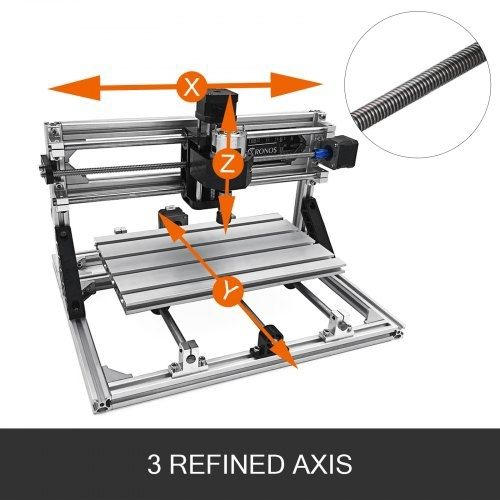

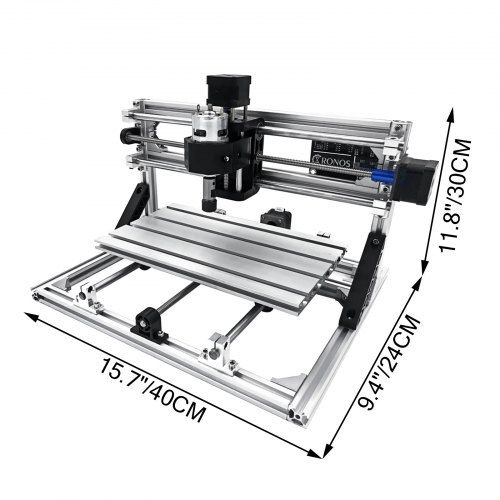

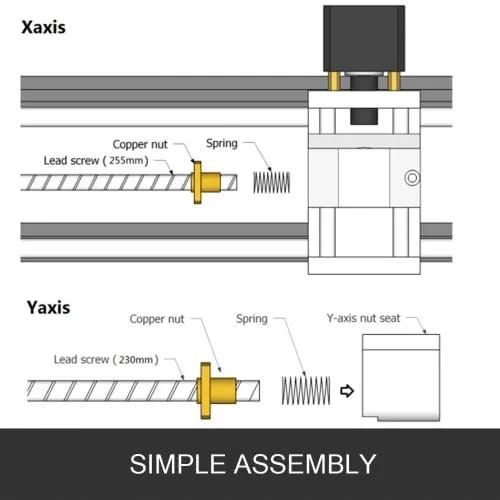

Large Working Area: The effective engraving area of this engraving machine is 11.8(X) x 7.1(Y) x 1.8(Z) inches. Three refined axes are designed to achieve plane engraving. With the knob, the axes can be moved manually, which facilitates the carving tool settings. The driving units consist of stainless steel screw rods. It uses double copper nuts to clear round trip errors.

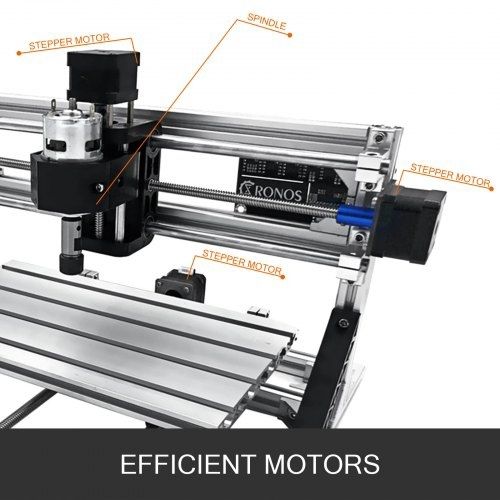

Excellent Motor: This CNC engraving machine is equipped with three stepper motors(1.3A; 12V; 0.32 Nm torque) and 775 DC 24V spindle motors with a rotational speed of 10000 r/min. And the engraving machine supports Windows 7, 8, 10, 11, Linux, macOS, and other systems. You can directly import JPG, BMP, PNG, and DXF files for laser engraving. The CNC software supports G-code files for tool-based engraving, relief carving, and cutting.

GRBL Control: The integrated GRBL control board could be connected to a computer via a USB interface. The 3Pin laser driver interfaces support PWM, TTL functions for full function laser engraving. (Offline controller not included )

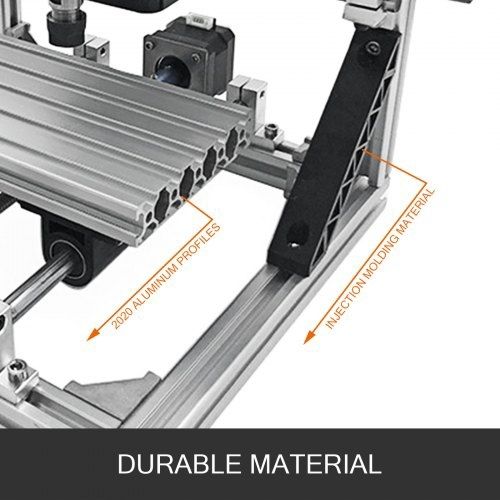

Sturdy Material: The frame is made of aluminum alloy and bakelite for strength and precision, with thickened side plates to improve X-axis accuracy and durability for all-day use. CNC engraving parameters: Non-metals: Feed rate 100-300 mm/min, soft metals: 20-100 mm/min; single cutting depth: non-metals 0.5-1.0 mm, soft metals 0.1-0.3 mm. Laser engraving parameters: Combustible materials: speed 500-1000 mm/min, power 80%-100%.
