Power Inverter 3KW DC 12V to AC 230V Pure Sine Wave Off Grid LCD Display Built-in Battery Charger

Shipping Nationwide 1 to 2 working days
Collection to be arranged
Cash on Delivery COD (Pay on Delivery )
Condition: 100% New in Box

Item: BB599


Description:

Pure sine wave delivers high quality alternating current with high efficiency. It can convert DC 12V to AC 230V, with an inversion rate of 91%, and can be applied to 12V electrical systems and standard 230V appliances.
Pure Sine Wave Inverter 3KW, Low Frequency Solar Converter 12V, Island Inverter Low Frequency Inverter Pure Sine Wave Island Inverter
Safe operation

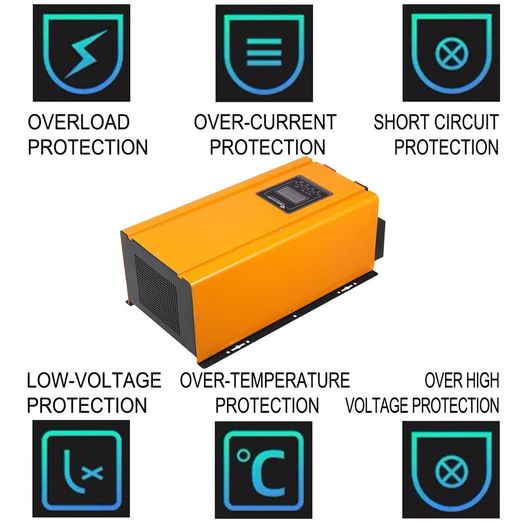

Multiple protection functions: short circuit protection, under voltage protection, over-voltage protection, over temperature protection, overload protection and over current protection.
Pure Sine Wave Inverter 3KW, Low Frequency Solar Converter 12V, Island Inverter Low Frequency Inverter Pure Sine Wave Island Inverter
Smart fan
Intelligent temperature-controlled fan: The fan is temperature-controlled, quiet and energy-saving. It only starts working when the operating temperature reaches 55℃.
Pure Sine Wave Inverter 3KW, Low Frequency Solar Converter 12V, Island Inverter Low Frequency Inverter Pure Sine Wave Island Inverter
LCD display
Various parameters can be directly displayed on the LCD screen to observe the output voltage value and battery performance.
Pure Sine Wave Inverter 3KW, Low-Frequency Solar Converter 12V, Island Inverter Low-Frequency Inverter Pure Sine Wave Island Inverter
High-quality components
The MOS transistor can withstand higher peak currents and provide a stable voltage. High-precision circuit board with clear and reasonable wiring delivers stabilized voltage precision.
Pure Sine Wave Inverter 3KW, Low-Frequency Solar Converter 12V, Island Inverter Low-Frequency Inverter Pure Sine Wave Inverter
Wide application
Applicable to various office and household appliances, such as desktop computers, notebook computers, printers, audio, TV, air conditioners, induction cookers, water heaters, and washing machines.
Pure Sine Wave Inverter 3KW, Low-Frequency Solar Converter 12V, Island Inverter Low-Frequency Inverter Pure Sine Wave
Specifications
Input voltage: 220/230/240V AC
Selectable voltage range: Wide range: 75-138V AC, 155-275V AC (for household appliances); Narrow range: 82-138V AC, 165-275V AC (for personal computers)
Frequency range: 40-70 Hz (50/60 Hz)
Output voltage regulation: 220 / 230 / 240 V AC (±10 V)
Rated power: 3000W
Surge power: 9000VA / 9000W
Efficiency (peak value): 91%
Transmission time: ＜10ms
Waveform: Pure sine wave
Battery voltage: 12V
Charging current: 75A
Quick charging voltage: 14.3V DC
Trickle charge voltage: 13.7V DC
Surge protection: 16.5V DC
Battery low voltage alarm: 10.5V DC
Low battery shutdown: 10V DC
Operating environment temperature: 55°C
Cooling: Intelligent fan
Display: Color LCD
Dimensions: 18.11 x 8.86 x 7.56 inches / 46 x 22.5 x 19.2 cm
Net Weight: 24.6kg
Humidity: 5-95% relative humidity (non-condensing)
Operating temperature: -10°C-50°C
Storage temperature: -15°C-60°C
Pure Sine Wave Inverter 3KW, Low Frequency Solar Converter 12V, Island Inverter Low Frequency Inverter Pure Sine Wave Island Inverter
Package contents
1 x Inverter
specification
Input voltage
220/230/240V AC
Selectable voltage range
Large area
Frequency range
40-70Hz (50/60Hz)
Output voltage regulation
220 / 230 / 240V AC (±10V)
rated capacity
3000W
Surge power
9000VA / 9000W
Efficiency (peak value)
91%
Transmission time
＜10ms
waveform
Pure sine wave
Battery voltage
12V
charging current
75 A
Fast charging voltage
14.3VDC
trickle charge voltage
13.7V DC
Overvoltage protection
16.5VDC
Battery low voltage alarm
10.5VDC
Shutdown when battery voltage is low
10VDC
Temperature of the operating environment
55°C
cooling
Smart fan
Advertisement
Color LCD
Dimensions
18.11 x 8.86 x 7.56 inches / 46 x 22.5 x 19.2 cm
Net weight
24.6kg
humidity
5-95% relative humidity (non-condensing)
operating temperature
-10°C-50°C
Storage temperature
Link to download15°C-60°C
