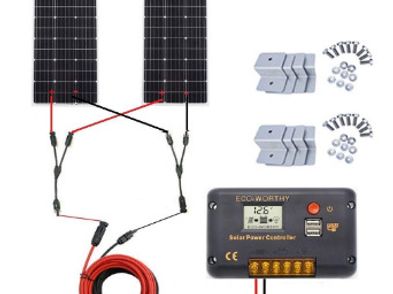

Solar Panel Kit 200W 12V with Charge Controller

Condition: New

Shipping Nationwide 1 to 2 working days
Collection to be arranged
Cash on Delivery COD (Pay on Delivery )

Condition: 100% New in Box

Item:B251


Description:

This 100W Mono solar panel with its high power output and the robust design the right solution for a stand-alone system. Service life over 25 years. shock resistance 2400pa and wind 5400pa snow loads.
Wide application: Perfect for on-grid, off-grid solar panel system, caravan, RV, boat, Green house solar panel system.
Multiple protection: 20A solar charger controller with build-in short-circuit protection,open-circuit protection,reverse protection,over-load protection.
Easy Installation: With pre-drilled hole,can be install on the roof or on the earth by adjustable solar panel tilt mount brackets. Each solar panel comes with 90cm 12awg cable with MC4 Male/Female quick connectors.Connect order please connect 12v/24v battery with controller first, it will automatically to 12v/24v depends on battery voltage.


Specification:

Rated power：100W
Maximum/Peak Voltage(Vmp)：18V / Open Circuit Voltage(Voc)：22.41V
Maximum/Peak Current(Imp)：5.56A
Short circuit current (Isc)：6.67A
Output Tolerance：±3%
Temperate coefficient of Isc：(010+/- 0.01 ) %/℃ / Temperate coefficient of Voc：- (0.38 +/-0.01 ) %/℃
Temperate coefficient of power Voc：-0.47%/℃ / Temperature range：-40℃to +80℃
Frame：Heavy duty aluminum
Kind of glass and its thickness：Low Iron, high transparency tempered glass of 3.2mm
Size:39.8x20.1x1.4 in(1010mm*510mm*35mm) / Weight:18.96lbs(8.6kg)

20A Solar Charge Controller
Battery voltage :12V/24V auto
Charge current :20A / Discharge current :20A
Max Solar input :<50V / Charge voltage :13.7V
Discharge stop :10.7V
Discharge reconnect :12.6V
USB output :5V/2A
Self-consume : <15mA
Operating temperature :-20~+60 ℃
Size/Weight :138*85*30mm /150g
Install hole size :124*50mm
