Qubino - Flush 2 relays Z-wave+ with consometer for home automation

1 x available in stock (B29)

Collection is available in the Kilkenny Area
or
Nationwide Delivery for €6 extra

Description >>>

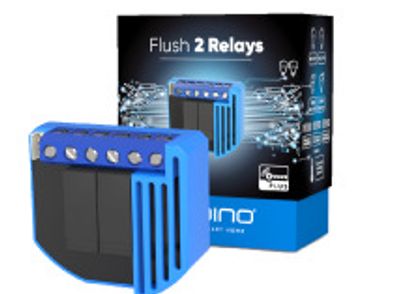

Qubino ZMNHBD1 - The most versatile Z-wave 2 charge ON/OFF module

Thanks to this Z-wave + commutator micromodule, you will be able switch two items of electrical equipment - such as a light, an electric socket, an oven, a washing machine, an electric radiator, and more - on and off.

You will be able to do this from your domotic box, as well as from a local switch. A switch can be connected for each item of equipment.

The Qubino ZMNHBD1 micromodule is the updated version of the ZMNHBA2 micromodule, integrating the latest Z-Wave chip + offering an improved radio range and faster communication.

This module is economical and ecological: its own energy consumption is under 0.4W and it permanently measures the instantaneous energy used (in Watts) and the total consumption (in kWh) of the items of equipment that it controls.

The energy consumed by the electrical items may in this way be stored on a compatible domotic box, allowing you to monitor your energy consumption.

This is not all, however. This model also has an entry that connects to a temperature gauge, enabling it to manage heating, ventilation and air-conditioning systems, among others, very efficiently.

Finally, the QUBINO brand is committed to ensuring the quality and durability of its products: it has carefully selected high-performance components such as the OMRON relay.

The module has also been subject to numerious quality control tests to guarantee maximum durability (sufficiently resistant to function at temperatures ranging from -10°C to 40°C).

Its compact size and the ability to use any type of current (alternative or direct) make it very easy to install.

Features
Controls two lights/electrical items remotely
Installed behind an existing switch
ON/OFF function
Integrated Z-Wave 500 series chip (Z-Wave+)
Communication is 250% faster than standard Z-Wave devices
The smallest 2-output module in the world
Box specially designed for simple installation (the cables are easy to connect), tested by professional electricians
Very low consumption of less than 0.4W
Operating temperature of -10°C to 40 C°
Analog temperature gauge connector
Electrical consumption measurement
1 binary input for connecting an additional electrical device such as a sensor, a button or a flip-flop switch, and so on.
​

Technical characteristics
Power supply: 110 - 230 VAC ±10% 50/60Hz, 24-30VDC
Electrical consumption: 0.4W
AC nominal output current (resistive load): 2 X 4A/ 230VAC
DC nominal output current (resistive load): 2 X 4A/ 30VDC
AC output circuit power (resistive load): 2 X 920W (230VAC)
DC output circuit power (resistive load): 2 X 96W (24VDC)
Precision of energy measurement: P=0-200W, +/-2W; P>200W, +/-3%
Radio frequency: 868.42MHz, Z-Wave
Range: up to 30 m inside (depending on surrounding materials)
Numerical temperature sensor measuring range (sensor sold separately): -50 ~ 125°C
Operating temperature: -10 ~ 40°C
Space required for installation: Ø ≥ 60mm
Dimensions (L x H x D): 41.8 x 36.8 x 16.9mm
Weight: 25g
Certifications: CE, RoHs
