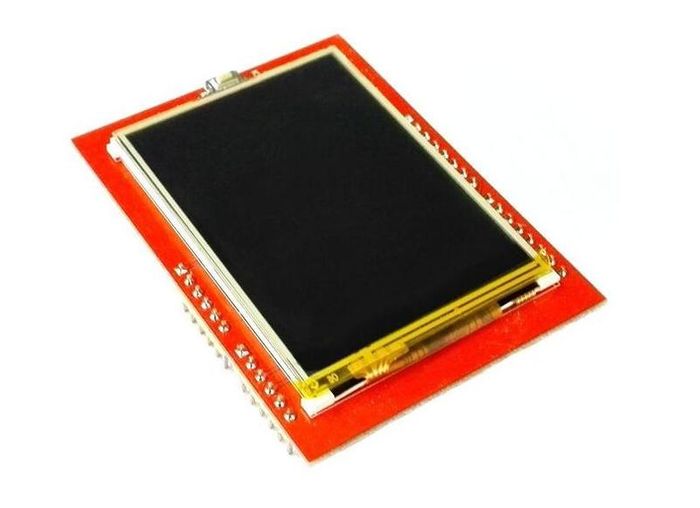

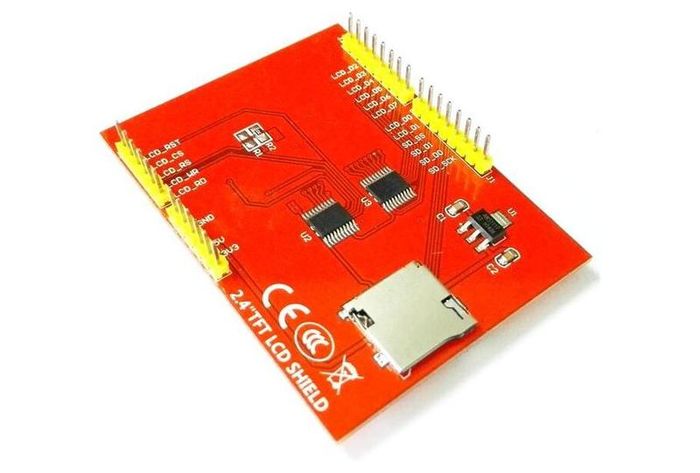

2.4" TFT Touch LCD Screen Module For Arduino

Condition: New

No wiring, no soldering! Simply plug it in and load up our library - you'll have it running in minutes! Works best with UNO/Duemilanove/Diecimila.

Description:

Spice up your project with a beautiful large touchscreen display shield with built in microSD card connection. This TFT display is big (2.4" diagonal) bright (4 white-LED backlight) and colourful (18-bit 262,000 different shades)! 240x320 pixels with individual pixel control. As a bonus, this display has a resistive touchscreen attached to it already, so you can detect finger presses anywhere on the screen.

Technical Details:

2.4" diagonal LCD TFT display
240x320 resolution, 18-bit (262,000) colour
spfd5408 controller with built in video RAM buffer
8 bit digital interface, plus 4 control lines
Uses digital pins 5-13 and analog 0-3. That means you can use digital pins 2, 3 and analog 4 and 5. Pin 12 is available if not using the microSD
Works with any '328 or Mega (Leonardo not supported yet)
5V compatible! Use with 3.3V or 5V logic
Onboard 3.3V 300mA LDO regulator
4 white LED backlight. On by default but you can connect the transistor to a digital pin for backlight control
4-wire resistive touchscreen


Also is available 3.9" 14EUR
