2400W 220V 40A MPPT 3Kva Solar Pure Sine Wave Inverter 50Hz Off Grid Inverter 24V Battery Charger ATS

Condition: New

2400W 220V 40A MPPT 3Kva Solar Pure Sine Wave Inverter 50Hz Off Grid Inverter 24V Battery Charger ATS


2.4KW pure Sine wave inverter for House, boat, camper van, truck, running electrical appliances from 24V batteries or 2 x 12V batteries

Inverter has Automatic transfer switch so it switches to grid power when battery is low or appliance is using more than 2400W of power
batteries can be recharged from the grid 220V or from the solar panels.

Ideal for off grid applications where 220V is needed.

Inverter allows to run many appliances like microwave oven, kettle, hair dryer, corded power tools, laptop, TV and many other appliances

3KVA 3000W 24V Pure Sine Wave Inverter +40A-MPPT Solar Charger + 25A Battery Charger
Max Battery DC Volt 33V
Built-in EQUALIZATION Charge Max 31.5V
Fuse Protection (Against DC Reverse Polarity)
MPPT-40A Solar + UTILITY 25A Charge
Works With 220~240Vac Load Only
Works With 24v battery system only
Dual priority operation selectable: AC vs. DC mode
Support frequency 50hz or 60hz
Adjustable AC input voltage 90~280VAC
Supports 50hz or 60hz via LCD program
USB comm port
Pure sine wave inverter

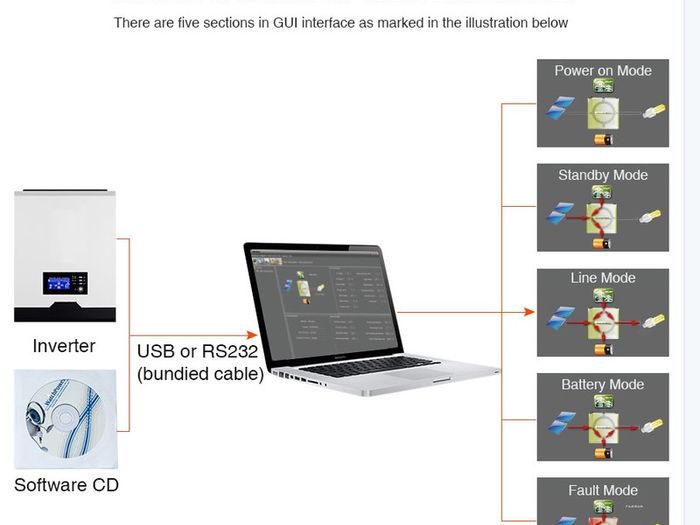

Monitoring software

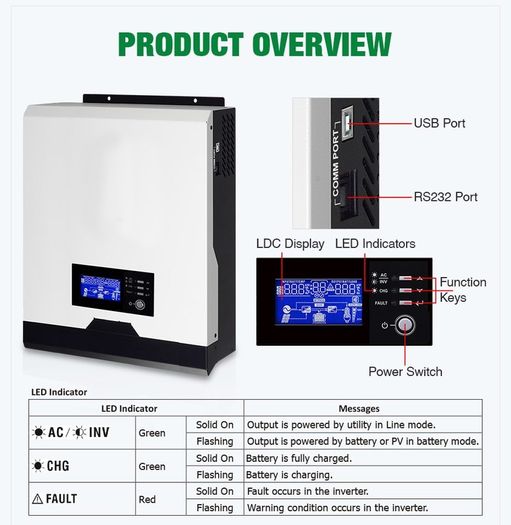

Programmable LCD with menu
Built-in alarms and protections
Intelligent battery charging control
RS485 Modbus data Port
CE, EMC certified


Rated Power 3000VA / 2400W
INPUT Voltage 230 VAC
Selectable Voltage Range 170-280 VAC (For Personal Computers) 90-280 VAC (For Home Appliances)
Frequency Range 50 Hz/60 Hz (Auto sensing)
OUTPUT AC Voltage Regulation (Batt. Mode) 230VAC ± 5%
Surge Power 6000VA
Efficiency (Peak) 90% ~ 93%
Transfer Time 10 ms (For Personal Computers) 20 ms (For Home Appliances)
Waveform Pure sine wave
Battery Voltage 24 VDC
Floating Charge Voltage 27 VDC
Overcharge Protection 31 VDC
SOLAR CHARGING & AC CHARGING

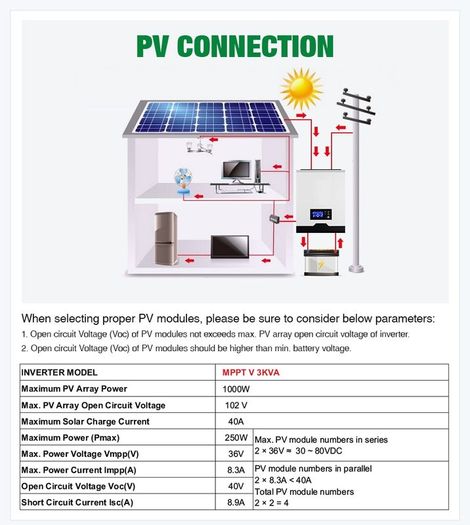

Solar Charger type MPPT
Maximum PV Array Open Circuit Voltage 102 VDC
Maximum PV Array Power 1200 W
Maximum Solar Charge Current 40A
Maximum AC Charge Current 25A
Dimension, D x W x H (mm) 88 x 257.6 x 320
Net Weight (kgs) 5.4kg
Communication Interface USB/RS232
Humidity 5% to 95% Relative Humidity(Non-condensing)
Operating Temperature -10°C - 50°C
Storage Temperature -15°C - 60°C


Just text me if you have any questions.

Delivery anywhere in Ireland is 19.95eur
