Description

Condition: New

The transceiver is a micro-miniature multiband FM transceiver with extensive receive frequency coverage, providing local-area two-way amateur communications along with unmatched monitoring capability
Feature
- Broadcast FM radio receiver (65-108Mhz)
- Alarm and built-in LED flashlight
- Max 20 channels
- Time count down (0.5 / 1hr / ... / 8hrs)
- Voice prompt
- VOX (voice activated transmission)
- 50 CTCSS tone / 104 DCS code / nonstandard tone available
- Tail tone elimination
- Battery saving
- Width / Narrow band selection
- SOS call notice
- PC programming (programming cable not included)

Frequency Range UHF: 400-470MHz
Channel No. 20
Frequency Stability ±2.5ppm
Step Frequency 12.5 / 25Kz
Antenna Impedance 50Ω
Operating Voltage DC 3.7V
Work Temperature -20C to +60C
Battery Capacity H-1500mAH (Li-ion battery)
Battery Life About 12 Hours
Dimension W x H x D 108 x 55 x 21 mm including antenna
Weight 99g
Transmitter
Output power 0.5W / 1W
Modulation Mode 16kΦF3E / 11kΦF3E
Maximum deviation ≤5kHz(Wide) /≤2.5kHz(Narrow)
Spurious Radiation ≤7.5μW
Adjacent Ch. power ≤-65dB(Wide) / ≤-60dB(Narrow)
Audio Distortion < 5%
SNR ≥ -45dB / ≥ -40dB
CTCSS/DCS Frequency deviation (W/N Band) 0.7±0.1kHz(Wide) / 0.4±0.1kHz(Narrow)
Intermediation sensitivity 8-12mV
Transmitting Current ≤ 1000mA
Receiver
Sensitivity < 0.25μ V (12dB SINAD)
Audio Power 1W
Inter modulation Interference Resistance ≥ 65dB (W) , ≥ 60dB (N)
Adjacent channel Selectivity (W/N Band) ≥ 65dB (W) , ≥ 55dB (N)
Audio Distortion 5%
Receiving current ≤ 380 mA

Package Include:

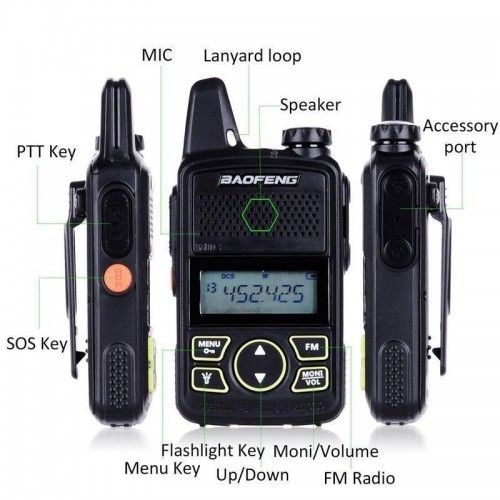

1 x Baofeng T1 Mini Walkie Talkie
1 x 3.7V 1500mah Original Baofeng Li-ion Battery Pack
1 x Antenna 136-174/400-470Mhz
1 x Hand Strap
1 x Belt Clip
1 x ENG Manual
1 x Desktop Charger (100V-240V)
1 x PTT Earpiece for free
