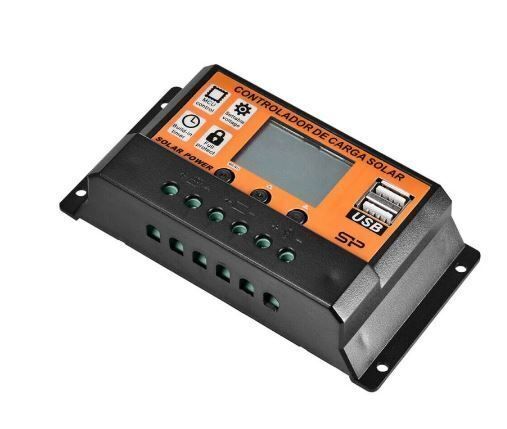

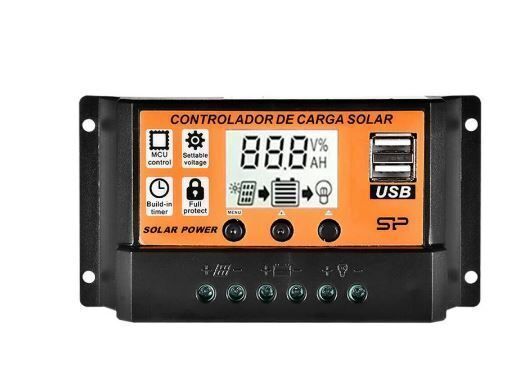

Dual USB Solar Charge Controller 12V & 24V

Advanced maximum power point tracking technology (MPPT/PWM), the efficiency is not less than 99.5%. High quality components improve system performance, and the maximum conversion efficiency is 98%. Super fast tracking speed and guarantee tracking efficiency.

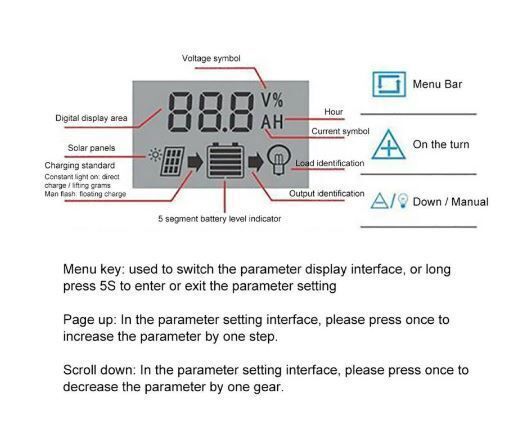

- Large-screen LCD display, charge and discharge current display, cumulative power generation and discharge power query, temperature display, light control delay control; adjustable charging and discharging parameters, with shutdown memory and other functions.

- Dual USB output, the maximum current is 2.5A. Equipped with all necessary devices, system control parameters are adjustable, easy to set and operate. Built-in overheating, overcurrent, short circuit, open circuit, fault clearing, automatic recovery controller. Two-way MOS tube anti-flow circuit, high power charging mode, ultra-heat.

-Built-in short circuit, open circuit, reverse connection, overload. Reverse current, low calorific, with self-recovery function, will not damage the controller.

-Real-time display of temperature, charging current and discharging current. Current mppt autofocus charging tracking, high charging efficiency, charging process does Name: LCD screen solar controller
Voltage: DC 12V/24V
display: LCD Screen
Self consumption: <10ma
Overload: 14.4V/28.8V
Overload Float Charge: 13.7v/27.4V
voltage: 12.6V/25.2V
Over discharge: 10.7v/21.4V
Over discharge recovery: 12.6V/25.2V
Dual USB output: 5V/2A (cell phone charging, iPad, etc.)
Working temperature: -35--60 ℃
12v fits 18v solar panel, 24v fits 36V solar panel
Matching 12.0 volt lead acid battery
Float voltage is set to: 13.6
Recovery discharge voltage is set to: 12.6
Discharge cutoff voltage is set to: 10.7
Matching 12.8 volt lithium iron phosphate battery
The float voltage is set to: 14.6
Recovery discharge voltage is set to: 13.6
Discharge cutoff voltage is set to: 11.0
Matching 11.1 volt lithium battery
The float voltage is set to: 12.6
Recovery discharge voltage is set to: 11.6
Discharge cutoff voltage is set to: 9.6



package included:

1x solar panels battery charge controller
1x user manual
