Description

Hikvision ids-e04huhi-xb mini recorder with ssd ahd/cvi/tvi
Part number: ids-e04huhi-xb
Hikvision
Value range
Dvr 5n1
4 hdtvi/hdcvi/ahd/cvbs video ch
2 ch ip
H. 265 pro/h. 265
Maximum input resolution 8mpx@8fps
Audio over coaxial
Motion detection 2. 0 on all analog channels
Acusense: classification of humans and vehicles in up to 4 channels
Outputs 2k hdmi &amp vga
Essd included 1024 gb
Very light and small size device
Low consumption

Features

Hikvision dvr 5n1 4ch value range
Maximum input resolution 8 mpx
2 channel ip 8 mpx
Integrated essd 1024 gb
Audio over coaxial : low power consumption
Motion detection 2. 0 | acusense

Specs
Brand hikvision
Range value
Video format hdtvi / hdcvi / ahd / cvbs / ip
Video inputs 4 channels bnc (hdtvi / hdcvi / ahd / cvbs)
Hybrid configuration 2 additional ip channels up to 8 mpx
Available bandwidth 96 mbps
Video outputs 1 hdmi 2k and 1 vga, simultaneous
Display resolution hdmi: 2560x1440, 1920x1080, 1280x1024, 1280x720 / 60 hz
Vga: 1920x1080, 1280x1024, 1280x720 / 60 hz
Audio inputs audio over coaxial on all bnc input channels
Audio outputs audio output via hdmi output
Audio bit rate 64 kbps
Audio compression g. 711u
Video compression analog channels: h. 265 pro / h. 265
Ip channels: h. 265
Recording resolution 8mpx / 5mpx / 3k / 4mpx / 3 mpx / 1080p/ 720p/ wd1/ 4cif/ cif
Input resolution hdtvi: 8mpx (12. 5~15 fps), 5mpx (12. 5~20 fps), 3k (20 fps), 4mpx (25~30 fps), 1080p (25~30 fps), 720p (25~30 fps)
Hdcvi: 8mpx (12~15 fps), 5mpx (20 fps), 4mpx (25~30 fps), 1080p (25~30 fps), 720p (25~30 fps)
Ahd: 5mpx (20 fps), 4mpx (25~30 fps), 1080p (25~30 fps), 720p (25~30 fps)
Cvbs: pal/ntsc
Main stream coding 8mpx (8 fps), 3k (12 fps),5mpx (12 fps), 4mpx lite (15 fps), 3mpx (18 fps), 1080p/720p/wd1/4cif (25 fps)
Extra stream coding wd1/4cif/cif (25 fps (p), 30 fps (n))
Video bit rate video bitrate adaptable according to scene type
Simultaneous multifunction pentaplex: live, recording, playback, backup and remote access
Alarms does not have
Motion detection motion detection 2. 0 with human and vehicle classification applied in motion detection.
Available on all analog channels.
Intelligent functions acusense, available on up to 4 channels.
Deeplearning based technology for human and vehicle classification with false alarm reduction applied on:
Line crossing, area intrusion, inbound region, outbound region, outbound region
Recording method manual, programmed, motion detection

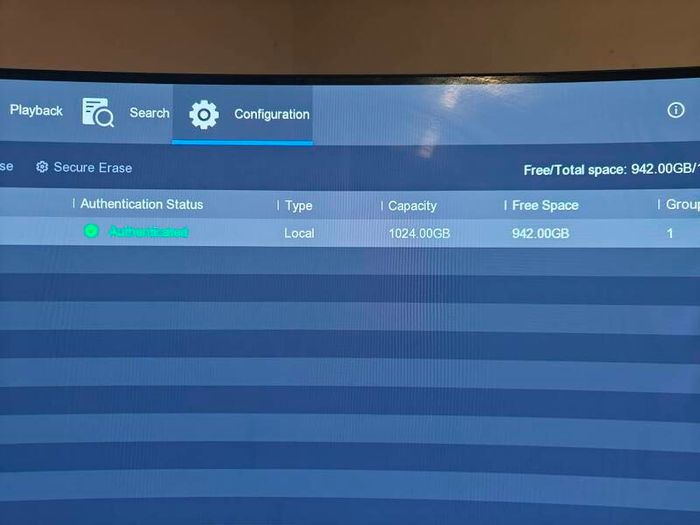

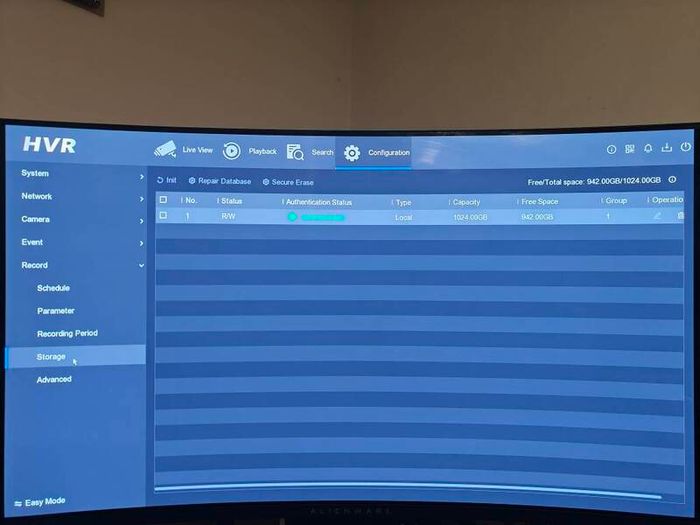

Internal memory 1 essd included - 1024 gb (960 gb available)
Communication 2 x usb 2. 0 (rear side) / 1 x rj45 (ethernet)
Remote connections 32
Remote access web browser, hik-connect smartphone app, pc software ivms-4200 and hik-central
Power dc 12 v, 1 a, ≤ 7. 5 w (with essd)
Operating temperature -10° ~ +45° c
Dimensions 46 (h) mm x 151 (w) mm x 121 (d) mm
Weight ≤ 0. 5 kg (with essd)
