Product Description >>>

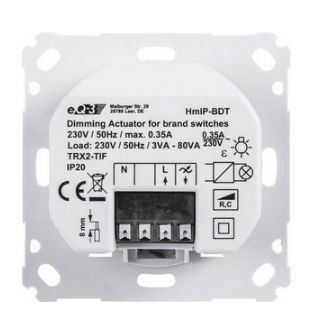

Homematic IP Wireless Dimmer actuator HmIP-BDT

The flush-mounted dimmer actuator enables the dimming of connected bulbs, HV Halogen lamps, NV-Halogen lamps with electronic transformer, dimmable energy saving lamps and dimmable LEDs. Via the Homematic IP App, connected lamps can be dimmed almost continuously in 0.5% steps.

Integration into existing switch series by leveraging existing frame and rocker
With the appropriate adapter in the most common design leading switch manufacturer can be integrated: Busch-Jaeger, Gira, Merten, Berker, young, duwi, Kopp
Reliable operation from a minimum load of 3 VA.

Current consumption 0.35 A
Minimum load: 3 VA
Power consumption Quiet operation: 0.4 W
Dimming process: phase section
Load Type: resistive and capacitive lamp load
Installation: device sockets according to DIN 49073-1

Series Homematic IP
Cloud integration
Alexa (separate hub required), Google Home (separate hub required), Conrad Connect (separate hub required)
Transfer Standard (Smart Home) Manufacturer-specific
Max. switching capacity 80VA
Used at Indoors
IP rating
IP20
Power supply (LOV) mains-powered
Operating voltage 230V
Data transfer (Smart Home) Wireless
Frequency 868 MHz
Max. range
270m
Mounting type Recess-mount
Colour White
Width 71mm
Height 71mm
Depth 37mm
Energy efficiency rating
n.rel.
Dim (W x H x D) 71 x 71 x 37 mm
Signal flow direction Bidirectional (bi)
Hub Required
Product type Dimmer actuator
