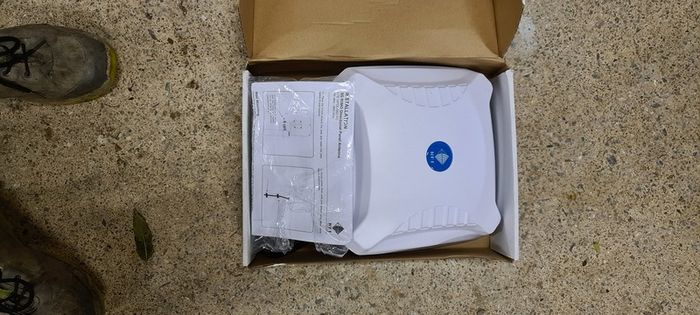

MIMO 3G, 4G & 5G Panel Antenna - 700-3800MHz

https://www.telcoantennas.com.au/rfi-wide-band-mimo-3g-4g-5g-panel-antenna-700-3800

Additional Information
The brilliance of this antenna is its wideband design - operating on three separate bands 698-960MHz, 1710-2700MHz, and 3400-3800MHz

The antenna enclosure effectively looks the same as the second generation “V2” but has been completely redesigned on the inside

Making use of Artificial Magnetic Conductors (AMC) and new registered/patent pending radiator configuration, which is proving to yield exceptional improvements in bandwidth and gain

Specifications / Frequency


Network Compatibility
Yes/No
Gain
Telstra 4GX (700MHz)
compatible
9dBi
Optus 4G+ (700MHz)
compatible
9dBi
Telstra Next-G (850MHz)
compatible
9dBi
Vodafone 4G+(850MHz)* *Please check Vodafone Coverage Map
compatible
9dBi
Optus Regional 3G (900MHz)* *Please check Optus Coverage Map.
compatible
9dBi
Vodafone Regional 3G (900MHz)* *Please check Vodafone Coverage Map.
compatible
9dBi
Telstra/Optus/Voda 4G (1800MHz)
compatible
10dBi
All carriers - Urban/Metro 3G (2100MHz)
compatible
10dBi
Optus 4G/Vivid Wireless (2300MHz)
compatible
10dBi
LTE-TDD Bands 38, 40 (2300MHz)
compatible
10dBi
802.11 b/g/n/ac WiFi (2400MHz)
compatible
10dBi
Telstra 4Gx (2600Mhz)
compatible
10dBi
Optus 4G+ (2600Mhz) compatible 10dBi
Telstra & Optus 5G compatible 11dBi
